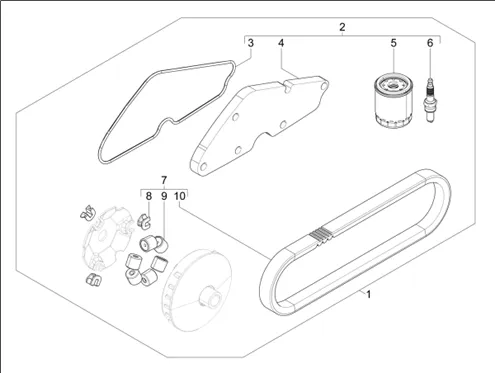

Maintenance : 07.01 COMPLETE WEAR AND MAINTENANCE KIT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1349/Vespa_946_125_E5_13_Anniversario_2026_EMEA_07.01.png)
1 |
680178 - FAISCEAU CABLES More informationQuantity required : 1 |
||||||
|
2 |
1R000622 - MAINTENANCE GROUP (MINIMAL) More informationQuantity required : 1 |
||||||
|
3 |
B018254-GASKET More informationQuantity required : 1 |
||||||
|
4 |
B0182130P-FILTER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/0/6/4/9/img/210649.jpg)
5 |
OIL FILTER MAXI SCOOTER OEM PIAGGIO 125-250-300 X7, X8, X-EVO, X9, X10, BEVERLY, MP3, FLY, VESPA GTS VESPA LX, VESPA PRIMAVERA/APRILIA ATLANTIC, SR MAX/GILERA NEXUS-1A022356 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/1/4/img/67814.jpg)
6 |
SPARK PLUG CR8EB OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-638853 More informationQuantity required : 1 |
||||||
|
7 |
SPARK PLUG "PIAGGIO GENUINE PART" CR8EB COMMON TO ALL THE MAXISCOOTER RANGE -638853 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/3/8/7/1/img/203871.jpg)
8 |
GUIDE/PATIN DE VARIATOR OEM PIAGGIO 125 MEDLEY 2016 > 2020/SR GT COMPACT APRILIA 2021 >, VESPA GTS 2016 >-1A015664 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/7/6/1/9/img/207619.jpg)
9 |
GALET/ROLLER OEM PIAGGIO 125 GTS 2016 >, MEDLEY 2016 > (SOLD INDIVIDUALLY)-CM308503 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/2/7/6/5/img/162765.jpg)
10 |
DRIVE BELT MAXI SCOOTER OEM PIAGGIO 125 MEDLEY 2016 >, 125 VESPA GTS 2016 > APRILIA 125 SR GT COMPACT 2021 >-1A011455 More informationQuantity required : 1 |
