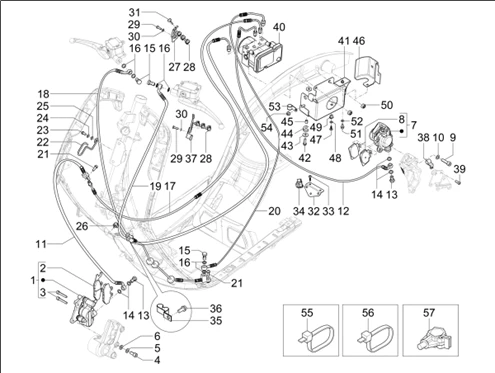

Vehicle Exploded View - VESPA VESPA 946 125 E5+ 13° Anniversario 2026 (EMEA)

	P2R reference	226885
	Maker reference	CM068325

CM068325-PINCE BRAKE FRONT

	P2R reference	90318
	Maker reference	668021

BRAKE PAD OEM PIAGGIO 125-350-500 X10 2012 > FRONT LEFT, 125-300 VESPA GTS 2010 > ABS FRONT (PAIRE)-668021

	P2R reference	68396
	Maker reference	666139

PIVOT/ROD BRAKE CALIPER OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-666139

	P2R reference	209432
	Maker reference	1C006239

SCREW THC M8X20X8. 8 OEM PIAGGIO COMMON A LA RANGE-1C006239

	P2R reference	68491
	Maker reference	709047

WASHER ELASTIC COURBE (8. 4X15X0. 8) OEM PIAGGIO COMMON A TOUTE LA RANGE-709047

	P2R reference	63779
	Maker reference	0030585

WASHER PLATE (8, 4X15X1, 5) OEM PIAGGIO COMMON A LA RANGE-003058

	P2R reference	226886
	Maker reference	CM294809

CM294809-PINCE BRAKE REAR

	P2R reference	204470
	Maker reference	1C006586

BRAKE PAD REAR OEM PIAGGIO 125-300 VESPA GTS 2007 > 2022-1C006586

	P2R reference	178077
	Maker reference	1C004169

1C004169 SCREW

	P2R reference	68491
	Maker reference	709047

WASHER ELASTIC COURBE (8. 4X15X0. 8) OEM PIAGGIO COMMON A TOUTE LA RANGE-709047

	P2R reference	75918
	Maker reference	1C000006

1C000006-HOSE

	P2R reference	226789
	Maker reference	1C007553

1C007553-BRAKE HOSE HECU-REAR CALIPER

	P2R reference	209193
	Maker reference	2B011672R

2B011672R-SPECIAL SCREW

	P2R reference	65723
	Maker reference	127927

GASKET CUIVRE (10X16X1) BRAKE CALIPER OEM PIAGGIO COMMON A TOUTE LA RANGE-127927

	P2R reference	209193
	Maker reference	2B011672R

2B011672R-SPECIAL SCREW

	P2R reference	65723
	Maker reference	127927

GASKET CUIVRE (10X16X1) BRAKE CALIPER OEM PIAGGIO COMMON A TOUTE LA RANGE-127927

	P2R reference	226790
	Maker reference	1C007552

1C007552-HOSE OF BRAKE (UNITE ABS-JONCTION)

	P2R reference	75927
	Maker reference	1C000036

1C000036-CANALIS.

	P2R reference	226791
	Maker reference	1C007551

1C007551-DURIT OF BRAKE REAR-UNITE ABS

	P2R reference	226792
	Maker reference	1C007550

1C007550-HOSE OF BRAKE HYDRAULIQUE FLEX (ABS-JO

	P2R reference	70534
	Maker reference	874554

874554-SCREW FLANGE

	P2R reference	75928
	Maker reference	1C000046

1C000046-CIRCLIPS

	P2R reference	70534
	Maker reference	874554

874554-SCREW FLANGE

	P2R reference	63841
	Maker reference	0069765

WASHER ELASTIC (6. 4X12X0. 5) OEM PIAGGIO COMMON A LA RANGE-006976

	P2R reference	63803
	Maker reference	0061255

WASHER PLATE (6. 4X14X1. 5) OEM PIAGGIO COMMON A LA RANGE-006125

	P2R reference	65967
	Maker reference	231590

CLIPS SPRING (D17) OEM PIAGGIO COMMON A LA RANGE-231590

	P2R reference	75921
	Maker reference	1C000009

1C000009-PATTES

	P2R reference	65790
	Maker reference	179013

179013-SPRING

	P2R reference	70728
	Maker reference	880285

SCREW TORX (5X16) HEAD BOMBEE OEM PIAGGIO COMMON A LA RANGE-880285

	P2R reference	63840
	Maker reference	0069755

WASHER (5, 3X10X0, 5) OEM PIAGGIO COMMON A LA RANGE-006975

	P2R reference	78036
	Maker reference	299071

BUFFER RUBBER OEM PIAGGIO COMMON A LA RANGE-299071

	P2R reference	75516
	Maker reference	1B000263

1B000263-PLATE

	P2R reference	96288
	Maker reference	CM179101

SCREW TORX (5X22. 6) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM179101

	P2R reference	72907
	Maker reference	CM006905

COLIIER PINCE OEM PIAGGIO COMMON A LA RANGE-CM006905

	P2R reference	68392
	Maker reference	666047

666047-CLAMP

	P2R reference	70534
	Maker reference	874554

874554-SCREW FLANGE

	P2R reference	75920
	Maker reference	1C000008

1C000008-PATTES

	P2R reference	69377
	Maker reference	845978

CLAMP MOUNTING WIRING OU HOSE OUVERT OEM PIAGGIO COMMON A LA RANGE-845978

	P2R reference	70481
	Maker reference	873433

SCREW BTR HEAD BOMBEE (6X16) OEM PIAGGIO COMMON A LA RANGE-873433

	P2R reference	226793
	Maker reference	1C007258

1C007258-CALCULATEUR ABS PLEIN

	P2R reference	226794
	Maker reference	1C007548

1C007548-HECU FIXING BRACKET WITH I. P.

	P2R reference	65447
	Maker reference	0186395

SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-018639

	P2R reference	65793
	Maker reference	179575

WASHER PLATE (6. 5X18. 4) OEM PIAGGIO COMMON A LA RANGE-179575

	P2R reference	70896
	Maker reference	939278

939278-BUFFER

	P2R reference	76061
	Maker reference	1C000870

1C000870-SPACER

	P2R reference	226795
	Maker reference	1C007624

1C007624-TYRE S. CHAMBRE

	P2R reference	73358
	Maker reference	CM178603

SCREW TORX (4, 2X13) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178603

	P2R reference	63840
	Maker reference	0069755

WASHER (5, 3X10X0, 5) OEM PIAGGIO COMMON A LA RANGE-006975

	P2R reference	109019
	Maker reference	157716

AGRAPHE/CHEVILLE A EXPENSION OEM PIAGGIO COMMON A LA RANGE-157716

	P2R reference	110629
	Maker reference	709052

709052 NUT

	P2R reference	68890
	Maker reference	830061

SCREW FLANGE TH (5X16) OEM PIAGGIO COMMON A LA RANGE-830061

	P2R reference	63840
	Maker reference	0069755

WASHER (5, 3X10X0, 5) OEM PIAGGIO COMMON A LA RANGE-006975

	P2R reference	67101
	Maker reference	573918

CLAMP MOUNTING WIRING OU HOSE OEM PIAGGIO COMMON A LA RANGE-573918

	P2R reference	149096
	Maker reference	241936

NUT FLANGE (M6) OEM PIAGGIO COMMON A LA RANGE-241936

	P2R reference	65742
	Maker reference	145298

HOSE CLAMP NYLON TYPE RILSAN 180 MM OEM PIAGGIO COMMON A LA RANGE-145298

	P2R reference	66017
	Maker reference	257134

HOSE CLAMP NYLON TYPE RILSAN 4, 8X270MM OEM PIAGGIO COMMON A LA RANGE-257134

	P2R reference	72910
	Maker reference	CM006910

CLAMP CLIPS OEM PIAGGIO COMMON A LA RANGE-CM006910
