Vehicle Exploded View - APRILIA RST 1000 Futura 2001-2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

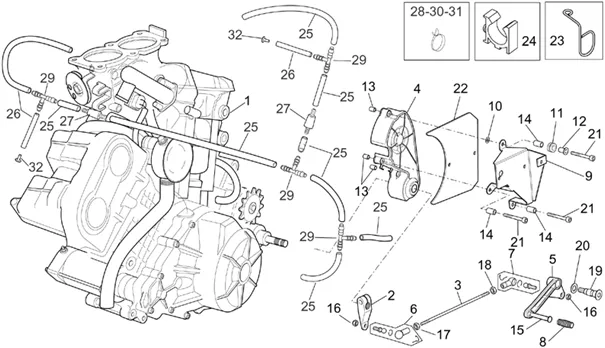

Moteur : 29.36 MOTEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/312/RST_1000_Futura_2001-2003_29.36.PNG)
1 |
|
|||||||||
|
2 |
AP8121354 - BIELLE RENVOI BO?TE; More informationQuantity required : 1 |
|||||||||
|
3 |
AP8121435 - TIGE RENVOI BO?TE DE VITESSES More informationQuantity required : 1 |
|||||||||
|
4 |
Carter pignon, gris |
|||||||||
|
5 |
AP8106747-LEVER BO? TE DE VITESSES More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/6/8/img/71268.jpg)
6 |
ROTULE DE GEAR LEVER (FILTAGE A LEFT) OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA/MOTO-GUZZI-AP8110053 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/8/5/img/72185.jpg)
7 |
ROTULE DE GEAR LEVER (FILETAGE A RIGHT) OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI ET APRILIA-AP8210007 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/2/img/71422.jpg)
8 |
RUBBER BRAKE LEVER REAR OU SELECTEUR OEM PIAGGIO FOR MOTORCYCLE-GUZZI/APRILIA-AP8120912 More informationQuantity required : 1 |
|||||||||
|
9 |
Plaq. fix.carène gche; |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/2/7/img/71927.jpg)
10 |
WASHER PLATE (6. 4X15X1) OEM PIAGGIO COMMON A LA RANGE-AP8152181 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/3/img/71393.jpg)
11 |
RUBBER (7X15) OEM PIAGGIO COMMON A LA RANGE-AP8120405 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/8/5/img/71485.jpg)
12 |
BUSH EN T INNER 5 MM OEM PIAGGIO COMMON A LA RANGE-AP8121795 More informationQuantity required : 3 |
|||||||||
|
13 |
AP8221046 - ENTRETOISE More informationQuantity required : 3 |
|||||||||
|
14 |
AP8121020-SPACER More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/8/1/6/img/46816.jpg)
15 |
ROD OF PEDAL OF BRAKE OEM PIAGGIO APRILIA 1000 RST FUTURA-AP8121434 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/2/img/71812.jpg)
16 |
NUT (M6) OEM PIAGGIO COMMON A LA RANGE-AP8150026 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/8/img/71918.jpg)
17 |
NUT ROD OF SELECTEUR OEM APRILIA COMMON A LA RANGE-AP8152138 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/2/img/71882.jpg)
18 |
NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8150430 More informationQuantity required : 1 |
|||||||||
|
19 |
REAR BRAKE PEDAL PIN "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA ET MOTO-GUZZI -884033 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/1/img/71811.jpg)
20 |
WASHER PLATE (10, 5X21X2) OEM PIAGGIO COMMON A LA RANGE-AP8150020 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/6/img/71816.jpg)
21 |
SCREW BTR (6X55) OEM PIAGGIO COMMON A LA RANGE-AP8150045 More informationQuantity required : 3 |
|||||||||
|
22 |
Plaque; |
|||||||||
|
23 |
AP8221172-GUIDE-CABLE More informationQuantity required : 1 |
|||||||||
|
24 |
AP8201808-GUIDE-CABLE More informationQuantity required : 2 |
|||||||||
|
25 |
AP8144015-HOSE OIL More informationQuantity required : 1 |
|||||||||
|
26 |
AP8144038-FUEL HOSE 6X10 More informationQuantity required : 1 |
|||||||||
|
27 |
AP8104251-VALVE DE RETENUE More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/7/img/71397.jpg)
28 |
CLAMP CLIC VERT (6. 6X11X1) OEM PIAGGIO COMMON A LA RANGE-AP8120446 More informationQuantity required : 12 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/5/6/img/71756.jpg)
29 |
FITTING EN T OEM PIAGGIO COMMON A LA RANGE-AP8144303 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/5/img/71155.jpg)
30 |
CLAMP HOSE (10, 1) OEM PIAGGIO COMMON A LA RANGE-AP8101595 More informationQuantity required : 4 |
|||||||||
|
31 |
AP8102377-CLAMP More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/1/9/img/71419.JPG)
32 |
CAP DE VIDANGE BOX A AIR OEM PIAGGIO COMMON A LA RANGE APRILIA/MOTO GUZZI-AP8120876 More informationQuantity required : 2 |
|||||||||
