Vehicle Exploded View - APRILIA RST 1000 Futura 2001-2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

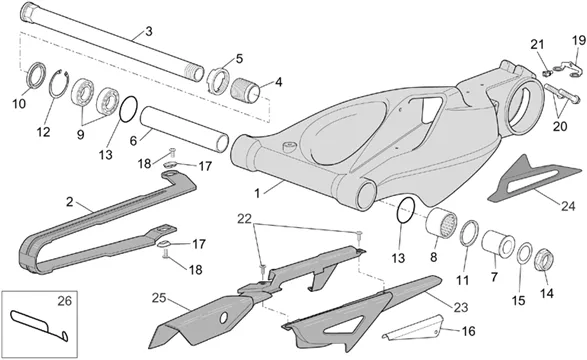

Chassis : 28.09 FOURCHE ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/312/RST_1000_Futura_2001-2003_28.09.PNG)
1 |
AP8146250 - BRAS OSCILLANT FINI; More informationQuantity required : 1 |
||||||
|
2 |
AP8144242 - GALET GUIDE-CHA?NE More informationQuantity required : 1 |
||||||
|
3 |
AP8135923 - PIVOT FOURCHE AR; More informationQuantity required : 1 |
||||||
|
4 |
AP8121200-BUSH DE REGLAGE More informationQuantity required : 1 |
||||||
|
5 |
AP8121201-BUSH PIVOT FORK More informationQuantity required : 1 |
||||||
|
6 |
AP8121202-SPACER INTERNE More informationQuantity required : 1 |
||||||
|
7 |
AP8121203-DOU. INT. ROD FORK More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/8/2/9/img/45829.jpg)
8 |
CAGE A AIGUILLES OEM MOPED SWINGARM OEM APRILIA RSV, CAPONORD, DORSODURO, SHIVER-AP8110078 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/8/3/0/img/45830.jpg)
9 |
BEARING DE ARM DE SUSPENSION OEM PIAGGIO APRILIA 1000 RSV, 750-900 SHIVER, FUTURA, CAPONORD-AP8110079 More informationQuantity required : 2 |
||||||
|
10 |
AP8144006-BUSH D'ETANCHEITE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/9/5/7/3/img/49573.jpg)
11 |
BUSH D'ETANCHEITE SPINDLE OEM MOPED SWINGARM SIDE LEFT OEM APRILIA CAPONORD 1200 2015 > 2017, DORSODURO 750-900-1200 2010 > 2017, RSV4 1000 2009 > 2018-AP8144005 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/7/4/8/img/46748.jpg)
12 |
CLIPS/CIRCLIPS (D = 37) OEM PIAGGIO COMMON A LA RANGE-AP8121204 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/9/5/8/9/img/49589.jpg)
13 |
O-RING 134 OEM MOPED SWINGARM OEM APRILIA CAPONORD, DORSODURO, RSV, SHIVER-AP8144048 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/7/4/7/img/47747.jpg)
14 |
NUT REAR WHEEL OEM APRILIA/MOTO GUZZI COMMON A LA RANGE-AP8125763 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/7/3/5/img/47735.jpg)
15 |
WASHER SPINDLE REAR WHEEL OEM APRILIA COMMON A LA RANGE-AP8125687 More informationQuantity required : 1 |
||||||
|
16 |
AP8121508 - PLA. FIX. TUBE FREIN More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/1/6/8/img/97168.jpg)
17 |
WASHER FOR PATIN GUIDE CHAIN OEM PIAGGIO COMMON A LA RANGE APRILIA-AP8234020 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/4/img/71934.jpg)
18 |
SCREW BTR HEAD BOMBEE (5X12) OEM PIAGGIO COMMON A LA RANGE-AP8152267 More informationQuantity required : 2 |
||||||
|
19 |
Plaquette; |
||||||
|
20 |
AP8152325-SCREW FLANGE More informationQuantity required : 2 |
||||||
|
21 |
AP8121882-GUIDE-CABLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/3/img/71973.jpg)
22 |
SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE MOTO-AP8152339 More informationQuantity required : 2 |
||||||
|
23 |
AP8148021-CASING CHA? NE SUP. BLACK More informationQuantity required : 1 |
||||||
|
24 |
Carter chaîne inf.noir; |
||||||
|
25 |
AP8149487 - CARTER CHA?NE INT.NOIR; More informationQuantity required : 1 |
||||||
|
26 |
Passe-câble |
