Vehicle Exploded View - APRILIA RST 1000 Futura 2001-2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

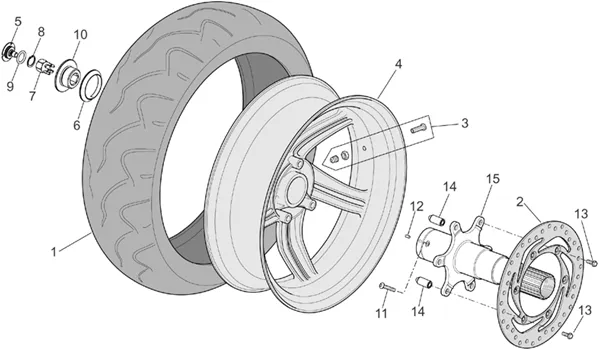

Chassis : 28.39 ROUE AR I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/312/RST_1000_Futura_2001-2003_28.39.PNG)
2 |
AP8113835 - DISQUE FREIN ARRIERE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/9/img/71159.jpg)
3 |
VALVE TUBELESS OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-AP8101744 More informationQuantity required : 1 |
||||||
|
4 |
Roue arrière nue |
||||||
|
4 |
Roue AR; |
||||||
|
5 |
AP8108864-COVER SCREW WHEEL More informationQuantity required : 1 |
||||||
|
5 |
Couvercle vis roue; |
||||||
|
6 |
AP8121450-CTNE WHEEL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/8/2/3/img/46823.jpg)
7 |
ARRET SECURITE SCREW OF REAR WHEEL OEM PIAGGIO APRILIA 1000 RST FUTURA 2001 > 2003-AP8121452 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/8/2/5/img/46825.jpg)
8 |
CLIPS/CIRCLIPS MOUNTING DE WHEEL OEM APRILIA 1000 RST FUTURA 2001 > 2003-AP8121457 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/9/7/2/5/img/49725.jpg)
9 |
O-RING 4075 CAP OIL OEM APRILIA 1000-1100 RSV4-AP8144424 More informationQuantity required : 1 |
||||||
|
10 |
Vis roue |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/5/6/img/50956.jpg)
11 |
SCREW BTR HEAD BOMBEE (6X30) OEM PIAGGIO COMMON A LA RANGE-AP8152128 More informationQuantity required : 1 |
||||||
|
12 |
AP8121451-STUD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/7/img/71947.jpg)
13 |
SCREW FLANGE TH (8X16) OEM PIAGGIO COMMON A LA RANGE-AP8152285 More informationQuantity required : 6 |
||||||
|
14 |
AP8121449 - PIVOT; More informationQuantity required : 3 |
||||||
|
15 |
AP8125806 - MOYEU ARRIERE More informationQuantity required : 1 |
