Vehicle Exploded View - APRILIA RST 1000 Futura 2001-2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

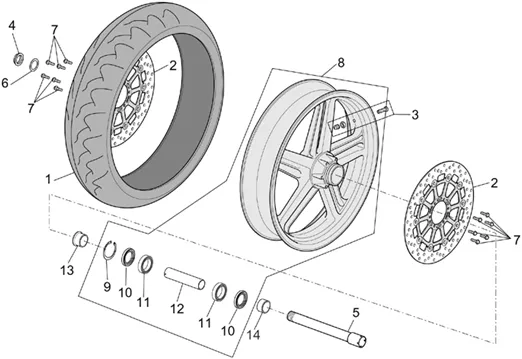

Chassis : 28.38 ROUE AV
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/312/RST_1000_Futura_2001-2003_28.38.PNG)
2 |
AP8113887 - DISQUE FREIN AVANT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/9/img/71159.jpg)
3 |
VALVE TUBELESS OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-AP8101744 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/8/4/img/50984.jpg)
4 |
NUT DE WHEEL OEM APRILIA COMMON A LA RANGE MOTO-AP8152335 More informationQuantity required : 1 |
||||||
|
5 |
AP8125727 - AXE DE ROUE AV More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/7/img/71967.jpg)
6 |
WASHER (25. 2X36X1) WHEEL SPINDLE FRONT OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA-AP8152323 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/8/img/71948.jpg)
7 |
SCREW FLANGE TH (8X20) OEM PIAGGIO COMMON A LA RANGE-AP8152286 More informationQuantity required : 12 |
||||||
|
8 |
AP8108939 - ROUE AV NUE; More informationQuantity required : 1 |
||||||
|
8 |
AP8128005 - ROUE AV NUE More informationQuantity required : 1 |
||||||
|
9 |
AP8125779-BUSH SEEGER More informationQuantity required : 1 |
||||||
|
10 |
OIL SEAL (30X47X7) OEM PIAGGIO COMMON A LA RANGE-AP8125773 More informationQuantity required : 2 |
||||||
|
11 |
AP8125777-BEARING More informationQuantity required : 2 |
||||||
|
12 |
AP8125778 - ENTRETOISE INTERNE More informationQuantity required : 1 |
||||||
|
13 |
Entretoise roue av.d. |
||||||
|
14 |
AP8125885-SPACER WHEEL AV. G. More informationQuantity required : 1 |
