Vehicle Exploded View - APRILIA RST 1000 Futura 2001-2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

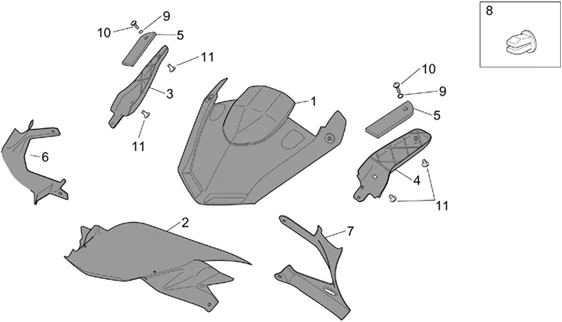

Chassis : 28.12 CARROSSERIE AV. - FERMETURE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/312/RST_1000_Futura_2001-2003_28.12.PNG)
1 |
Fermeture bulle-tabl. bord; |
||||||
|
1 |
Fermeture bulle-tabl. bord; |
||||||
|
2 |
AP8158062 - FERMETURE INF.PHARE AV.; More informationQuantity required : 1 |
||||||
|
2 |
Fermeture inf.phare av.; |
||||||
|
3 |
AP8158160 - FERMETURE CORNET D.; More informationQuantity required : 1 |
||||||
|
3 |
Fermeture cornet d.; |
||||||
|
4 |
AP8158161-LATCH CORNET G. More informationQuantity required : 1 |
||||||
|
4 |
Fermeture cornet g.; |
||||||
|
5 |
AP8144356-RUBBER More informationQuantity required : 2 |
||||||
|
6 |
LATCH PANEL DE EDGE RIGHT OEM PIAGGIO APRILIA 1000 FUTURA-AP8149967 More informationQuantity required : 1 |
||||||
|
6 |
AP8158851 - FERMETURE TABL.BORD D; More informationQuantity required : 1 |
||||||
|
7 |
AP8158852 - FERMETURE TABL.BORD G; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/1/1/img/50811.jpg)
7 |
LATCH PANEL DE EDGE LEFT OEM PIAGGIO APRILIA 1000 FUTURA 2001 > 2003-AP8149968 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/9/1/img/71191.jpg)
8 |
RIVET EN PLASTIQUE CARROSSERIE OEM PIAGGIO COMMON A TOUTE LA RANGE-AP8102671 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/4/4/8/6/img/164486.jpg)
9 |
WASHER PLATE NYLON (10X5. 3X1) OEM PIAGGIO COMMON A LA RANGE-AP8120591 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
10 |
SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298 More informationQuantity required : 2 |
||||||
|
11 |
AP8121250-BUSH More informationQuantity required : 4 |
