Vehicle Exploded View - APRILIA RST 1000 Futura 2001-2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

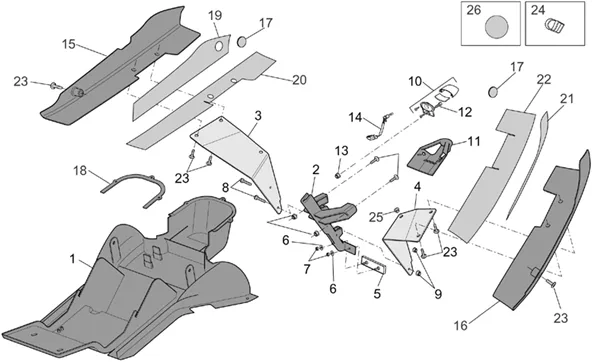

Chassis : 28.19 DESSOUS SELLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/312/RST_1000_Futura_2001-2003_28.19.PNG)
1 |
Fermeture inf. porte-selle |
||||||
|
2 |
AP8126780-DOOR-PLATE BLACK More informationQuantity required : 1 |
||||||
|
3 |
AP8126876 - SUPPORT PORTE-PLAQUE D.; More informationQuantity required : 1 |
||||||
|
4 |
AP8126757 - SUPPORT PORTE-PLAQUE G.; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/8/9/6/img/45896.jpg)
5 |
AP8112916-CATADIOPTRE LAMP REAR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/4/img/71804.jpg)
6 |
WASHER PLATE (4. 3X12X1) OEM PIAGGIO COMMON A LA RANGE-AP8150011 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/9/img/71839.jpg)
7 |
NUT AUTOBLOQUANT/NYLSTOP (M4) OEM PIAGGIO COMMON A LA RANGE-AP8150204 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/6/9/7/img/69697.jpg)
8 |
SCREW FLANGE TH (5X0, 8 L. 28) OEM PIAGGIO COMMON A LA RANGE-855799 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/3/img/71963.jpg)
9 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M5) OEM PIAGGIO COMMON A LA RANGE-AP81523066 More informationQuantity required : 2 |
||||||
|
10 |
AP8124899 - FEU PLAQUE IMM. GRIS More informationQuantity required : 1 |
||||||
|
11 |
Support éclairage plaque; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/9/img/71819.jpg)
12 |
SCREW BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8150050 More informationQuantity required : 1 |
||||||
|
13 |
AP8150114-NUT EPAULE DIAM 6 More informationQuantity required : 1 |
||||||
|
14 |
Câblage lumière plaque; |
||||||
|
15 |
Protection anti-chaleur d.; |
||||||
|
16 |
Protection anti-chaleur g.; |
||||||
|
17 |
AP8121506 - ENTRETOISE ANTI-CHALEUR More informationQuantity required : 2 |
||||||
|
18 |
Joint |
||||||
|
19 |
Panneau anti-chaleur d.sup.; |
||||||
|
20 |
Panneau anti-chaleur d.inf.; |
||||||
|
21 |
Panneau anti-chaleur g.sup.; |
||||||
|
22 |
Panneau anti-chaleur g.inf.; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
23 |
SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/4/0/img/72140.jpg)
24 |
GUIDE CABLE OEM PIAGGIO COMMON A LA RANGE APRILIA/MOTO GUZZI-AP8201727 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/1/img/71401.jpg)
25 |
NUT (M5) WITH INSERT RUBBER OEM PIAGGIO COMMON A LA RANGE DERBI, APRILIA ET MOTO-GUZZI-AP8120531 More informationQuantity required : 2 |
||||||
|
26 |
Décalco protect.; |
