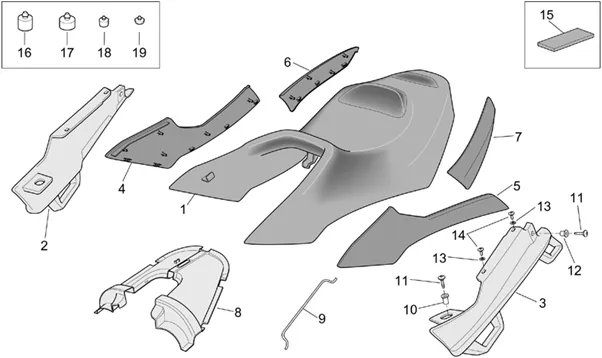

Vehicle Exploded View - APRILIA RST 1000 Futura 2001-2003 APRILIA

Chassis : 28.18 SELLE
Selle
Search
Selle;

1
P2R reference P2R reference
Maker reference Maker reference AP8129258

Selle;

AP8129395 - SELLE;

1
P2R reference P2R reference 48549
Maker reference Maker reference AP8129395

AP8129395 - SELLE;

More information

Quantity required : 1

AP8129396 - SELLE;

1
P2R reference P2R reference 48550
Maker reference Maker reference AP8129396

AP8129396 - SELLE;

More information

Quantity required : 1

Support sup.sacs d.argent;

2
P2R reference P2R reference
Maker reference Maker reference AP8134717

Support sup.sacs d.argent;

AP8158063 - SUPPORT SUP.SACS D.ROUGE;

2
P2R reference P2R reference 51492
Maker reference Maker reference AP8158063

AP8158063 - SUPPORT SUP.SACS D.ROUGE;

More information

Quantity required : 1

Support sup.sacs d.bleu;

2
P2R reference P2R reference
Maker reference Maker reference AP8158077

Support sup.sacs d.bleu;

AP8158859 - RH SIDE CASE SUP.SUP., GREY;

2
P2R reference P2R reference 51877
Maker reference Maker reference AP8158859

AP8158859 - RH SIDE CASE SUP.SUP., GREY;

More information

Quantity required : 1

Support sup.sacs g.argent;

3
P2R reference P2R reference
Maker reference Maker reference AP8134718

Support sup.sacs g.argent;

AP8158064 - SUPPORT SUP.SACS G.ROUGE;

3
P2R reference P2R reference 51493
Maker reference Maker reference AP8158064

AP8158064 - SUPPORT SUP.SACS G.ROUGE;

More information

Quantity required : 1

AP8158078 - SUPPORT SUP.SACS G.BLEU;

3
P2R reference P2R reference 51499
Maker reference Maker reference AP8158078

AP8158078 - SUPPORT SUP.SACS G.BLEU;

More information

Quantity required : 1

LH Side case sup.sup., grey;

3
P2R reference P2R reference
Maker reference Maker reference AP8158860

LH Side case sup.sup., grey;

Flanc av.selle d.argent;

4
P2R reference P2R reference
Maker reference Maker reference AP8158188

Flanc av.selle d.argent;

AP8158213 - FLANC AV.SELLE D.ROUGE;

4
P2R reference P2R reference 51557
Maker reference Maker reference AP8158213

AP8158213 - FLANC AV.SELLE D.ROUGE;

More information

Quantity required : 1

Flanc av.selle d.bleu;

4
P2R reference P2R reference
Maker reference Maker reference AP8158219

Flanc av.selle d.bleu;

Flanc av.selle d.;

4
P2R reference P2R reference
Maker reference Maker reference AP8158861

Flanc av.selle d.;

Flanc av.selle d.

4
P2R reference P2R reference
Maker reference Maker reference AP8168861

Flanc av.selle d.

Flanc av.selle g.argent;

5
P2R reference P2R reference
Maker reference Maker reference AP8158189

Flanc av.selle g.argent;

Flanc av.selle g.rouge;

5
P2R reference P2R reference
Maker reference Maker reference AP8158214

Flanc av.selle g.rouge;

Flanc av.selle g.bleu;

5
P2R reference P2R reference
Maker reference Maker reference AP8158220

Flanc av.selle g.bleu;

Flanc av.selle g.;

5
P2R reference P2R reference
Maker reference Maker reference AP8158862

Flanc av.selle g.;

Flanc av.selle g.

5
P2R reference P2R reference
Maker reference Maker reference AP8168862

Flanc av.selle g.

Flanc arr.selle d.argent;

6
P2R reference P2R reference
Maker reference Maker reference AP8158190

Flanc arr.selle d.argent;

FIANCATINA POST.DX SELLA V.ROS

6
P2R reference P2R reference
Maker reference Maker reference AP8158217

FIANCATINA POST.DX SELLA V.ROS

Flanc arr.selle d.bleu;

6
P2R reference P2R reference
Maker reference Maker reference AP8158221

Flanc arr.selle d.bleu;

FLANC ARR DROIT

6
P2R reference P2R reference
Maker reference Maker reference AP8158863

FLANC ARR DROIT

Flanc arr.selle d.;

6
P2R reference P2R reference
Maker reference Maker reference AP8168863

Flanc arr.selle d.;

Flanc arr.selle d.;

6
P2R reference P2R reference
Maker reference Maker reference AP8168870

Flanc arr.selle d.;

Flanc arr.selle g.argent;

7
P2R reference P2R reference
Maker reference Maker reference AP8158191

Flanc arr.selle g.argent;

Flanc arr.selle g.rouge.;

7
P2R reference P2R reference
Maker reference Maker reference AP8158216

Flanc arr.selle g.rouge.;

Flanc arr.selle g.bleu;

7
P2R reference P2R reference
Maker reference Maker reference AP8158222

Flanc arr.selle g.bleu;

AP8158864 - FLANC ARR GAUCHE

7
P2R reference P2R reference 51878
Maker reference Maker reference AP8158864

AP8158864 - FLANC ARR GAUCHE

More information

Quantity required : 1

AP8168864 - FLANC ARR.SELLE G.;

7
P2R reference P2R reference 53427
Maker reference Maker reference AP8168864

AP8168864 - FLANC ARR.SELLE G.;

More information

Quantity required : 1

Flanc arr.selle g.;

7
P2R reference P2R reference
Maker reference Maker reference AP8168871

Flanc arr.selle g.;

Fermeture inf.porte-selle arr.;

8
P2R reference P2R reference
Maker reference Maker reference AP8149304

Fermeture inf.porte-selle arr.;

AP8134396 - TIGE SUPP. RESERVOIR;

9
P2R reference P2R reference 48927
Maker reference Maker reference AP8134396

AP8134396-ROD SUPP. TANK

More information

Quantity required : 1

AP8121716 - "DOUILLE EN ""T"""

10
P2R reference P2R reference 46925
Maker reference Maker reference AP8121716

AP8121716-" BUSH EN " " T " " "

More information

Quantity required : 2

SCREW BTR HEAD BOMBEE (8X30) OEM PIAGGIO COMMON A LA RANGE-AP8152056

11
P2R reference P2R reference 50943
Maker reference Maker reference AP8152056

SCREW BTR HEAD BOMBEE (8X30) OEM PIAGGIO COMMON A LA RANGE-AP8152056

More information

Quantity required : 4

BUSH EN T (8, 5X10, 7X12) OEM PIAGGIO COMMON A LA RANGE-AP8221128

12
P2R reference P2R reference 72297
Maker reference Maker reference AP8221128

BUSH EN T (8, 5X10, 7X12) OEM PIAGGIO COMMON A LA RANGE-AP8221128

More information

Quantity required : 2

WASHER PLATE (6. 4X15X1) OEM PIAGGIO COMMON A LA RANGE-AP8152181

13
P2R reference P2R reference 71927
Maker reference Maker reference AP8152181

WASHER PLATE (6. 4X15X1) OEM PIAGGIO COMMON A LA RANGE-AP8152181

More information

Quantity required : 4

SCREW BTR HEAD BOMBEE (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152137

14
P2R reference P2R reference 71917
Maker reference Maker reference AP8152137

SCREW BTR HEAD BOMBEE (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152137

More information

Quantity required : 4

GASKET EPONGE ADHESIVE 15X8 OEM PIAGGIO COMMON A LA RANGE-890512

15
P2R reference P2R reference 41728
Maker reference Maker reference 890512

GASKET EPONGE ADHESIVE 15X8 OEM PIAGGIO COMMON A LA RANGE-890512

More information

Quantity required : 1

AP8144569 - GOMMINO

16
P2R reference P2R reference 49767
Maker reference Maker reference AP8144569

AP8144569 - GOMMINO

More information

Quantity required : 3

AP8144568 - GOMMINO

17
P2R reference P2R reference 49766
Maker reference Maker reference AP8144568

AP8144568 - GOMMINO

More information

Quantity required : 2

Caoutchouc appui selle

18
P2R reference P2R reference
Maker reference Maker reference AP8144567

Caoutchouc appui selle

Caoutchouc appui selle

19
P2R reference P2R reference
Maker reference Maker reference AP8144566

Caoutchouc appui selle
