Vehicle Exploded View - APRILIA RST 1000 Futura 2001-2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

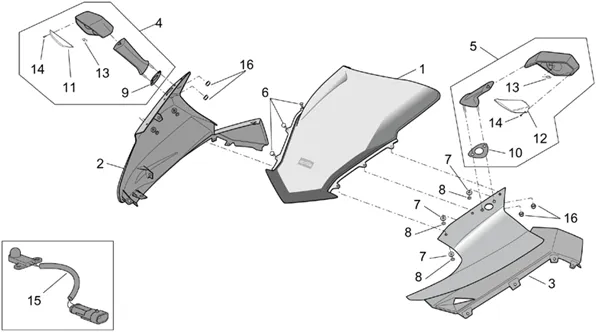

Chassis : 28.11 CARROSSERIE AV. - COUPOLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/312/RST_1000_Futura_2001-2003_28.11.PNG)
1 |
AP8149772 - VITRE COUPOLE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/1/5/3/5/img/51535.jpg)
1 |
WINDSHIELD "PIAGGIO GENUINE PART" APRILIA 125 RST FUTURA 2001>2002 -AP8158159- More informationQuantity required : 1 |
||||||
|
1 |
Vitre coupole |
||||||
|
2 |
AP8149969 - AVANT CARENE D.ARGENT; More informationQuantity required : 1 |
||||||
|
2 |
AP8158056 - AVANT CARENE D.ROUGE; More informationQuantity required : 1 |
||||||
|
2 |
AP8158070 - AVANT CARENE D.BLEU; More informationQuantity required : 1 |
||||||
|
2 |
AP8158843 - AVANT CARENE D.GRIS; More informationQuantity required : 1 |
||||||
|
2 |
AP8168850 - AVANT CARENE More informationQuantity required : 1 |
||||||
|
2 |
AP8168866 - AVANT CARENE D.BLEU; More informationQuantity required : 1 |
||||||
|
3 |
AP8149964 - AVANT CARENE G.ARGENT; More informationQuantity required : 1 |
||||||
|
3 |
AP8158057 - AVANT CARENE G.ROUGE; More informationQuantity required : 1 |
||||||
|
3 |
AP8158071 - AVANT CARENE G.BLEU; More informationQuantity required : 1 |
||||||
|
3 |
AP8158844 - AVANT CARENE G.GRIS; More informationQuantity required : 1 |
||||||
|
3 |
Avant carène |
||||||
|
3 |
AP8168867 - AVANT CARENE G.BLEU; More informationQuantity required : 1 |
||||||
|
4 |
Rétroviseur d.argent; |
||||||
|
4 |
Rétroviseur d.rouge; |
||||||
|
4 |
Rétroviseur d.v.bleu; |
||||||
|
4 |
Rétroviseur d.v.noir |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/3/5/7/img/45357.jpg)
5 |
MIRROR- LEFT SILVER "PIAGGIO GENUINE PART" APRILIA 1000 RST FUTURA -AP8104360 More informationQuantity required : 1 |
||||||
|
5 |
AP8104369 - RETROVISEUR G.ROUGE.; More informationQuantity required : 1 |
||||||
|
5 |
AP8104371 - RETROVISEUR G.V.BLEU; More informationQuantity required : 1 |
||||||
|
5 |
Rétroviseur g.v.noir |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/5/0/img/71750.jpg)
6 |
RIVET MOUNTING FAIRING OEM PIAGGIO APRILIA 50-125 RS, TUONO, 1000 CAPONORD, RSV-2, ATLANTIC, SCARABEO-AP8144109 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/8/1/img/71181.jpg)
7 |
RUBBER DE FAIRING OEM PIAGGIO COMMON A LA RANGE APRILIA-AP8102504 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/8/img/71888.jpg)
8 |
WASHER ELASTIC (5) OEM PIAGGIO COMMON A TOUTE LA RANGE-AP8150450 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/3/6/2/img/45362.jpg)
9 |
GASKET RIGHT MIRROR OEM APRILIA 1000 RST FUTURA 2001 > 2003-AP8104378 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/3/6/3/img/45363.jpg)
10 |
GASKET LEFT MIRROR OEM APRILIA 1000 RST FUTURA 2001 > 2003-AP8104379 More informationQuantity required : 1 |
||||||
|
11 |
AP8127217 - GLACE CLIGN. AV D More informationQuantity required : 1 |
||||||
|
12 |
AP8127218 - GLACE CLIGN. AV G More informationQuantity required : 1 |
||||||
|
13 |
Lamp |
||||||
|
14 |
AP8127221 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/7/2/img/71572.jpg)
15 |
SENSOR/DETECTEUR DE TEMPERATURE AIR OEM PIAGGIO COMMON A LA RANGE APRILIA ET MOTO GUZZI-AP8124936 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
16 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 2 |
