Vehicle Exploded View - APRILIA RST 1000 Futura 2001-2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

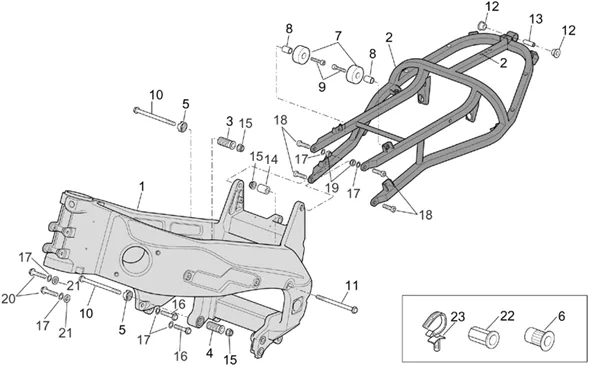

Chassis : 28.01 CHASSIS I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/312/RST_1000_Futura_2001-2003_28.01.PNG)
1 |
AP8146273 - CHASSIS FINI; More informationQuantity required : 1 |
||||||
|
2 |
AP8146247 - ACCROCHE-SELLE; More informationQuantity required : 1 |
||||||
|
3 |
AP8121996-BUSH DE REGLAGE SUP. More informationQuantity required : 1 |
||||||
|
4 |
AP8121997-BUSH DE REGLAGE INF. More informationQuantity required : 1 |
||||||
|
5 |
AP8121995-BUSH FIX. ENGINE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/8/7/img/71187.jpg)
6 |
RIVET PLASTIQUE FILETE (M6) OEM APRILIA COMMON A LA RANGE-AP8102544 More informationQuantity required : 19 |
||||||
|
7 |
SPACER RUBBER DE TANK OEM MOTO GUZZI COMMON A LA RANGE-AP8201124 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/6/5/img/71465.jpg)
8 |
SPACER (19X12X8. 3) OEM PIAGGIO COMMON A LA RANGE APRILIA-AP8121455 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/2/img/71842.jpg)
9 |
SCREW BTR (8X35) OEM PIAGGIO COMMON A LA RANGE-AP8150236 More informationQuantity required : 2 |
||||||
|
10 |
AP8152317-SCREW FLANGE More informationQuantity required : 2 |
||||||
|
11 |
Vis bride |
||||||
|
12 |
AP8144423-RUBBER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/3/4/img/46934.jpg)
13 |
AP8121764 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
14 |
AP8121998 - ENTRETOISE SUP.MOT.; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/0/img/71960.jpg)
15 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-AP8152301 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/5/img/71965.jpg)
16 |
SCREW FLANGE TH (10X35) OEM PIAGGIO COMMON A LA RANGE-AP8152318 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/5/6/img/71856.jpg)
17 |
WASHER ELASTIC (D10. 4) OEM PIAGGIO COMMON A LA RANGE-AP8150292 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/8/7/img/50887.jpg)
18 |
SCREW BTR (10X30) OEM PIAGGIO COMMON A LA RANGE-AP8150469 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/5/img/71885.jpg)
19 |
NUT AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-AP8150436 More informationQuantity required : 2 |
||||||
|
20 |
AP8152325-SCREW FLANGE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/7/5/9/img/46759.jpg)
21 |
SPACER FRONT LEFT ENGINE OEM MOTO-GUZZI VERSION ETV-AP8121254 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/0/5/img/71205.jpg)
22 |
INSERT FILETEE ON FRAME OEM PIAGGIO COMMON A LA RANGE MOTO-AP8102902 More informationQuantity required : 2 |
||||||
|
23 |
AP8221310-GUIDE-CABLE More informationQuantity required : 1 |
