Vehicle Exploded View - APRILIA RST 1000 Futura 2001-2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

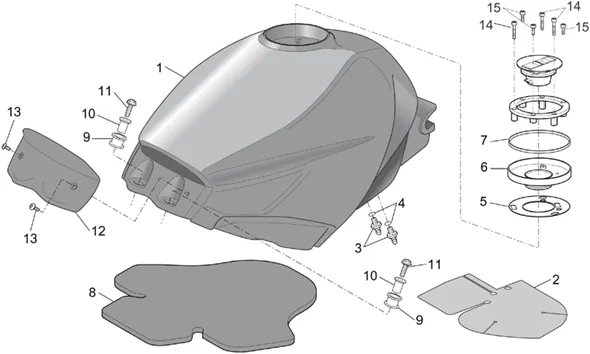

Chassis : 28.17 RÉSERVOIR ESSENCE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/312/RST_1000_Futura_2001-2003_28.17.PNG)
1 |
Réservoir essence argent; |
||||||
|
1 |
Réservoir essence peint rouge; |
||||||
|
1 |
AP8158069 - RESERVOIR ESSENCE PEINT BLEU; More informationQuantity required : 1 |
||||||
|
1 |
AP8158842 - RESERVOIR ESSENCE PEINT NOIR More informationQuantity required : 1 |
||||||
|
1 |
AP8168849 - RESERVOIR NOIR More informationQuantity required : 1 |
||||||
|
1 |
AP8168865 - RESERVOIR ESSENCE PEINT BLEU; More informationQuantity required : 1 |
||||||
|
2 |
AP8117179 - PANN.THERMOFUGE RES.; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/7/8/0/2/img/37802.jpg)
3 |
INSERT FUEL TANK OEM APRILIA/MOTO GUZZI COMMON A LA RANGE-2B001203 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/4/img/71424.jpg)
4 |
O RING OF CANALISATION FUEL OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-AP8120965 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/1/img/71421.jpg)
5 |
FUEL TANK GASKET "PIAGGIO GENUINE PART" APRILIA 750-900 SHIVER, 1000 CAPONORD, RSV-2/MOTO-GUZZI 750 BREVA, DAYTONA, 1100 V11, SPORT -AP8120894- More informationQuantity required : 1 |
||||||
|
5 |
AP8144351-GASKET FUEL TANK More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/8/6/img/71186.jpg)
6 |
CUVE DE CAP DE RESEVOIR FUEL OEM PIAGGIO APRILIA 1000 RSV-2, FALCO, FUTURA, TUONO, CAPONORD, 250 RS, 650 PEGASO-AP8102535 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/0/img/71420.jpg)
7 |
GASKET OF BUSH OF CAP TANK OEM PIAGGIO APRILIA 750-900 SHIVER, 1000 CAPONORD, RSV-2/MOTO-GUZZI 750 BREVA, DAYTONA, 1100 V11, SPORT-AP8120893 More informationQuantity required : 1 |
||||||
|
8 |
AP8117127 - PANN.INSONORIS.RES.; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/5/7/img/71757.jpg)
9 |
RUBBER OEM PIAGGIO COMMON A LAGAMME-AP8144328 More informationQuantity required : 2 |
||||||
|
10 |
AP8121421-" BUSH EN " " T " " " More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/4/img/71944.jpg)
11 |
SCREW FLANGE TH (6X30) OEM PIAGGIO COMMON A LA RANGE-AP8152281 More informationQuantity required : 2 |
||||||
|
12 |
Couvercle réservoir; |
||||||
|
12 |
AP8149963 - COUVERCLE RESERVOIR; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/6/1/img/50961.jpg)
13 |
SCREW BTR HEAD BOMBEE (5X10) OEM PIAGGIO COMMON A LA RANGE-AP8152171 More informationQuantity required : 2 |
||||||
|
14 |
SCREW BTR (5X30) OEM PIAGGIO COMMON A LA RANGE-AP8150453 More informationQuantity required : 3 |
||||||
|
15 |
AP8150454-SCREW More informationQuantity required : 3 |
