Vehicle Exploded View - APRILIA RST 1000 Futura 2001-2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

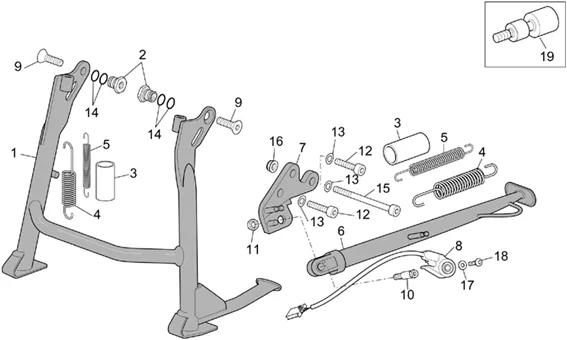

Chassis : 28.04 BÉQUILLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/312/RST_1000_Futura_2001-2003_28.04.PNG)
1 |
AP8146278 - BEQUILLE CENTRALE; More informationQuantity required : 1 |
||||||
|
2 |
884169-BRACKET CAVALLETTO CENTR More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/8/5/img/71185.jpg)
3 |
PROTECTOR SPRING DE SIDE STAND OEM PIAGGIO COMMON A LA RANGE-AP8102524 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/0/2/img/72302.jpg)
4 |
SPRING EXTERNE RAPPEL STAND (GROS SPRING) OEM PIAGGIO COMMON A LA RANGE-AP8221197 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/8/4/1/img/46841.jpg)
5 |
SPRING DE STAND INTRIEUR SIDE OEM APRILIA 50 RX 1995 > 2004-AP8121482 More informationQuantity required : 2 |
||||||
|
6 |
Béquille latérale; |
||||||
|
6 |
Béquille latérale; |
||||||
|
7 |
Plaque béquille; |
||||||
|
7 |
Plaque béquille; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/6/8/7/img/69687.jpg)
8 |
CONTACTEUR DE STAND OEM PIAGGIO APRILIA ATLANTIC 125-250-300-400-500, SCARABEO 500, 1000 RSV-2, FUTURA, CAPONORD, TUONO V2, FALCO, 50-125 RS/MOTO GUZZI 750 BREVA, NEVADA-00N05700601 More informationQuantity required : 1 |
||||||
|
9 |
AP8150492 - VIS FHC More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/0/3/img/71503.jpg)
10 |
SCREW MOUNTING SIDE STAND OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-AP8121994 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/0/7/img/71907.jpg)
11 |
NUT DE SIDE STAND (10X1, 25) OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-AP8152001 More informationQuantity required : 1 |
||||||
|
12 |
AP8150196-SCREW More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/5/6/img/71856.jpg)
13 |
WASHER ELASTIC (D10. 4) OEM PIAGGIO COMMON A LA RANGE-AP8150292 More informationQuantity required : 3 |
||||||
|
14 |
AP8220299 - JOINT TORIQUE More informationQuantity required : 4 |
||||||
|
15 |
Vis |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/0/img/71960.jpg)
16 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-AP8152301 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/4/img/71834.jpg)
17 |
WASHER PLATE (6, 6X18X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8150179 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/7/img/71917.jpg)
18 |
SCREW BTR HEAD BOMBEE (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152137 More informationQuantity required : 1 |
||||||
|
19 |
Tige |
