Vehicle Exploded View - GILERA FUOCO 500 E3 2007-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

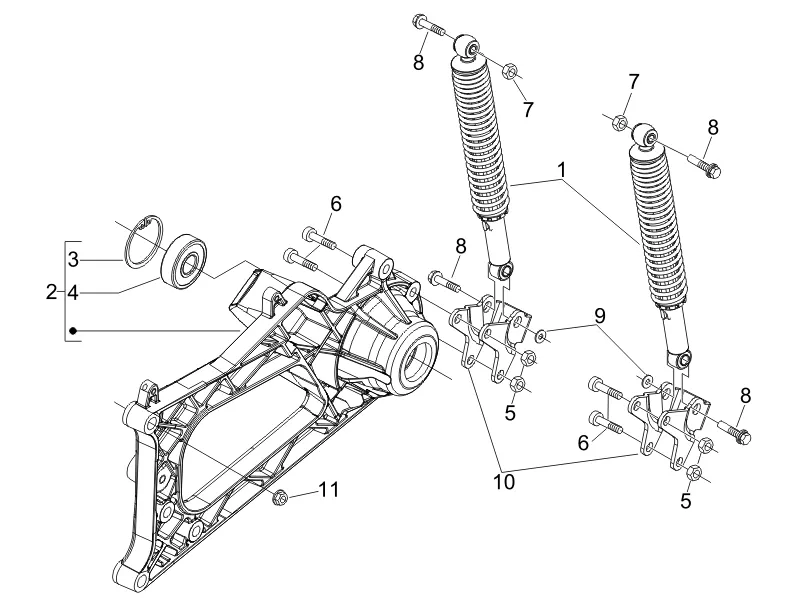

Suspensions - roues : 04.10 SUSPENSION ARRIÈRE - AMORTISSEUR/S
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/173/Fuoco_500_E3_2007-2013-221.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/4/3/8/img/140438.jpg)
1 |
REAR SHOCK ABSORBER OEM PIAGGIO 400 MP3 2007, 500 MP3 2010 > > 2020/GILERA 500 FUOCO 2007 >-1C003545R5 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/4/7/img/65847.jpg)
2 |
ARM DE SUSPENSION REAR OEM PIAGGIO 400-500 MP3 2007 >, BEVERLY 2005 >, 400 X8 2004 > 2006, X-EVO 2007 >/APRILIA 400-500 SCARABEO 2008 >/GILERA 500 FUOCO 2007 >-1A002350 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/2/5/img/63825.jpg)
3 |
CLIPS/CIRCLIPS (47X50. 5X1. 75) OEM PIAGGIO COMMON A TOUTE LA RANGE-006647 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/4/6/img/68546.jpg)
4 |
BEARING (17X47X14) DE ARM DE SUSPENSION REAR OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-82545R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/5/5/img/65455.jpg)
5 |
NUT (M8) OEM PIAGGIO COMMON A TOUTE LA RANGE-020008 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/2/1/img/69321.jpg)
6 |
SCREW BTR (8X50) OEM PIAGGIO COMMON A LA RANGE-844483 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/5/img/63765.jpg)
7 |
NUT AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-002440 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/6/4/img/67364.jpg)
8 |
SCREW FLANGE TH (10X50) OEM PIAGGIO COMMON A LA RANGE-268158 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/2/0/img/109020.jpg)
9 |
WASHER PLATE (10X2. 5) OEM PIAGGIO COMMON A LA RANGE-1A000427 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/6/4/3/img/86643.jpg)
10 |
BRACKET MOUNTING REAR SHOCK ABSORBER RIGHT OU LEFT OEM PIAGGIO 125-300-400-500 MP3, 400 X-EVO, X8/GILERA 500 FUOCO-646838 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/6/9/img/69069.jpg)
11 |
NUT FLANGE (10X1, 25) OEM PIAGGIO COMMON A LA RANGE-833520 More informationQuantity required : 2 |
