Vehicle Exploded View - GILERA FUOCO 500 E3 2007-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

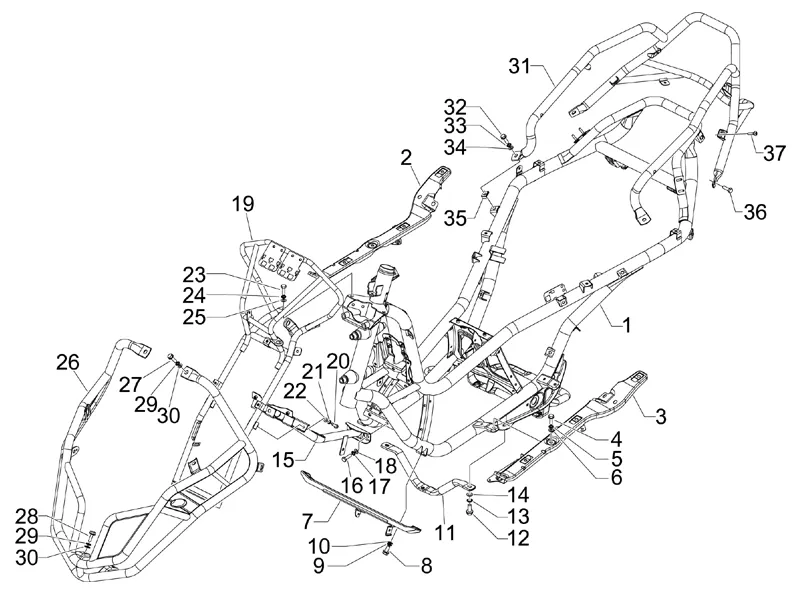

Châssis - parties plastiques - carrosseries : 02.01 CHÂSSIS/COQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/173/Fuoco_500_E3_2007-2013-095.png)
1 |
1B0001785-FRAME * More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/2/9/5/img/158295.jpg)
2 |
BRACKET/TRAVERSE REST FEET RIGHT OEM PIAGGIO 125-250-300-400-500 MP3 2021 <-1B0063505 More informationQuantity required : 1 |
||||||
|
3 |
BRACKET/TRAVERSE REST FEET LEFT OEM PIAGGIO 125-250-300-400-500 MP3-6536685 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/3/9/img/65639.jpg)
4 |
SCREW TH (6X16) OEM PIAGGIO COMMON A LA RANGE-031088 More informationQuantity required : 7 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
5 |
WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406 More informationQuantity required : 7 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/6/img/65366.jpg)
6 |
WASHER PLATE (6X16) OEM PIAGGIO COMMON A LA LA RANGE-013880 More informationQuantity required : 7 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/4/8/3/5/img/84835.jpg)
7 |
TRAVERSE FRONT TRANSVERSALE PIAGGIO 125-250-300-400-500 MP3 2008 > 2014, 350 MP3 2018 >-6234865 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/9/img/65649.jpg)
8 |
SCREW TH (8X30) OEM PIAGGIO COMMON A LA RANGE-031122 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/9/img/65349.jpg)
9 |
WASHER EVENTAIL (8. 3X14) OEM PIAGGIO COMMON A LA RANGE-012540 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/3/img/63773.jpg)
10 |
WASHER PLATE (8. 4X18X2) OEM PIAGGIO COMMON A LA RANGE-003038 More informationQuantity required : 2 |
||||||
|
11 |
653294-HOSE More informationQuantity required : 1 |
||||||
|
12 |
031117-BOLT S03111700 More informationQuantity required : 2 |
||||||
|
13 |
WASHER EVENTAIL (8. 3X14) OEM PIAGGIO COMMON A LA RANGE-012540 More informationQuantity required : 2 |
||||||
|
14 |
WASHER PLATE (8. 4X18X2) OEM PIAGGIO COMMON A LA RANGE-003038 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/4/6/4/5/img/84645.jpg)
15 |
BARRE BRACKET FRAME FRONT OEM PIAGGIO 125-250-300-400-500 MP3 2008 > 2014/GILERA 500 FUOCO 2007 >-6227795 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/6/img/65646.jpg)
16 |
SCREW TH (8X22) OEM PIAGGIO COMMON A LA RANGE-031119 More informationQuantity required : 2 |
||||||
|
17 |
WASHER EVENTAIL (8. 3X14) OEM PIAGGIO COMMON A LA RANGE-012540 More informationQuantity required : 2 |
||||||
|
18 |
WASHER PLATE (8. 4X18X2) OEM PIAGGIO COMMON A LA RANGE-003038 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/4/7/1/img/75471.jpg)
19 |
BRACKET FRAME FRONT OEM PIAGGIO GILERA 500 FUOCO 2007 >-1B0001795 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/3/7/img/65637.jpg)
20 |
SCREW TH (6X12) OEM PIAGGIO COMMON A LA RANGE-031086 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/5/img/65345.jpg)
21 |
WASHER EVENTAIL (6, 6X11X0) OEM PIAGGO COMMON A LA RANGE-012533 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
22 |
WASHER PLATE (6X12X1) OEM PIAGGIO COMMON A LA RANGE-003056 More informationQuantity required : 2 |
||||||
|
23 |
SCREW TH (8X22) OEM PIAGGIO COMMON A LA RANGE-031119 More informationQuantity required : 2 |
||||||
|
24 |
WASHER EVENTAIL (8. 3X14) OEM PIAGGIO COMMON A LA RANGE-012540 More informationQuantity required : 2 |
||||||
|
25 |
WASHER PLATE (8. 4X18X2) OEM PIAGGIO COMMON A LA RANGE-003038 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/4/7/9/img/75479.jpg)
26 |
PROTECTOR CHOC FRONT OEM PIAGGIO GILERA FUOCO 500 2007 > GREY-1B000186 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/3/img/72723.jpg)
27 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-B016777 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/5/img/72725.jpg)
28 |
SCREW FLANGE TH (6X30) OEM PIAGGIO COMMON A TOUTE LA RANGE-B016792 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/0/img/72720.jpg)
28 |
SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774 More informationQuantity required : 2 |
||||||
|
29 |
WASHER EVENTAIL (6, 6X11X0) OEM PIAGGO COMMON A LA RANGE-012533 More informationQuantity required : 4 |
||||||
|
30 |
WASHER PLATE (6X16) OEM PIAGGIO COMMON A LA LA RANGE-013880 More informationQuantity required : 4 |
||||||
|
31 |
653433-FRAME More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/9/8/6/8/img/89868.jpg)
31 |
REAR SUB. CHASSIS "PIAGGIO GENUINE PART" GILERA FUOCO 500 -657557 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/7/img/65447.jpg)
32 |
SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-018639 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/2/img/65642.jpg)
32 |
SCREW TH (6X22) OEM PIAGGIO COMMON A LA RANGE-031091 More informationQuantity required : 4 |
||||||
|
33 |
WASHER EVENTAIL (6, 6X11X0) OEM PIAGGO COMMON A LA RANGE-012533 More informationQuantity required : 4 |
||||||
|
34 |
WASHER PLATE (6X16) OEM PIAGGIO COMMON A LA LA RANGE-013880 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
35 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/4/8/2/img/85482.jpg)
36 |
SCREW BTR HEAD BOMBEE (6X16) OEM PIAGGIO COMMON A LA RANGE-624995 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/4/img/66034.jpg)
37 |
SCREW CRUCIFORME (D6) DE FAIRING OEM PIAGGIO COMMON A TOUTE LA RANGE-259348 More informationQuantity required : 2 |
