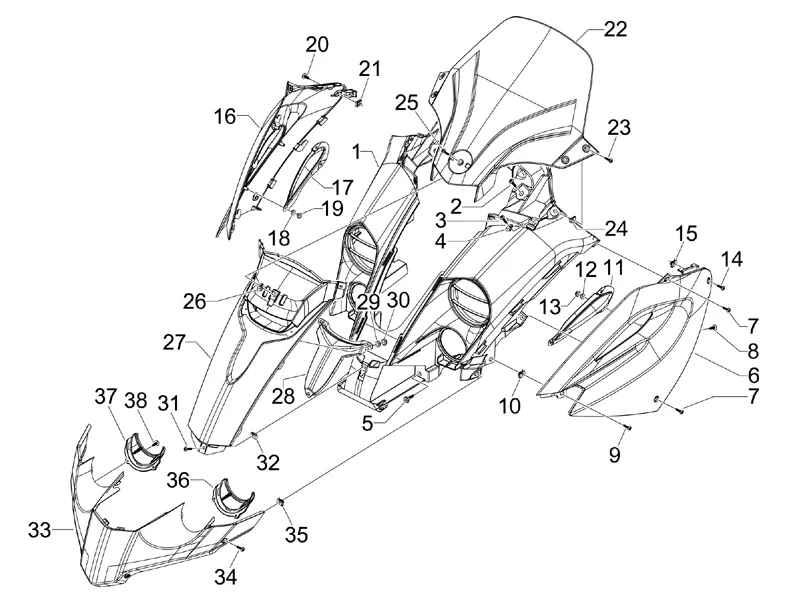

Châssis - parties plastiques - carrosseries : 02.26 TABLIER AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/173/Fuoco_500_E3_2007-2013-107.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/7/8/1/1/img/87811.jpg)
1 |
FRONT PANEL FRONT OEM PIAGGIO GILERA 500 FUOCO 2007 > BLACK-653414000C More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/1/7/img/66117.jpg)
2 |
SCREW TBC (6X16) OEM PIAGGIO COMMON A LA RANGE-272836 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/8/img/66028.jpg)
3 |
SCREW OF FAIRING (3X18) OEM PIAGGIO COMMON A TOUTE LA RANGE-258249 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
4 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/4/img/66034.jpg)
5 |
SCREW CRUCIFORME (D6) DE FAIRING OEM PIAGGIO COMMON A TOUTE LA RANGE-259348 More informationQuantity required : 2 |
||||||
6 |
LEFT FRONT SIDE PROTECTION "PIAGGIO GENUINE PART" GILERA 500 FUOCO -653419 More informationQuantity required : 1 |
||||||
|
6 |
65341900EV - CACHE LAT.GAU. More informationQuantity required : 1 |
||||||
|
6 |
65341900EZ - CACHE LAT.GAU. More informationQuantity required : 1 |
||||||
|
6 |
65341900F2 - CACHE LAT.GAU. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/7/8/3/1/img/87831.jpg)
6 |
LEFT SHIELD LATERAL COVER "PIAGGIO GENUINE PART" GILERA 500 FUOCO BLACK 94/A -65341900NG More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/7/8/3/2/img/87832.jpg)
6 |
LEFT SHIELD LATERAL COVER "PIAGGIO GENUINE PART" GILERA 500 FUOCO BLACK 80/B -65341900NI- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/7/8/3/4/img/87834.jpg)
6 |
LEFT SHIELD LATERAL COVER "PIAGGIO GENUINE PART" GILERA 500 FUOCO RED 894 -65341900R7 More informationQuantity required : 1 |
||||||
|
6 |
65341900RP - CACHE LAT.GAU. More informationQuantity required : 1 |
||||||
|
6 |
656924 - CACHE LAT.GAU. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/4/8/2/img/85482.jpg)
7 |
SCREW BTR HEAD BOMBEE (6X16) OEM PIAGGIO COMMON A LA RANGE-624995 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
8 |
SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/5/img/66035.jpg)
9 |
SCREW AUTOTARAUDEUSE (4, 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259349 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
10 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/7/8/4/6/img/87846.jpg)
11 |
653421-GRILLE LATERAL GAU. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/8/3/8/9/img/88389.jpg)
23 |
SCREW BTR HEAD BOMBEE (6X25) OEM PIAGGIO COMMON A LA RANGE-654507 More informationQuantity required : 4 |
||||||
|
24 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 4 |
||||||
|
25 |
SCREW AUTOTARAUDEUSE (4, 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259349 More informationQuantity required : 1 |
||||||
|
26 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410 More informationQuantity required : 1 |
||||||
|
27 |
653416-FRONT PANEL AVT More informationQuantity required : 1 |
||||||
|
27 |
CENTRAL FRONT COVER "PIAGGIO GENUINE PART" GILERA 500 FUOCO BLACK -6534160090- More informationQuantity required : 1 |
||||||
|
27 |
65341600BR-COVER CENTR. HANDLEBAR More informationQuantity required : 0 |
||||||
|
28 |
653417 - GRILLE More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/8/6/img/66586.jpg)
29 |
SPACER RUBBER (7X13X2) OEM PIAGGIO COMMON A LA RANGE-479882 More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/5/9/img/65959.jpg)
30 |
WASHER BRAKE OEM PIAGGIO COMMON A TOUTE LA RANGE-230359 More informationQuantity required : 0 |
||||||
|
31 |
SCREW AUTOTARAUDEUSE (4, 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259349 More informationQuantity required : 0 |
||||||
|
32 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410 More informationQuantity required : 0 |
||||||
|
33 |
653418-COVER INF. More informationQuantity required : 0 |
||||||
|
33 |
65341800EV-COVER INF. More informationQuantity required : 0 |
||||||
|
33 |
65341800EZ - CACHE INF. More informationQuantity required : 0 |
||||||
|
33 |
65341800F2-COVER INF. More informationQuantity required : 0 |
||||||
|
33 |
65341800NG - CACHE INF. More informationQuantity required : 0 |
||||||
|
33 |
65341800NI - CACHE INF. More informationQuantity required : 0 |
||||||
|
33 |
65341800R7-COVER INF. More informationQuantity required : 0 |
||||||
|
33 |
65341800RP-COVER INF. More informationQuantity required : 0 |
||||||
|
33 |
656921 - CACHE INF. More informationQuantity required : 0 |
||||||
|
34 |
SCREW BTR HEAD BOMBEE (6X16) OEM PIAGGIO COMMON A LA RANGE-624995 More informationQuantity required : 4 |
||||||
|
35 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 4 |
||||||
|
36 |
653697 - PROTECTION GAUCHE More informationQuantity required : 1 |
||||||
|
37 |
653698 - PROTECTION DRT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/1/img/66301.jpg)
38 |
SCREW OF FAIRING (3, 5X13) OEM PIAGGIO COMMON A TOUTE LA RANGE-297498 More informationQuantity required : 4 |
