Vehicle Exploded View - GILERA FUOCO 500 E3 2007-2013 GILERA

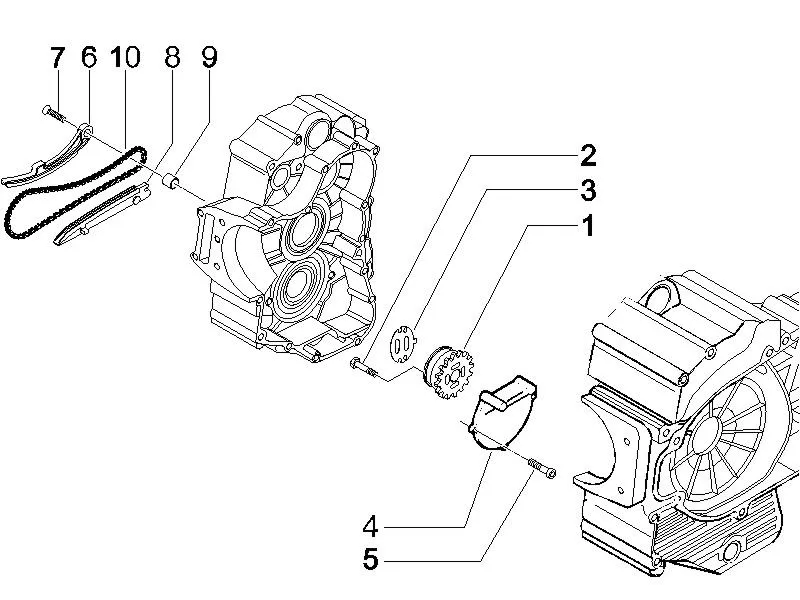

Moteur : 01.18 POMPE À HUILE
Pompe à huile
Search
OIL PUMP COMPLETE OEM PIAGGIO 400-500 MP3, BEVERLY 2006 >, 400 X8 2004 > 2006, X-EVO 2007 >, 500 X9 2003 >, X10 2012 >/GILERA 500 NEXUS, FUOCO/APRILIA 400-500 ATLANTIC, SCARABEO-876225

1
P2R reference P2R reference 70601
Maker reference Maker reference 876225

OIL PUMP COMPLETE OEM PIAGGIO 400-500 MP3, BEVERLY 2006 >, 400 X8 2004 > 2006, X-EVO 2007 >, 500 X9 2003 >, X10 2012 >/GILERA 500 NEXUS, FUOCO/APRILIA 400-500 ATLANTIC, SCARABEO-876225

More information

Quantity required : 1

SCREW FLANGE TH (5X30) OEM PIAGGIO COMMON A LA RANGE-433477

2
P2R reference P2R reference 66438
Maker reference Maker reference 433477

SCREW FLANGE TH (5X30) OEM PIAGGIO COMMON A LA RANGE-433477

More information

Quantity required : 2

GASKET OF OIL PUMP OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 400-500-530 CC-847962

3
P2R reference P2R reference 69551
Maker reference Maker reference 847962

GASKET OF OIL PUMP OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 400-500-530 CC-847962

More information

Quantity required : 1

CLOISON/COVER OF PUMP A OIL OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 400-500 CC-83064

4
P2R reference P2R reference 68892
Maker reference Maker reference 830064

CLOISON/COVER OF PUMP A OIL OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 400-500 CC-83064

More information

Quantity required : 1

SCREW FLANGE TH (5X16) OEM PIAGGIO COMMON A LA RANGE-830061

5
P2R reference P2R reference 68890
Maker reference Maker reference 830061

SCREW FLANGE TH (5X16) OEM PIAGGIO COMMON A LA RANGE-830061

More information

Quantity required : 2

PATIN DE CHAIN DE TIMING OEM PIAGGIO 500 MP3, BEVERLY, X10 2018 <-843545

6
P2R reference P2R reference 69291
Maker reference Maker reference 843545

PATIN DE CHAIN DE TIMING OEM PIAGGIO 500 MP3, BEVERLY, X10 2018 <-843545

More information

Quantity required : 1

SCREW BTR HEAD FRAISEE (6X16) OEM PIAGGIO COMMON A LA RANGE-B016797

7
P2R reference P2R reference 72728
Maker reference Maker reference B016797

SCREW BTR HEAD FRAISEE (6X16) OEM PIAGGIO COMMON A LA RANGE-B016797

More information

Quantity required : 1

1A003052 - BOULON M6X25

7
P2R reference P2R reference 109023
Maker reference Maker reference 1A003052

SCREW BTR HEAD FRAISEE (6X25) WITH BRAKE NET THREAD OEM PIAGGIO COMMON A LA RANGE-1A003052

More information

Quantity required : 1

PATIN TENDEUR DE CHAIN TIMING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 400-500-827882

8
P2R reference P2R reference 68709
Maker reference Maker reference 827882

PATIN TENDEUR DE CHAIN TIMING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 400-500-827882

More information

Quantity required : 1

SPACER DE TENDEUR DE CHAIN DE TIMING OEM PIAGGIO 350-400-500-530 MP3, BEVERLY, X9-825737

9
P2R reference P2R reference 68565
Maker reference Maker reference 825737

SPACER DE TENDEUR DE CHAIN DE TIMING OEM PIAGGIO 350-400-500-530 MP3, BEVERLY, X9-825737

More information

Quantity required : 1

CHAIN DE TIMING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 400-500 CC-827889

10
P2R reference P2R reference 68713
Maker reference Maker reference 827889

CHAIN DE TIMING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 400-500 CC-827889

More information

Quantity required : 1
