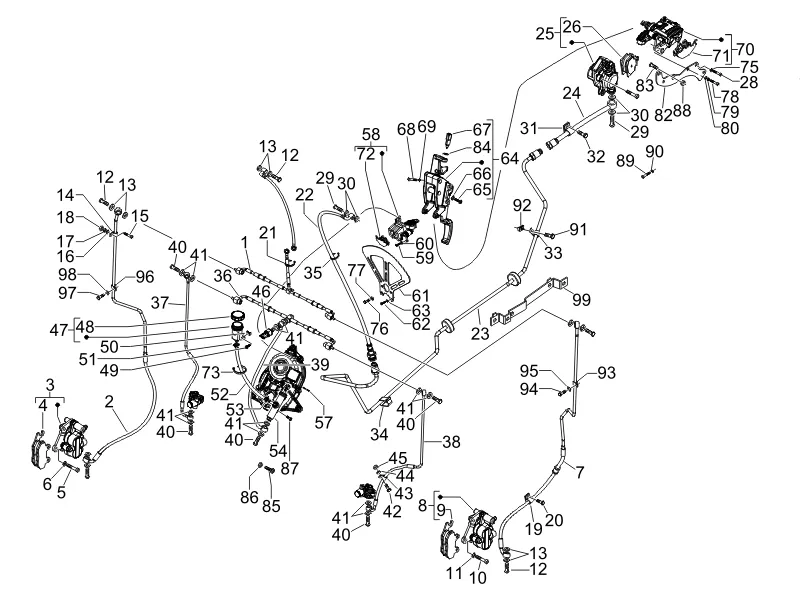

Vehicle Exploded View - GILERA FUOCO 500 E3 2007-2013

	P2R reference	82167
	Maker reference	58554R

58554R-HOSE A BRAKE

	P2R reference	174667
	Maker reference	1C005539

HOSE/FLEXIBLE/HOSE OF BRAKE RIGHT OEM PIAGGIO 125-250-300-350-400-500-530 MP3-1C005539

	P2R reference	174667
	Maker reference	601742

HOSE/FLEXIBLE/HOSE OF BRAKE RIGHT OEM PIAGGIO 125-250-300-350-400-500-530 MP3-1C005539

	P2R reference	95511
	Maker reference	CM065707

CALIPER BRAKE FRONT RIGHT HENG-TONG OEM PIAGGIO 125-250-300-400-500-MP3 2008 > 2014, 125-300 YOURBAN 2012 >/GILERA 500 FUOCO 2007 >-CM065707

	P2R reference	68422
	Maker reference	647157

BRAKE PAD OEM PIAGGIO 125-250-400 MP3 2006 > AV, 50-125 VESPA LX AV, 50-125 VESPA S AV, 50-125 LIBERTY AV, 50 NRG/GILERA 50 RUNNER AR, 500 FUOCO AR (PAIRE)-666574

	P2R reference	67332
	Maker reference	597150

SCREW BTR (8X25) CALIPER OU SHOCK ABSORBER OEM PIAGGIO COMMON A LA RANGE-597150

	P2R reference	68491
	Maker reference	709047

WASHER ELASTIC COURBE (8. 4X15X0. 8) OEM PIAGGIO COMMON A TOUTE LA RANGE-709047

	P2R reference	174665
	Maker reference	1C005540

HOSE/FLEXIBLE/HOSE OF BRAKE LEFT OEM PIAGGIO 125-250-300-350-400-500-530 MP3-1C005540

	P2R reference	174665
	Maker reference	601740

HOSE/FLEXIBLE/HOSE OF BRAKE LEFT OEM PIAGGIO 125-250-300-350-400-500-530 MP3-1C005540

	P2R reference	95512
	Maker reference	CM065708

CALIPER BRAKE FRONT LEFT HENG-TONG OEM PIAGGIO 125-250-300-400-500-MP3 2008 > 2014, 125-300 YOURBAN 2012 >/GILERA 500 FUOCO 2007 >-CM065708

	P2R reference	68422
	Maker reference	647157

BRAKE PAD OEM PIAGGIO 125-250-400 MP3 2006 > AV, 50-125 VESPA LX AV, 50-125 VESPA S AV, 50-125 LIBERTY AV, 50 NRG/GILERA 50 RUNNER AR, 500 FUOCO AR (PAIRE)-666574

	P2R reference	67332
	Maker reference	597150

SCREW BTR (8X25) CALIPER OU SHOCK ABSORBER OEM PIAGGIO COMMON A LA RANGE-597150

	P2R reference	68491
	Maker reference	709047

WASHER ELASTIC COURBE (8. 4X15X0. 8) OEM PIAGGIO COMMON A TOUTE LA RANGE-709047

	P2R reference	66050
	Maker reference	265451

SCREW BANJO FOR BRAKE OEM PIAGGIO COMMON A LA RANGE-265451

	P2R reference	65723
	Maker reference	127927

GASKET CUIVRE (10X16X1) BRAKE CALIPER OEM PIAGGIO COMMON A TOUTE LA RANGE-127927

	P2R reference	69377
	Maker reference	845978

CLAMP MOUNTING WIRING OU HOSE OUVERT OEM PIAGGIO COMMON A LA RANGE-845978

	P2R reference	78329
	Maker reference	319538

SCREW BTR (6X30) OEM PIAGGIO COMMON A LA RANGE-319538

	P2R reference	63838
	Maker reference	006966

WASHER SPRING (6, 4X11X0, 5) OEM PIAGGIO COMMON A LA RANGE-006966

	P2R reference	65368
	Maker reference	013950

WASHER PLATE (6, 2X18X2) OEM PIAGGIO COMMON A LA RANGE-013950

	P2R reference	66187
	Maker reference	288245

NUT (M6) EXHAUST OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-288245

	P2R reference	83058
	Maker reference	601970

601970-CLAMP

	P2R reference	70959
	Maker reference	969296

SCREW FLANGE TH (6X10) OEM PIAGGIO COMMON A LA RANGE-969296

	P2R reference	66017
	Maker reference	257134

HOSE CLAMP NYLON TYPE RILSAN 4, 8X270MM OEM PIAGGIO COMMON A LA RANGE-257134

	P2R reference	86950
	Maker reference	649377

REAR BRAKE HOSE "PIAGGIO GENUINE PART" 400-500 MP3/GILERA 500 FUOCO -649377

	P2R reference	86887
	Maker reference	648932

648932-CANALISATEUR

	P2R reference	86977
	Maker reference	649630

649630-HOSE A BRAKE

	P2R reference	72981
	Maker reference	CM068304

CALIPER REAR OEM PIAGGIO 400-500 MP3 2007 >, 400 BEVERLY 2006 >, X8 2004 > 2006, X-EVO 2007 >/GILERA 125-250-300 NEXUS 2006 >, 500 FUOCO 2007 >, 125-300 SR-MAX 2011 >-CM068304

	P2R reference	68004
	Maker reference	647078

BRAKE PAD OEM PIAGGIO 125 X-EVO AV, X8 AV, X9 AV, 125-300 VESPA GTS AV, 400 X-EVO AV + AR, 125 FLY AV/GILERA 800 GP AR/APRILIA 854 SRV AR, 125-300 SR-MAX AV + AR (PAIRE) (HENG-TONG)-647078

	P2R reference	68038
	Maker reference	647799

SCREW BTR (10X15) OEM PIAGGIO COMMON A LA RANGE-647799

	P2R reference	66050
	Maker reference	265451

SCREW BANJO FOR BRAKE OEM PIAGGIO COMMON A LA RANGE-265451

	P2R reference	65723
	Maker reference	127927

GASKET CUIVRE (10X16X1) BRAKE CALIPER OEM PIAGGIO COMMON A TOUTE LA RANGE-127927

	P2R reference	65734
	Maker reference	136916

136916-PLATE

	P2R reference	72725
	Maker reference	B016792

SCREW FLANGE TH (6X30) OEM PIAGGIO COMMON A TOUTE LA RANGE-B016792

	P2R reference	68067
	Maker reference	649378

649378-CLAMP

	P2R reference	65790
	Maker reference	179013

179013-SPRING

	P2R reference	66017
	Maker reference	257134

HOSE CLAMP NYLON TYPE RILSAN 4, 8X270MM OEM PIAGGIO COMMON A LA RANGE-257134

	P2R reference	82153
	Maker reference	58517R

58517R-HOSE A BRAKE

	P2R reference	83042
	Maker reference	601743

601743-CANALISATION BRAKE DR.

	P2R reference	83040
	Maker reference	601741

601741-HOSE A BRAKE GAU.

	P2R reference	83044
	Maker reference	601781

BRAKE PIPE-FROM MAIN MASTER CYLINDER TO PRESSURE UNIT "PIAGGIO GENUINE PART" 125-250-300-350-400-500 MP3/GILERA 500 FUOCO -601781

	P2R reference	66050
	Maker reference	265451

SCREW BANJO FOR BRAKE OEM PIAGGIO COMMON A LA RANGE-265451

	P2R reference	65723
	Maker reference	127927

GASKET CUIVRE (10X16X1) BRAKE CALIPER OEM PIAGGIO COMMON A TOUTE LA RANGE-127927

	P2R reference	72723
	Maker reference	B016777

SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-B016777

	P2R reference	70959
	Maker reference	969296

SCREW FLANGE TH (6X10) OEM PIAGGIO COMMON A LA RANGE-969296

	P2R reference	69377
	Maker reference	845978

CLAMP MOUNTING WIRING OU HOSE OUVERT OEM PIAGGIO COMMON A LA RANGE-845978

	P2R reference	65368
	Maker reference	013950

WASHER PLATE (6, 2X18X2) OEM PIAGGIO COMMON A LA RANGE-013950

	P2R reference	66187
	Maker reference	288245

NUT (M6) EXHAUST OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-288245

	P2R reference	85926
	Maker reference	640295

SONDE PRESSION HYDRAULIQUE OF BRAKE OEM PIAGGIO 125-250-400 MP3 2007 >, 350 MP3 2018 >, 300-500 MP3 2010 >, 125-300 YOURBAN 2012 >/GILERA 500 FUOCO 2007 >-640295

	P2R reference	77469
	Maker reference	274598

TANK PRINCIPAL BRAKE FLUID OEM PIAGGIO 125-250-300-400-500 MP3/APRILIA 500 FUOCO-274598

	P2R reference	79623
	Maker reference	498431

CAP TANK BRAKE FLUID OEM PIAGGIO 125-250-300-350-400-500-530 MP3-498431

	P2R reference	66035
	Maker reference	259349

SCREW AUTOTARAUDEUSE (4, 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259349

	P2R reference	72925
	Maker reference	CM017409

NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017409

	P2R reference	72863
	Maker reference	CM001901

CLAMP SERRE TUBE OEM PIAGGIO COMMON A LA RANGE-CM001901

	P2R reference	72892
	Maker reference	CM002905

HOSE CLAMP HOSE (9, 4X12) OEM PIAGGIO COMMON A LA RANGE-CM002905

	P2R reference	86974
	Maker reference	649563

649563-TUBE JONCTION

	P2R reference	72874
	Maker reference	CM001913

CLAMP (12-22MM) SERRAGE TUBE OEM PIAGGIO COMMON A LA RANGE-CM001913

	P2R reference	72893
	Maker reference	CM002907

CLAMP FOR HOSE DE 13MM OEM PIAGGIO COMMON A LA RANGE-CM002907

	P2R reference	86871
	Maker reference	648798

MAITRE CYLINDER DE MOTOR REDUCTEUR OEM PIAGGIO 125-250-300-400-500 MP3 2008 > 2014, 350 MP3 2018 >-648798

	P2R reference	86942
	Maker reference	649338

649338-PUMP BRAKE

	P2R reference	93052
	Maker reference	846983

846983-GASKET

	P2R reference	86904
	Maker reference	649090

BRAKE CALIPER ON DISC ANTIROULIS OEM PIAGGIO 125-250-300-400-500 MP3-649090

	P2R reference	67371
	Maker reference	598921

SCREW BTR (8X35) MOUNTING BRAKE CALIPER OEM PIAGGIO COMMON A LA RANGE-598921

	P2R reference	68491
	Maker reference	709047

WASHER ELASTIC COURBE (8. 4X15X0. 8) OEM PIAGGIO COMMON A TOUTE LA RANGE-709047

	P2R reference	89926
	Maker reference	665588

DISC ANTIROULIS OEM PIAGGIO MP3 125-250-300-350-400-500-530-665588

	P2R reference	67372
	Maker reference	599208

SCREW TORX (8X30) HEAD BOMBEE OEM PIAGGIO COMMON A LA RANGE-599208

	P2R reference	68491
	Maker reference	709047

WASHER ELASTIC COURBE (8. 4X15X0. 8) OEM PIAGGIO COMMON A TOUTE LA RANGE-709047

	P2R reference	86956
	Maker reference	6494205

BRAKE LEVER A MAIN OEM PIAGGIO 125-250-400 MP3 2007 >, 300-500 MP3 2010 >, 350 MP3 2018 >, 125-300 YOURBAN 2012 >/GILERA 500 FUOCO 2007 >-6494205

	P2R reference	70918
	Maker reference	959559

SCREW BTR (4X16) OEM PIAGGIO COMMON A LA RANGE-959559

	P2R reference	65414
	Maker reference	016404

WASHER (4, 2X7, 6X0, 9) OEM PIAGGIO COMMON A LA RANGE-016404

	P2R reference	67286
	Maker reference	583575

CONTACTEUR LAMP STOP MAXI SCOOTER OEM PIAGGIO 125-250-300-400-500 MP3, BEVERLY, 50 TYPHOON, NRG, 125-250-400 X8, X9, 50-125 FLY, VESPA LX, 125-250-300 VESPA GTS/GILERA 125-250-300 NEXUS-583575

	P2R reference	63841
	Maker reference	006976

WASHER ELASTIC (6. 4X12X0. 5) OEM PIAGGIO COMMON A LA RANGE-006976

	P2R reference	68493
	Maker reference	709099

SCREW BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-709099

	P2R reference	73017
	Maker reference	CM084601

BRAKE CALIPER DE STATIONNEMENT OEM PIAGGIO 125 YOURBAN 2012 >, 300-500 MP3 2011 >, 400 MP3 2007 >/GILERA 500 FUOCO 2007 >, 800 GP 2007/APRILIA 850 SRV 2012 >-CM084601

	P2R reference	68052
	Maker reference	648476

BRAKE PAD PARKING OEM PIAGGIO 125-250-300-400-500 MP3 2008 > 2014/GILERA 500 FUOCO 2007 >-648476

	P2R reference	68098
	Maker reference	649830

BRAKE PAD DE STATIONNEMENT OEM PIAGGIO 400-500 MP3 2007 >, YOURBAN 125-300 2011 > APRILIA 850 SRV 2012 >/GILERA 800 GP 2007 > 500 FUOCO 2007 > (PAIRE)-649830

	P2R reference	68052
	Maker reference	648476

BRAKE PAD PARKING OEM PIAGGIO 125-250-300-400-500 MP3 2008 > 2014/GILERA 500 FUOCO 2007 >-648476

	P2R reference	65742
	Maker reference	145298

HOSE CLAMP NYLON TYPE RILSAN 180 MM OEM PIAGGIO COMMON A LA RANGE-145298

	P2R reference	65423
	Maker reference	016626

WASHER PLATE (10, 4X18X2) OEM PIAGGIO COMMON A LA RANGE-016626

	P2R reference	82451
	Maker reference	598837

SCREW FLANGE TH (8X22) OEM PIAGGIO COMMON A LA RANGE-598837

	P2R reference	65455
	Maker reference	020008

NUT (M8) OEM PIAGGIO COMMON A TOUTE LA RANGE-020008

	P2R reference	66335
	Maker reference	319165

SCREW BTR (8X16) OEM PIAGGIO COMMON A LA RANGE-319165

	P2R reference	68491
	Maker reference	709047

WASHER ELASTIC COURBE (8. 4X15X0. 8) OEM PIAGGIO COMMON A TOUTE LA RANGE-709047

	P2R reference	65422
	Maker reference	016604

WASHER PLATE (8. 2X13X2) OEM PIAGGIO COMMON A LA RANGE-016604

	P2R reference	86875
	Maker reference	648845

BRACKET BRAKE CALIPER REAR OEM PIAGGIO 300 YOURBAN, 350 MP3 2018 >, 400 MP3 2007 >, 500 MP3 2010 >/GILERA 500 FUOCO 2007 >-648845

	P2R reference	67354
	Maker reference	597893

BOLT OEM PIAGGIO-597893

	P2R reference	72619
	Maker reference	AP9150292

WASHER PLATE (7X12) OEM PIAGGIO COMMON A LA RANGE-AP9150292

	P2R reference	73817
	Maker reference	015650

SCREW CRUCIFORME (4X12) OEM PIAGGIO COMMON A LA RANGE-015650

	P2R reference	73877
	Maker reference	020004

NUT M4 OEM PIAGGIO COMMON A LA RANGE-020004

	P2R reference	72720
	Maker reference	B016774

SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774

	P2R reference	67084
	Maker reference	564878

NUT FLANGE (M10) OEM PIAGGIO COMMON A LA RANGE-564878

	P2R reference	65614
	Maker reference	030076

SCREW TH (8X55) OEM PIAGGIO COMMON A LA RANGE-030076

	P2R reference	82450
	Maker reference	598833

WASHER BRAKE D8 OEM PIAGGIO COMMON A LA RANGE-598833

	P2R reference	72723
	Maker reference	B016777

SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-B016777

	P2R reference	66009
	Maker reference	254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

	P2R reference	86964
	Maker reference	649502

CLAMP FITTING KIT HOSE OF BRAKE OEM PIAGGIO 125-250-300-350-400-500-530 MP3-649502

	P2R reference	72723
	Maker reference	B016777

SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-B016777

	P2R reference	72723
	Maker reference	B016777

SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-B016777

	P2R reference	63841
	Maker reference	006976

WASHER ELASTIC (6. 4X12X0. 5) OEM PIAGGIO COMMON A LA RANGE-006976

	P2R reference	86964
	Maker reference	649502

CLAMP FITTING KIT HOSE OF BRAKE OEM PIAGGIO 125-250-300-350-400-500-530 MP3-649502

	P2R reference	65638
	Maker reference	031087

SCREW TH (6X15) OEM PIAGGIO COMMON A LA RANGE-031087

	P2R reference	72723
	Maker reference	B016777

SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-B016777

	P2R reference	63841
	Maker reference	006976

WASHER ELASTIC (6. 4X12X0. 5) OEM PIAGGIO COMMON A LA RANGE-006976

	P2R reference	86750
	Maker reference	647825

PLATE/FLANGE BRAKE CALIPER REAR OEM PIAGGIO 350-400-500 MP3, 400 X-EVO, X8-647825
