Vehicle Exploded View - GILERA FUOCO 500 E3 2007-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

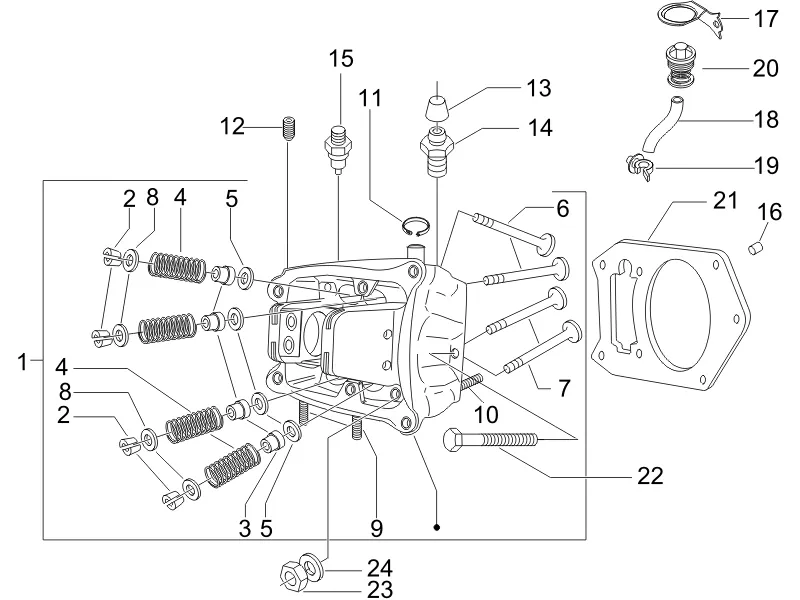

Moteur : 01.10 ENSEMBLE CULASSE - SOUPAPE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/173/Fuoco_500_E3_2007-2013-041.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/7/5/img/68875.jpg)
1 |
CYLINDER HEAD MAXI SCOOTER OEM PIAGGIO 500 MP3 2007 > 2013, X10 2012 > 2013, BEVERLY 2007 > 2012/GILERA 500 FUOCO 2007 > 2014/APRILIA 400-500 SCARABEO 2006 > (VENDU WITHOUT BASCULEURS NI CAMSHAFT)-82988R1 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/5/2/img/66152.jpg)
2 |
HALF-LUNE/CLAVETTE DE VALVE OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-285846 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/9/3/img/66493.jpg)
3 |
GASKET/BUSH OF VALVE OEM PIAGGIO COMMON A LA RANGE-436438 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/8/3/img/68583.jpg)
4 |
SPRING DE VALVE OEM PIAGGIO ENGINE 400-500 MAXI SCOOTER-826103 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/9/2/img/68592.jpg)
5 |
WASHER DE VALVE INFERIEURE OEM PIAGGIO COMMON A LA RANGE-826256 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/4/6/img/68746.jpg)
6 |
VALVE EXHAUST MAXI SCOOTER 400-500 CC OEM PIAGGIO-828321 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/4/7/img/68747.jpg)
7 |
VALVE INTAKE OEM PIAGGIO COMMON A L'ENSEMBLE DE LA RANGE MAXI SCOOTER 400-500-828322 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/5/2/img/68752.jpg)
8 |
CUP UPPER VALVE OEM PIAGGIO 500-530 MP3-828396 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/3/9/0/img/139390.jpg)
9 |
STUD (8X46) OEM PIAGGIO MULTI-USAGE COMMON LA RANGE-1A003632R More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/0/2/img/70702.jpg)
10 |
STUD (6X27. 5) DE CYLINDER HEAD OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 400-500-878991 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/7/6/img/72876.jpg)
11 |
CLAMP HOSE COOLING (28. 6 MM) OEM PIAGGIO COMMON A LA RANGE-CM001915 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/2/6/img/69226.jpg)
12 |
CAP 6X10 CASING OEM PIAGGIO COMMON A LA RANGE-842360 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/5/7/img/65657.jpg)
13 |
063435-CAPUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/7/0/img/66370.jpg)
14 |
SCREW OF BLEEDING BRAKE CALIPER OEM PIAGGIO COMMON A LA RANGE-430045 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/8/0/img/67880.jpg)
15 |
SONDE TEMPERATURE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER/GILERA 50 SMT, RCR 2018 >/DERBI SENDA 2018 >-1A021287R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/5/2/img/68552.jpg)
16 |
STUD CALIBRE 11. 8X10 OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA/MOTO-GUZZI ET LES MAXI SCOOTER 400-500 CC-825597 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/3/3/img/69133.jpg)
17 |
FLANGE BRACKET THERMOSTAT OEM PIAGGIO 400-500 MP3, BEVERLY, X9, X10-840062 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/6/7/img/69167.jpg)
18 |
HOSE/HOSE COOLING ENTRE CALORSTAT ET CYLINDER HEAD OEM PIAGGIO 400 X-EVO, MP3, X9, X10/GILERA 500 NEXUS, FUOCO-840826 More informationQuantity required : 1 |
||||||
19 |
843603-CLIPS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/6/3/img/69563.jpg)
20 |
THERMOSTAT/CALORSTAT MAXISCOOT OEM PIAGGIO 400-500 MP3, BEVERLY, 400 X-EVO, 500 X9, X10, 125 VESPA GTS/GILERA 500 FUOCO, NEXUS/APRILIA 400-500 ATLANTIC, SCARABEO-848140 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/1/9/img/69519.jpg)
21 |
CYLINDER HEAD GASKET OEM PIAGGIO 500 MP3 2007 >, BEVERLY 2007 > 2012, X10 2012 >/GILERA 500 FUOCO 2007 >/APRILIA 500 SCARABEO 2006 > 2008-847406 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/2/img/72722.jpg)
22 |
SCREW TH FLANGE (6X90) OEM PIAGGIO COMMON A LA RANGE-B016776 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/1/8/img/69018.jpg)
23 |
NUT HEXAGONAL HAUT OEM PIAGGIO COMMON A LA RANGE-832783 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/2/0/img/109020.jpg)
24 |
WASHER PLATE (10X2. 5) OEM PIAGGIO COMMON A LA RANGE-1A000427 More informationQuantity required : 4 |
