Vehicle Exploded View - GILERA FUOCO 500 E3 2007-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

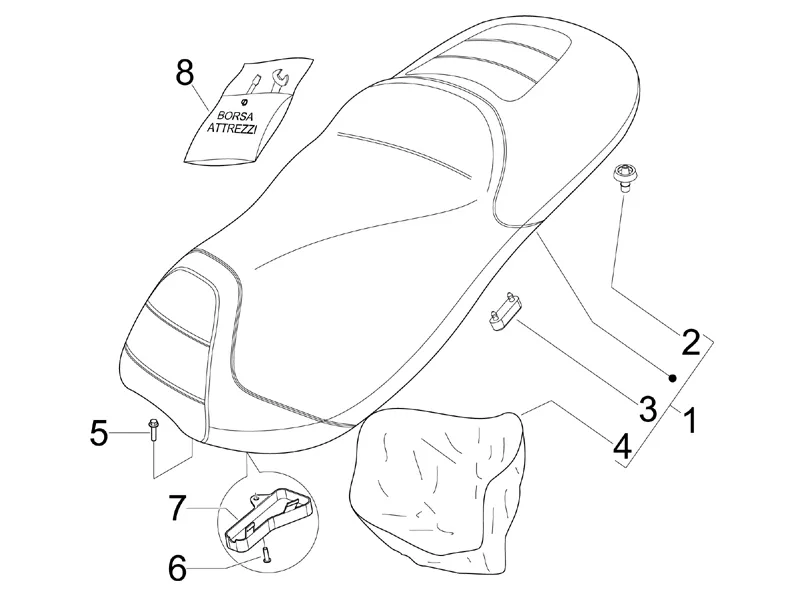

Châssis - parties plastiques - carrosseries : 02.39 SELLE/SIEGES - TROUSSE À OUTILS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/173/Fuoco_500_E3_2007-2013-167.png)
1 |
SEAT OEM PIAGGIO GILERA 500 FUOCO-657559 More informationQuantity required : 1 |
||||||
|
1 |
656930 - SELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/5/7/img/67157.jpg)
2 |
BUFFER DE SEAT OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-577492 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/9/2/img/66292.jpg)
3 |
BUFFER SEAT OEM PIAGGIO COMMIN A LA RANGE-296456 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/6/5/9/img/67659.jpg)
4 |
HOUSSE DE SEAT OEM PIAGGIO 125-250-300-400-500 MP3, BEVERLY, 125-250-300 VESPA GTS, 125-250-400 X8/GILERA GP 800, 500 FUOCO/APRILIA 850 SRV-621498 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/0/img/72720.jpg)
5 |
SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/1/img/66301.jpg)
6 |
SCREW OF FAIRING (3, 5X13) OEM PIAGGIO COMMON A TOUTE LA RANGE-297498 More informationQuantity required : 1 |
||||||
|
7 |
624965-COVER CABLES More informationQuantity required : 1 |
||||||
|
8 |
651193 - TROUSSE OUTILS More informationQuantity required : 1 |
