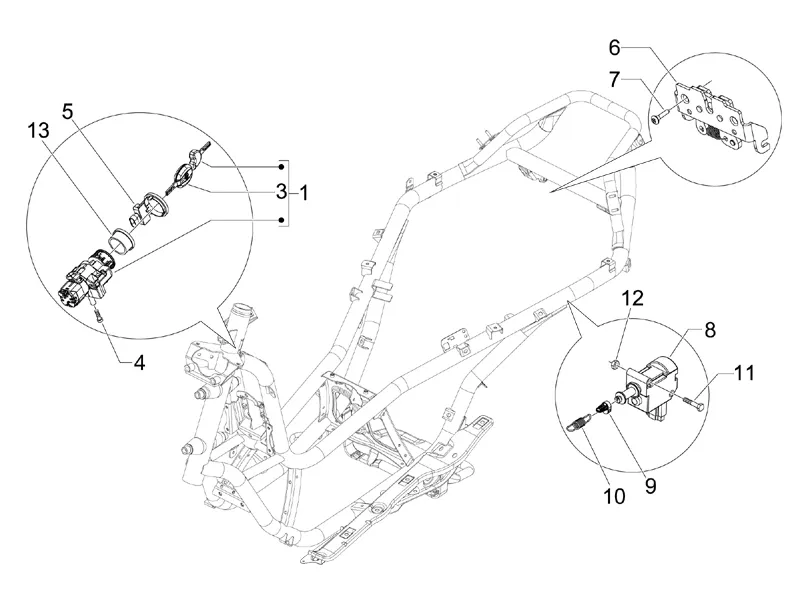

Vehicle Exploded View - GILERA FUOCO 500 E3 2007-2013 GILERA

Châssis - parties plastiques - carrosseries : 02.46 SERRURES
Serrures
Search
IGNITION KEY SWITCH "PIAGGIO GENUINE PART" PIAGGIO GILERA 500 FUOCO 2007> -653720

1
P2R reference P2R reference 87981
Maker reference Maker reference 653720

IGNITION KEY SWITCH "PIAGGIO GENUINE PART" PIAGGIO GILERA 500 FUOCO 2007> -653720

More information

Quantity required : 1

KEYBLANK "PIAGGIO GENUINE PART" GILERA 500 FUOCO, 850 GP -653718-

3
P2R reference P2R reference 87980
Maker reference Maker reference 653718

KEYBLANK "PIAGGIO GENUINE PART" GILERA 500 FUOCO, 850 GP -653718-

More information

Quantity required : 1

SCREW BTR (6X20) OEM PIAGGIO COMMON A LA RANGE-709674

4
P2R reference P2R reference 68497
Maker reference Maker reference 709674

SCREW BTR (6X20) OEM PIAGGIO COMMON A LA RANGE-709674

More information

Quantity required : 2

ANTENNE OEM PIAGGIO 125-300 MP3, YOURBAN, BEVERLY, VESPA GTS, X7, 125 VESPA LX, PRIMAVERA, LIBERTY, FLY/GILERA 125-250-300 NEXUS/APRILIA 125-300 SR-MAX-1D004058R

5
P2R reference P2R reference 67790
Maker reference Maker reference 638534

ANTENNE OEM PIAGGIO 125-300 MP3, YOURBAN, BEVERLY, VESPA GTS, X7, 125 VESPA LX, PRIMAVERA, LIBERTY, FLY/GILERA 125-250-300 NEXUS/APRILIA 125-300 SR-MAX-1D004058R

More information

Quantity required : 1

LOCK DE SEAT MAXI SCOOTER OEM PIAGGIO MP3, X8, X-EVO, X7, X10, BEVERLY/GILERA NEXUS, FUOCO-CM023701

6
P2R reference P2R reference 72942
Maker reference Maker reference CM023701

LOCK DE SEAT MAXI SCOOTER OEM PIAGGIO MP3, X8, X-EVO, X7, X10, BEVERLY/GILERA NEXUS, FUOCO-CM023701

More information

Quantity required : 1

SCREW CRUCIFORME (D6) DE FAIRING OEM PIAGGIO COMMON A TOUTE LA RANGE-259348

7
P2R reference P2R reference 66034
Maker reference Maker reference 259348

SCREW CRUCIFORME (D6) DE FAIRING OEM PIAGGIO COMMON A TOUTE LA RANGE-259348

More information

Quantity required : 2

ENGINE OUVERTURE SEAT OEM PIAGGIO COMMON A LA RANGE-1D002276R

8
P2R reference P2R reference 178070
Maker reference Maker reference 582990

ENGINE OUVERTURE SEAT OEM PIAGGIO COMMON A LA RANGE-1D002276R

More information

Quantity required : 1

ENGINE OUVERTURE SEAT OEM PIAGGIO COMMON A LA RANGE-1D002276R

8
P2R reference P2R reference 178070
Maker reference Maker reference 1D002276R

ENGINE OUVERTURE SEAT OEM PIAGGIO COMMON A LA RANGE-1D002276R

More information

Quantity required : 1

GASKET OF CABLE/TRANSMISSION OEM PIAGGIO COMMON A LA RANGE-577128

9
P2R reference P2R reference 67148
Maker reference Maker reference 577128

GASKET OF CABLE/TRANSMISSION OEM PIAGGIO COMMON A LA RANGE-577128

More information

Quantity required : 1

SPRING ACTIONNEUR LOCK DE SEAT OEM PIAGGIO COMMON A LA RANGE-675783

10
P2R reference P2R reference 92053
Maker reference Maker reference 675783

SPRING ACTIONNEUR LOCK DE SEAT OEM PIAGGIO COMMON A LA RANGE-675783

More information

Quantity required : 1

SCREW TH (4X35) OEM PIAGGIO COMMON A LA RANGE-584121

11
P2R reference P2R reference 67293
Maker reference Maker reference 584121

SCREW TH (4X35) OEM PIAGGIO COMMON A LA RANGE-584121

More information

Quantity required : 2

NUT AUTOBLOQUANT/NYLSTOP (M4X70) OEM PIAGGIO COMMON A LA RANGE-577620

12
P2R reference P2R reference 67162
Maker reference Maker reference 577620

NUT AUTOBLOQUANT/NYLSTOP (M4X70) OEM PIAGGIO COMMON A LA RANGE-577620

More information

Quantity required : 2

COVER DE CONTACTEUR A CLES OEM PIAGGIO 125-250-300-400-500 MP3 2008 > 2014-652624

13
P2R reference P2R reference 87299
Maker reference Maker reference 652624

COVER DE CONTACTEUR A CLES OEM PIAGGIO 125-250-300-400-500 MP3 2008 > 2014-652624

More information

Quantity required : 1
