Vehicle Exploded View - GILERA FUOCO 500 E3 2007-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

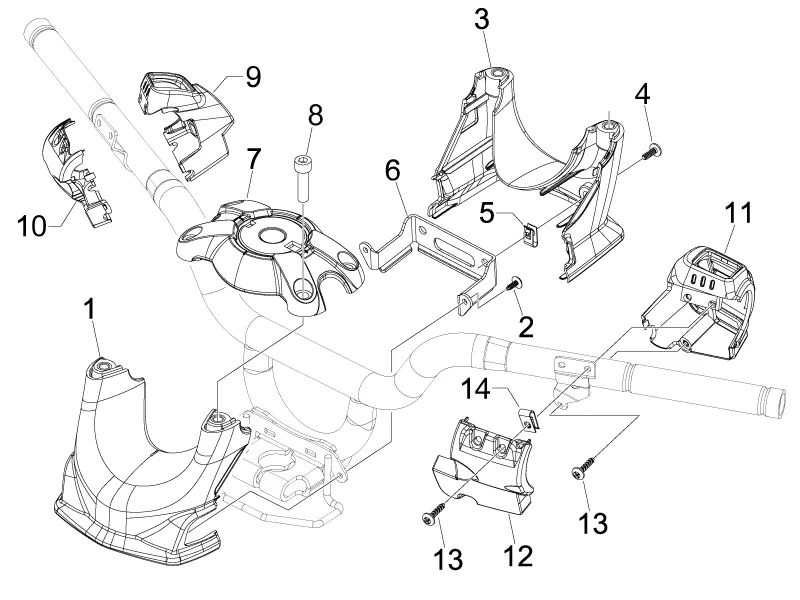

Guidon/direction : 03.01 COUVERTURES GUIDON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/173/Fuoco_500_E3_2007-2013-185.png)
1 |
655668000C-FRONT PANEL AV PROTECTOR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/2/img/66092.jpg)
2 |
SCREW AUTOTARAUDEUSE (3. 85X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-270793 More informationQuantity required : 2 |
||||||
|
3 |
655667000C-COVER HANDLEBAR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/4/8/2/img/85482.jpg)
4 |
SCREW BTR HEAD BOMBEE (6X16) OEM PIAGGIO COMMON A LA RANGE-624995 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
5 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 2 |
||||||
|
6 |
654099-BRACKET SWITCH More informationQuantity required : 1 |
||||||
|
6 |
654945-BRACKET SWITCH More informationQuantity required : 1 |
||||||
|
7 |
653769 - COUVRE POIGNEE More informationQuantity required : 1 |
||||||
|
7 |
6537690090 - COUVRE POIGNEE More informationQuantity required : 1 |
||||||
|
7 |
65376900EQ - COUVRE POIGNEE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/6/9/img/67369.jpg)
8 |
SCREW BTR (8X25) OEM PIAGGIO COMMON A LA RANGE-598919 More informationQuantity required : 4 |
||||||
|
9 |
BRACKET DE SWITCH RIGHT OEM PIAGGIO GILERA 500 FUOCO 2007 > 2014-653763 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/7/9/8/8/img/87988.jpg)
10 |
COVER FRONT DE SWITCH RIGHT OEM PIAGGIO GILERA 500 FUOCO-653765 More informationQuantity required : 1 |
||||||
|
11 |
SWITCH LEFT OEM PIAGGIO GILERA 500 FUOCO-653764 More informationQuantity required : 1 |
||||||
|
12 |
COVER FRONT DE SWITCH LEFT OEM PIAGGIO GILERA 500 FUOCO-653766 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/6/6/3/img/67663.jpg)
13 |
SCREW BTR HEAD BOMBEE (4X10) OEM PIAGGIO COMMON A LA RANGE-621914 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/1/9/3/img/95193.jpg)
14 |
NUT SHEET METAL (3, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017418 More informationQuantity required : 4 |
