Vehicle Exploded View - GILERA FUOCO 500 E3 2007-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

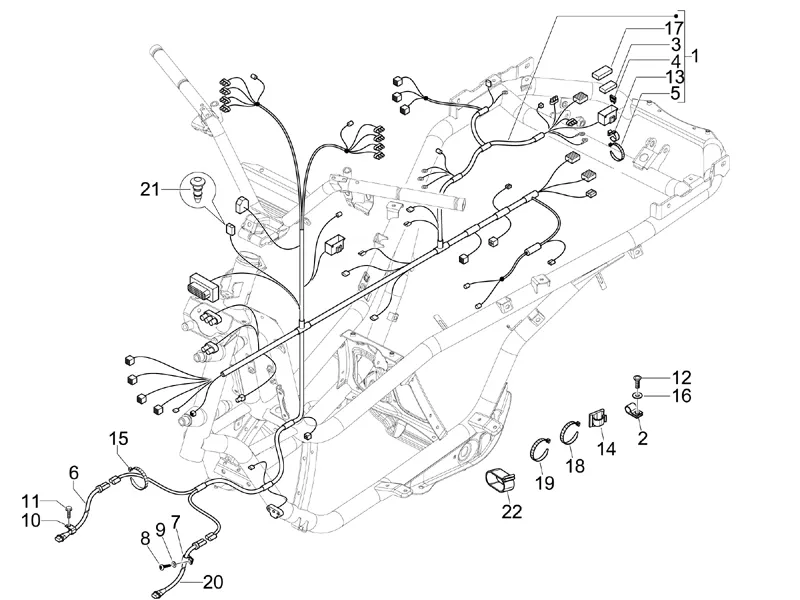

Installation électrique : 06.08 FAISCEAU DE CÂBLES PRINCIPAL
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/173/Fuoco_500_E3_2007-2013-269.png)
1 |
642631-WIRING HARNESS * More informationQuantity required : 1 |
||||||
|
2 |
640590-CLAMP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/0/0/img/67200.jpg)
3 |
CAPUCHON/PROTECTOR COSSE OEM PIAGGIO COMMON A LA RANGE-581061 More informationQuantity required : 1 |
||||||
|
3 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/4/img/66004.jpg)
4 |
BLADE FUSE STANDARD 7, 5A OEM PIAGGIO COMMON A LA RANGE-252945 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/4/4/img/66244.jpg)
4 |
BLADE FUSE STANDARD 15A OEM PIAGGIO COMMON A LA RANGE-290860 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/6/3/0/img/110630.jpg)
4 |
BLADE FUSE STANDARD 20A OEM PIAGGIO COMMON A TOUTE LA RANGE-580561 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/0/1/img/73401.jpg)
4 |
BLADE FUSE STANDARD 30A OEM PIAGGIO COMMON A LA RANGE-CM225730 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/8/4/6/img/81846.jpg)
4 |
BLADE FUSE STANDARD 3A OEM PIAGGIO COMMON A LA RANGE-582930 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/2/img/65742.jpg)
5 |
HOSE CLAMP NYLON TYPE RILSAN 180 MM OEM PIAGGIO COMMON A LA RANGE-145298 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/3/9/7/img/86397.jpg)
6 |
WIRING HARNESS ABS RIGHT OEM PIAGGIO 125-250-400 MP3 2006 >, 300-500 MP3 2010 >, 125-300 YOURBAN 2011 >/GILERA 500 FUOCO 2007 >-642549 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/0/1/img/66101.jpg)
7 |
CLAMP FITTING KIT HOSE OEM PIAGGIO COMMON A LA RANGE-271477 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/2/img/66092.jpg)
8 |
SCREW AUTOTARAUDEUSE (3. 85X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-270793 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/7/1/img/65371.jpg)
9 |
WASHER PLATE (4. 2X16) OEM PIAGGIO COMMON A LA RANGE-013963 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/0/1/img/67101.jpg)
10 |
CLAMP MOUNTING WIRING OU HOSE OEM PIAGGIO COMMON A LA RANGE-573918 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/5/9/img/70959.jpg)
11 |
SCREW FLANGE TH (6X10) OEM PIAGGIO COMMON A LA RANGE-969296 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/7/6/img/66376.jpg)
12 |
SCREW CRUCIFORME (5X12) OEM PIAGGIO COMMON A LA RANGE-430264 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/0/2/img/67302.jpg)
13 |
SPRING DE CONNECTEUR OEM PIAGGIO COMMON A LA RANGE-584520 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/6/1/img/67161.jpg)
14 |
CLIPS ADHESIF OEM PIAGGIO COMMON A LA RANGE-577594 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/7/img/66017.jpg)
15 |
HOSE CLAMP NYLON TYPE RILSAN 4, 8X270MM OEM PIAGGIO COMMON A LA RANGE-257134 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/2/img/65342.jpg)
16 |
WASHER A TEETH (5, 3X10) OEM PIAGGIO COMMON A LA RANGE-012528 More informationQuantity required : 1 |
||||||
|
17 |
292577-COVER More informationQuantity required : 1 |
||||||
|
18 |
HOSE CLAMP NYLON TYPE RILSAN 4, 8X270MM OEM PIAGGIO COMMON A LA RANGE-257134 More informationQuantity required : 13 |
||||||
|
19 |
HOSE CLAMP NYLON TYPE RILSAN 180 MM OEM PIAGGIO COMMON A LA RANGE-145298 More informationQuantity required : 16 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/3/9/8/img/86398.jpg)
20 |
WIRING HARNESS ABS LEFT OEM PIAGGIO 125-250-400 MP3 2006 >, 300-500 MP3 2010 >, 125-300 YOURBAN 2011 >/GILERA 500 FUOCO 2007 >-642550 More informationQuantity required : 1 |
||||||
|
21 |
SENSOR OF TEMPERATURE AMBIANTE OEM PIAGGIO 50 SXR APRILIA 2021 >-1D003720R More informationQuantity required : 1 |
||||||
|
21 |
SENSOR OF TEMPERATURE AMBIANTE OEM PIAGGIO 50 SXR APRILIA 2021 >-1D003720R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/1/8/img/72918.jpg)
22 |
CLIPS ATTACHE HARNESS OEM PIAGGIO COMMON A LA RANGE-CM013203 More informationQuantity required : 1 |
