Vehicle Exploded View - GILERA FUOCO 500 E3 2007-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

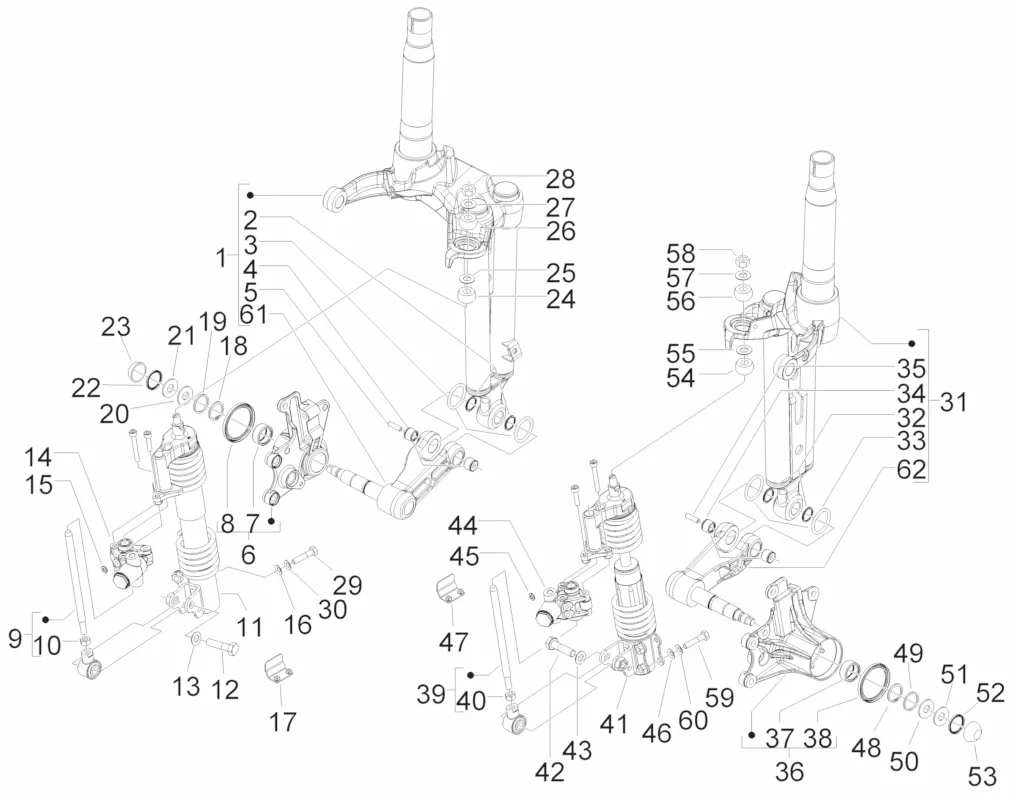

Suspensions - roues : 04.07 COMPONENTI DELLA FORCELLA (MINGXING)
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/173/Fuoco_500_E3_2007-2013-212.png)
1 |
FORK OEM FRONT RIGHT OEM PIAGGIO 125-250-300-400-500 MP3 2006 > 2017-6014745 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/0/7/img/65707.jpg)
2 |
GASKET OF ARM ARTICULATION DE FORK FRONT OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-119219 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/3/4/img/63834.jpg)
3 |
GASKET ARTICULATION DE BALANCIER DE FORK OEM PIAGGIO COMMON A LA RANGE VESPA ET MP3/GASKET THERMOSTAT PORTER-006731 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/2/6/2/img/75262.jpg)
4 |
CAGE A AIGUILLES ARTICULATION DE BALANCIER DE FORK OEM PIAGGIO COMMON A LA RANGE VESPA ET MP3-198513 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/7/9/img/65779.jpg)
5 |
SPINDLE D'ARTICULATION DE ARM SUSPENSION FRONT OEM PIAGGIO COMMON A LA RANGE SCOOTER VESPA/125-250-300-400-500 MP3-177451 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/3/0/5/1/img/83051.jpg)
6 |
BRACKET SHOCK ABSORBER ET BRAKE CALIPER FRONT RIGHT OEM PIAGGIO MP3 WITHOUT ABS-6018905 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/0/2/2/img/75022.jpg)
7 |
ROLLER BEARING FOR DRAWN CAP "PIAGGIO GENUINE PART" COMMON TO ALL MAXISCOOTER -177436 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/0/2/5/img/75025.jpg)
8 |
BUSH/GASKET (46X56X4) HUB FRONT OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-177494 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/9/8/2/img/86982.jpg)
9 |
ROD SHOCK ABSORBER FRONT RIGHT OU LEFT OEM PIAGGIO 125-250-300-400-500 MP3 2008 >-649683 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/3/img/65463.jpg)
10 |
NUT (M8X6, 5) OEM PIAGGIO COMMON A LA RANGE-020108 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/0/4/6/img/80046.jpg)
11 |
SHOCK ABSORBER FRONT RIGHT OEM PIAGGIO 125-250-400 MP3 2006 >, 300-500 MP3 2010 >, 125-300 YOURBAN 2012 >/GILERA 500 FUOCO 2007 >-56432R More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/9/5/2/img/86952.jpg)
12 |
SCREW BTR OEM PIAGGIO COMMON A LA RANGE-649392 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/6/img/65346.jpg)
13 |
WASHER EVENTAIL (10, 5) OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-012535 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/3/0/5/2/img/83052.jpg)
14 |
PINCES/CALIPER SHOCK ABSORBER FRONT RIGHT OEM PIAGGIO 125-250-300-400-500 MP3 208 > 2014, 350 MP3 2018 >, 125-300 YOURBAN 2012 >/GILERA 500 FUOCO 2007 >-601907 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/4/1/img/63841.jpg)
15 |
WASHER ELASTIC (6. 4X12X0. 5) OEM PIAGGIO COMMON A LA RANGE-006976 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
16 |
WASHER PLATE (8, 4X15X1, 5) OEM PIAGGIO COMMON A LA RANGE-003058 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/9/3/2/img/86932.jpg)
17 |
BRACKET/BRACKET CALIPER DE SUSPENSION FRONT OEM PIAGGIO 125-250-300-350-400-500 MP3-649259 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/1/6/img/63816.jpg)
18 |
CIRCLIPS (DIAMETER INNER MM 20MM) OEM PIAGGIO COMMON A TOUTE LA RANGE-006422 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/7/6/img/65776.jpg)
19 |
O-RING (34. 65X1. 78) OEM PIAGGIO COMMON A LA RANGE-177408 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/0/2/1/img/75021.jpg)
20 |
WASHER/SPACER OEM PIAGGIO COMMON A LA RANGE-177414 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/0/2/4/img/75024.jpg)
21 |
WASHER/SPACER OEM PIAGGIO COMMON A LA RANGE-177445 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/0/2/8/img/75028.jpg)
22 |
GASKET ETANCHEITE 26, 5 X 21 X 3 FORK MINGXING OEM PIAGGIO COMMON A LA RANGE-177521 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/6/0/1/5/img/76015.jpg)
23 |
CAP DE WHEEL OEM PIAGGIO COMMON A TOUTE LA RANGE SCOOTER ET MAXI SCOOTER CHROME-1C000523 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/4/9/6/6/img/74966.jpg)
24 |
BUFFER DE ARM DE FORK FRONT OEM PIAGGIO 125-250-300-400-500 MP3, 125-250-300 VESPA GTS, 50-125 VESPA LX, PRIMAVERA, SPRINT, VESPA-S, 125 VESPA PX-174085 More informationQuantity required : 1 |
|||||||||
|
25 |
WASHER EVENTAIL (10, 5) OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-012535 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/7/0/img/65770.jpg)
26 |
BUFFER/RUBBER SHOCK ABSORBER OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-174874 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/4/9/6/7/img/74967.jpg)
27 |
WASHER PLATE (10. 5X35X2) OEM PIAGGIO COMMON A LA RANGE-174088 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/9/6/4/img/73964.jpg)
28 |
NUT (M10) OEM PIAGGIO COMMON A LA RANGE-021210 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/9/3/img/68593.jpg)
29 |
SCREW BTR (8X45) OEM PIAGGIO COMMON A LA RANGE-826298 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/1/img/68491.jpg)
30 |
WASHER ELASTIC COURBE (8. 4X15X0. 8) OEM PIAGGIO COMMON A TOUTE LA RANGE-709047 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/9/8/3/img/82983.jpg)
31 |
FORK FRONT LEFT OEM PIAGGIO 125-250-300-400-500 MP3-6012735 More informationQuantity required : 1 |
|||||||||
|
32 |
GASKET OF ARM ARTICULATION DE FORK FRONT OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-119219 More informationQuantity required : 2 |
|||||||||
|
33 |
GASKET ARTICULATION DE BALANCIER DE FORK OEM PIAGGIO COMMON A LA RANGE VESPA ET MP3/GASKET THERMOSTAT PORTER-006731 More informationQuantity required : 2 |
|||||||||
|
34 |
CAGE A AIGUILLES ARTICULATION DE BALANCIER DE FORK OEM PIAGGIO COMMON A LA RANGE VESPA ET MP3-198513 More informationQuantity required : 2 |
|||||||||
|
35 |
SPINDLE D'ARTICULATION DE ARM SUSPENSION FRONT OEM PIAGGIO COMMON A LA RANGE SCOOTER VESPA/125-250-300-400-500 MP3-177451 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/3/0/5/0/img/83050.jpg)
36 |
BRACKET SHOCK ABSORBER ET BRAKE CALIPER FRONT LEFT OEM PIAGGIO MP3 WITHOUT ABS-6018835 More informationQuantity required : 1 |
|||||||||
|
37 |
ROLLER BEARING FOR DRAWN CAP "PIAGGIO GENUINE PART" COMMON TO ALL MAXISCOOTER -177436 More informationQuantity required : 2 |
|||||||||
|
38 |
BUSH/GASKET (46X56X4) HUB FRONT OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-177494 More informationQuantity required : 1 |
|||||||||
|
39 |
ROD SHOCK ABSORBER FRONT RIGHT OU LEFT OEM PIAGGIO 125-250-300-400-500 MP3 2008 >-649683 More informationQuantity required : 1 |
|||||||||
|
40 |
NUT (M8X6, 5) OEM PIAGGIO COMMON A LA RANGE-020108 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/0/4/4/img/80044.jpg)
41 |
SHOCK ABSORBER FRONT LEFT OEM PIAGGIO 125-250-400 MP3 2006 >, 300-500 MP3 2010 >, 125-300 YOURBAN 2012 >/GILERA 500 FUOCO 2007 >-56431R More informationQuantity required : 1 |
|||||||||
|
42 |
SCREW BTR OEM PIAGGIO COMMON A LA RANGE-649392 More informationQuantity required : 1 |
|||||||||
|
43 |
WASHER EVENTAIL (10, 5) OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-012535 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/3/0/3/7/img/83037.jpg)
44 |
PINCES/CALIPER SHOCK ABSORBER FRONT LEFT OEM PIAGGIO 125-250-300-400-500 MP3 2008 > 2014, 350 MP3 2018 >, 125-300 YOURBAN 2012 >/GILERA 500 FUOCO 2007 >-601727 More informationQuantity required : 1 |
|||||||||
|
45 |
WASHER ELASTIC (6. 4X12X0. 5) OEM PIAGGIO COMMON A LA RANGE-006976 More informationQuantity required : 2 |
|||||||||
|
46 |
WASHER PLATE (8, 4X15X1, 5) OEM PIAGGIO COMMON A LA RANGE-003058 More informationQuantity required : 2 |
|||||||||
|
47 |
BRACKET/BRACKET CALIPER DE SUSPENSION FRONT OEM PIAGGIO 125-250-300-350-400-500 MP3-649259 More informationQuantity required : 1 |
|||||||||
|
48 |
CIRCLIPS (DIAMETER INNER MM 20MM) OEM PIAGGIO COMMON A TOUTE LA RANGE-006422 More informationQuantity required : 1 |
|||||||||
|
49 |
O-RING (34. 65X1. 78) OEM PIAGGIO COMMON A LA RANGE-177408 More informationQuantity required : 1 |
|||||||||
|
50 |
WASHER/SPACER OEM PIAGGIO COMMON A LA RANGE-177414 More informationQuantity required : 1 |
|||||||||
|
51 |
WASHER/SPACER OEM PIAGGIO COMMON A LA RANGE-177445 More informationQuantity required : 1 |
|||||||||
|
52 |
GASKET ETANCHEITE 26, 5 X 21 X 3 FORK MINGXING OEM PIAGGIO COMMON A LA RANGE-177521 More informationQuantity required : 1 |
|||||||||
|
53 |
CAP DE WHEEL OEM PIAGGIO COMMON A TOUTE LA RANGE SCOOTER ET MAXI SCOOTER CHROME-1C000523 More informationQuantity required : 1 |
|||||||||
|
54 |
BUFFER DE ARM DE FORK FRONT OEM PIAGGIO 125-250-300-400-500 MP3, 125-250-300 VESPA GTS, 50-125 VESPA LX, PRIMAVERA, SPRINT, VESPA-S, 125 VESPA PX-174085 More informationQuantity required : 1 |
|||||||||
|
55 |
WASHER EVENTAIL (10, 5) OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-012535 More informationQuantity required : 1 |
|||||||||
|
56 |
BUFFER/RUBBER SHOCK ABSORBER OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-174874 More informationQuantity required : 1 |
|||||||||
|
57 |
WASHER PLATE (10. 5X35X2) OEM PIAGGIO COMMON A LA RANGE-174088 More informationQuantity required : 1 |
|||||||||
|
58 |
NUT (M10) OEM PIAGGIO COMMON A LA RANGE-021210 More informationQuantity required : 1 |
|||||||||
|
59 |
SCREW BTR (8X45) OEM PIAGGIO COMMON A LA RANGE-826298 More informationQuantity required : 2 |
|||||||||
|
60 |
WASHER ELASTIC COURBE (8. 4X15X0. 8) OEM PIAGGIO COMMON A TOUTE LA RANGE-709047 More informationQuantity required : 2 |
|||||||||
|
61 |
6483985-ARM SUSPENSION AV. DRT More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/8/3/6/img/86836.jpg)
62 |
ARM DE SUSPENSION FRONT OEM PIAGGIO 125-250-300 VESPA GTS, 125 VESPA LX, PRIMAVERA, SPRINT, VESPA-S, 125-300 YOURBAN-6483975 More informationQuantity required : 1 |
|||||||||
All the exploded views of this vehicle
-
-
