Vehicle Exploded View - APRILIA SHIVER 750 2007-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

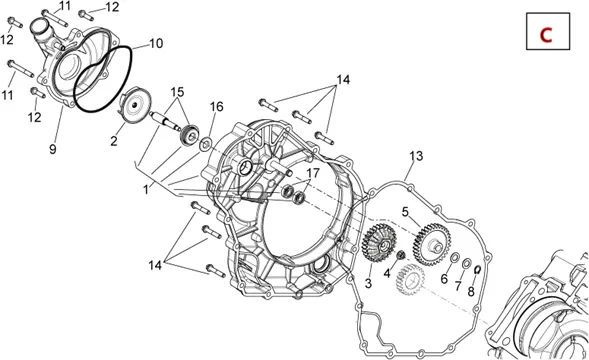

Moteur : 29.50 POMPE À EAU
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/741/Shiver_750_2007-2009_29.50.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/3/0/3/img/41303.jpg)
1 |
COVER CLUTCH OEM PIAGGIO APRILIA 750 DORSODURO 2008 > 2016, SHIVER 2007 > 2014-871657 More informationQuantity required : 1 |
||||||
2 |
873599-WHEEL PUMP WATER COMPL. More informationQuantity required : 1 |
||||||
|
3 |
871180-ENGRANAGE More informationQuantity required : 1 |
||||||
|
4 |
872816 - ECROU More informationQuantity required : 1 |
||||||
|
5 |
8751945 - ENGRENAGE More informationQuantity required : 1 |
||||||
|
6 |
848280-WASHER More informationQuantity required : 1 |
||||||
|
7 |
873473-WASHER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/1/0/img/63810.jpg)
8 |
CLIPS/CIRCLIPS (9. 3) DE PULLEY ENTRAINEE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-006410 More informationQuantity required : 1 |
||||||
|
9 |
B0130685-COVER PUMP WATER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/1/9/7/2/img/61972.jpg)
10 |
GASKET BODY PUMP WATER OEM PIAGGIO CAPOONORD, DORSODURO, SHIVER MOTO-GUZZI-B013527 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/3/3/img/70533.jpg)
11 |
SCREW FLANGE TH (6X55) OEM PIAGGIO COMMON A LA RANGE-874552 More informationQuantity required : 2 |
||||||
|
12 |
871094-SCREW More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/4/1/1/img/41411.jpg)
13 |
GASKET OF COVER COTE CLUTCH OEM PIAGGIO 750 DORSODURO, SHIVER APRILIA-874619 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/3/2/img/70532.jpg)
14 |
SCREW TH FLANGE (6X40) OEM PIAGGIO COMMON A LA RANGE-874550 More informationQuantity required : 13 |
||||||
|
15 |
8734975-SHAFT WATER PUMP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/2/9/3/img/41293.jpg)
16 |
871258 - CIRCLIPS More informationQuantity required : 1 |
||||||
|
17 |
871255-BEARING More informationQuantity required : 2 |
