Vehicle Exploded View - APRILIA SHIVER 750 2007-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

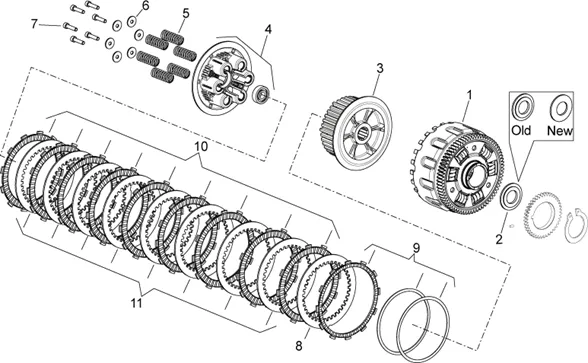

Moteur : 29.49 EMBRAGUE II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/741/Shiver_750_2007-2009_29.49.PNG)
1 |
877173-COMPLETE CLUTCH BELL More informationQuantity required : 1 |
|||||||||
|
2 |
873274-WASHER More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/3/1/2/img/43312.jpg)
2 |
WASHER CLUTCH OEM APRILIA COMMON A LA RANGE-974320 More informationQuantity required : 1 |
|||||||||
|
3 |
877174-HUB CLUTCH More informationQuantity required : 1 |
|||||||||
|
4 |
873719-PLATEAU POUSSEE CPL More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/5/7/4/img/41574.JPG)
5 |
SPRING DE PLATEAU CLUTCH OEM PIAGGIO APRILIA 750 SHIVER, DORSIDURO-880442 More informationQuantity required : 6 |
|||||||||
|
6 |
873717-WASHER More informationQuantity required : 6 |
|||||||||
|
7 |
873718-SCREW More informationQuantity required : 6 |
|||||||||
|
8 |
DISC CLUTCH ACIER OEM APRILIA 750 DORODURO, SHIVER-873725 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/8/5/5/img/40855.jpg)
9 |
KIT DISC CLUTCH ADLER OEM APRILIA 750 DORSODURO, SHIVER 2007 > 2016-860329 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/3/8/2/img/41382.jpg)
10 |
DISC CLUTCH MENANT ADLER OEM PIAGGIO APRILIA 750 SHIVER 2007 >, DORSODURO 2008 >-873724 More informationQuantity required : 9 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/3/8/1/img/41381.jpg)
11 |
DISC CLUTCH MENE ADLER OEM PIAGGIO APRILIA 750 SHIVER, DORSODURO 2007 > 2016-873723 More informationQuantity required : 8 |
|||||||||
