Vehicle Exploded View - APRILIA SHIVER 750 2007-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

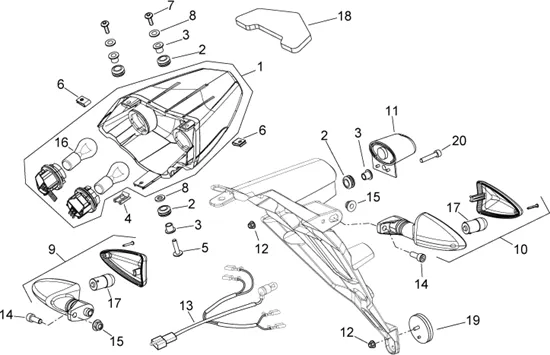

Chassis : 28.31 FEUX ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/741/Shiver_750_2007-2009_28.31.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/9/1/6/7/img/39167.jpg)
1 |
LAMP REAR OEM PIAGGIO APRILIA 750-900 SHIVER-851638 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/7/6/img/71276.jpg)
2 |
RUBBER OEM PIAGGIO COMMON A LA RANGE-AP8112600 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/8/5/img/71485.jpg)
3 |
BUSH EN T INNER 5 MM OEM PIAGGIO COMMON A LA RANGE-AP8121795 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
4 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/7/img/71937.jpg)
5 |
SCREW BTR HEAD BOMBEE (5X25) OEM PIAGGIO COMMON A LA RANGE-AP8152270 More informationQuantity required : 1 |
||||||
|
6 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
7 |
SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/3/img/71873.jpg)
8 |
WASHER PLATE (5, 5X15X1, 2) OEM PIAGGIO COMMON A LA RANGE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/8/3/2/5/img/48325.jpg)
9 |
INDICATOR AVG/ARD OEM PIAGGIO 50-125 APRILIA RS4 2011 >, TUONO, 750 SHIVER, 1000 TUONO, 1200 CAPONORD-AP8127803 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/8/3/2/6/img/48326.jpg)
10 |
INDICATOR AVD/ARG OEM PIAGGIO 50-125 APRILIA RS4 2011 >, TUONO, 750 SHIVER, 1000 TUONO, 1200 CAPONORD-AP8127804 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/6/4/2/img/69642.jpg)
11 |
ECLAIRAGE DE PLATE D'IMMATRICULATION OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-85256R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/3/img/71963.jpg)
12 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M5) OEM PIAGGIO COMMON A LA RANGE-AP81523066 More informationQuantity required : 2 |
||||||
13 |
859812-WIRING LAMP AR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/4/img/71824.jpg)
14 |
SCREW BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8150137 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
15 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/2/7/img/65727.jpg)
16 |
AMPOULE/LAMPE 12V 21/5W BAY15D/P21/5 OEM PIAGGIO COMMON A LA RANGE-129953 More informationQuantity required : 2 |
||||||
|
17 |
AMPOULE/LAMPE 12V 10W RY10 ORANGE OEM PIAGGIO COMMON A LA RANGE-AP8127489 More informationQuantity required : 2 |
||||||
|
18 |
856087-EPONGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/2/5/img/72325.jpg)
19 |
CATADIOPTRE REAR OEM PIAGGIO COMMON A LA RANGE-AP8224164 More informationQuantity required : 1 |
||||||
|
20 |
AP8150350-SCREW TCEI M 3X25 More informationQuantity required : 1 |
