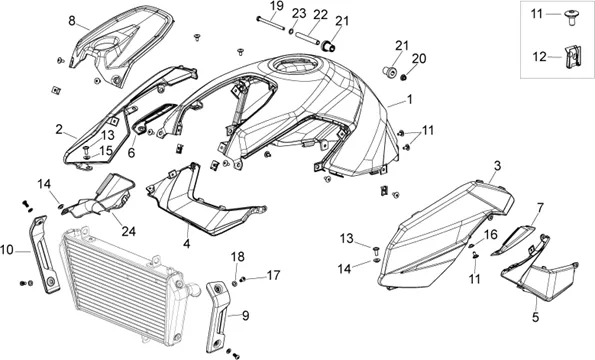

Chassis : 28.11 CARROSSERIE CENTRALE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/741/Shiver_750_2007-2009_28.11.PNG)
1 |
85166100EE - COUVERCLE More informationQuantity required : 1 |
||||||
|
1 |
85166100XA1 - CACHE-RESERVOIR, ORANGE More informationQuantity required : 1 |
||||||
|
1 |
85166100XB1 - CACHE-RESERVOIR, BLANC More informationQuantity required : 1 |
||||||
|
1 |
85166100XD1 - CACHE-RESERVOIR, BLEU More informationQuantity required : 1 |
||||||
|
1 |
85166100XG3 - CACHE-RESERVOIR, JAUNE More informationQuantity required : 1 |
||||||
|
1 |
85166100XN2 - COUVERCLE More informationQuantity required : 1 |
||||||
|
1 |
85166100XN7 - CACHE-RESERVOIR, NOIR More informationQuantity required : 1 |
||||||
|
1 |
85166100XR4 - CACHE-RESERVOIR, ROUGE More informationQuantity required : 1 |
||||||
|
1 |
85166100XR5 - CACHE-RESERVOIR, ROUGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/9/1/7/3/img/39173.jpg)
2 |
FUEL TANK PROTECTION (RIGHT) "PIAGGIO GENUINE PART" APRILIA 750 SHIVER WHITE -85165700XB1 More informationQuantity required : 1 |
||||||
|
2 |
85165700XE4 - CANALISATION More informationQuantity required : 1 |
||||||
|
2 |
FUEL TANK PROTECTION (RIGHT) "PIAGGIO GENUINE PART" APRILIA SHIVER 750 2007>2009 BLACK -85165700XEA- More informationQuantity required : 1 |
||||||
|
2 |
85165700XED - CONVOYEUR D More informationQuantity required : 1 |
||||||
|
2 |
85165700XG3 - CONVOYEUR D, JAUNE More informationQuantity required : 1 |
||||||
|
2 |
85165700XN7 - CONVOYEUR AIR, NOIR More informationQuantity required : 1 |
||||||
|
2 |
85165700XR4 - CONVOYEUR AIR, ROUGE More informationQuantity required : 1 |
||||||
|
2 |
85165700XR5 - CONVOYEUR D More informationQuantity required : 1 |
||||||
|
3 |
FUEL TANK PROTECTION (LEFT) "PIAGGIO GENUINE PART" APRILIA 750 SHIVER BLANC -85165800XB1- More informationQuantity required : 1 |
||||||
|
3 |
85165800XE4 - CANALISATION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/9/1/8/3/img/39183.jpg)
3 |
FUEL TANK PROTECTION (LEFT) "PIAGGIO GENUINE PART" APRILIA 750 SHIVER GRIS -85165800XEA- More informationQuantity required : 1 |
||||||
|
3 |
85165800XED - CONVOYEUR G More informationQuantity required : 1 |
||||||
|
3 |
85165800XG3 - CONVOYEUR G, JAUNE More informationQuantity required : 1 |
||||||
|
3 |
85165800XN7 - CONVOYEUR G, NOIR More informationQuantity required : 1 |
||||||
|
3 |
85165800XR4 - CONVOYEUR G, ROUGE More informationQuantity required : 1 |
||||||
|
3 |
85165800XR5 - CONVOYEUR G More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/9/1/8/9/img/39189.jpg)
4 |
COVER LATERAL RIGHT OEM APRILIA 750 SHIVER 2007 > 2010-851659 More informationQuantity required : 1 |
||||||
|
5 |
851660-COVER More informationQuantity required : 1 |
||||||
|
6 |
PROTECTOR-CHOCS DE FAIRING FRONT RIGHT OEM PIAGGIO APRILIA 750 SHIVER-851663 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/9/2/0/7/img/39207.jpg)
7 |
PROTECTOR-CHOCS DE FAIRING FRONT LEFT OEM PIAGGIO APRILIA 750 SHIVER-851664 More informationQuantity required : 1 |
||||||
|
8 |
COVER/COVER TANK OEM APRILIA 750-900 SHIVER-2B003881 More informationQuantity required : 1 |
||||||
|
8 |
COVER/COVER TANK OEM APRILIA 750-900 SHIVER-2B003881 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/0/7/4/5/img/200745.jpg)
9 |
PROTECTOR DE RADIATOR (PAIRE) OEM PIAGGIO APRILIA 750 SHIVER 2007 >, 900 SHIVER 2017 >-2B010474 More informationQuantity required : 1 |
||||||
|
9 |
PROTECTOR DE RADIATOR (PAIRE) OEM PIAGGIO APRILIA 750 SHIVER 2007 >, 900 SHIVER 2017 >-2B010474 More informationQuantity required : 1 |
||||||
|
10 |
PROTECTOR DE RADIATOR (PAIRE) OEM PIAGGIO APRILIA 750 SHIVER 2007 >, 900 SHIVER 2017 >-2B010474 More informationQuantity required : 1 |
||||||
|
10 |
PROTECTOR DE RADIATOR (PAIRE) OEM PIAGGIO APRILIA 750 SHIVER 2007 >, 900 SHIVER 2017 >-2B010474 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/3/img/71973.jpg)
11 |
SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE MOTO-AP8152339 More informationQuantity required : 14 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
12 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 12 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/3/img/71933.jpg)
13 |
SCREW FLANGE BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152246 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/9/img/71429.jpg)
14 |
BUSH/SPACER (6) OEM PIAGGIO COMMON A LA RANGE-AP8121032 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/8/5/img/71485.jpg)
15 |
BUSH EN T INNER 5 MM OEM PIAGGIO COMMON A LA RANGE-AP8121795 More informationQuantity required : 1 |
||||||
|
16 |
843213-WASHER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/2/0/img/50920.jpg)
17 |
SCREW BTR HEAD BOMBEE (6X12) OEM PIAGGIO COMMON A LA RANGE-AP8150537 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/6/8/img/50868.jpg)
18 |
WASHER PLATE (6X12, 4) OEM PIAGGIO COMMON A LA RANGE-AP8150380 More informationQuantity required : 4 |
||||||
|
19 |
AP8150459-SCREW More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
20 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 1 |
||||||
|
21 |
AP8123934-RUBBER More informationQuantity required : 2 |
||||||
|
22 |
AP8134419-BUSH ATTACHE TANK More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/7/img/71807.jpg)
23 |
WASHER PLATE (6, 4X12, 5) OEM PIAGGIO COMMON A LA RANGE-AP8150014 More informationQuantity required : 1 |
||||||
|
24 |
856267 - COUVERCLE VASE D'EXPANSION More informationQuantity required : 1 |
