Vehicle Exploded View - APRILIA SHIVER 750 2007-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

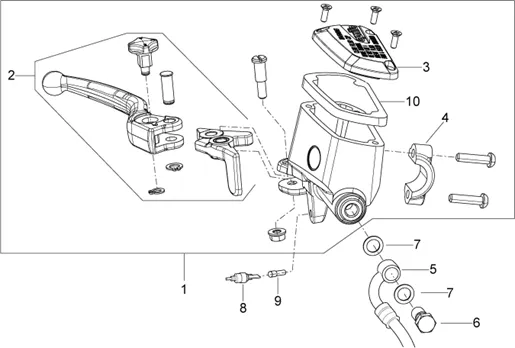

Chassis : 28.21 MAÎT. CYL. FREIN AV
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/741/Shiver_750_2007-2009_28.21.PNG)
1 |
896384-MA? T. CYL. BRAKE FRONT More informationQuantity required : 1 |
||||||
|
1 |
896384-MA? T. CYL. BRAKE FRONT More informationQuantity required : 1 |
||||||
|
1 |
859781 - MA?T. CYL. FREIN AV More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/3/9/img/70839.jpg)
2 |
BRAKE LEVER FRONT OEM PIAGGIO APRILIA 750 DORSODURO 2008 >, SHIVER 2007 >, 850 MANA 2007 >/MOTO-GUZZI 1400 CALIFORNIA 2012 >, AUDACE 2015 >, ELDORADO 2015 >, V85TT 2019 >-2B006871 More informationQuantity required : 1 |
||||||
|
3 |
896336-COVER More informationQuantity required : 1 |
||||||
|
4 |
856050-CAVALIER More informationQuantity required : 1 |
||||||
|
5 |
852416 - TUYAU More informationQuantity required : 1 |
||||||
|
5 |
859782-FRONT BRAKE DISC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/2/img/71282.jpg)
6 |
SCREW HOSE OIL (10MM) OEM PIAGGIO COMMON A LA RANGE-AP8113003 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
7 |
WASHER (10X14X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8113004 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/5/8/img/67958.jpg)
8 |
CONTACTEUR LAMP STOP OEM PIAGGIO 125-500 MP3, X10, X-EVO, BEVERLY, RANGE VESPA/GILERA 125-300-500 NEXUS/APRILIA 750-900 SHIVER, DORSODURO, 125-500 SCARABEO-642032 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/7/0/img/72270.jpg)
9 |
RUBBER CONTACTEUR DE STOP OEM DERBI 50 SENDA 2018 >/GILERA 50 SMT 2018 >-AP8220135 More informationQuantity required : 1 |
||||||
|
10 |
858423-DIAPHRAGME More informationQuantity required : 1 |
