Vehicle Exploded View - APRILIA SHIVER 750 2007-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

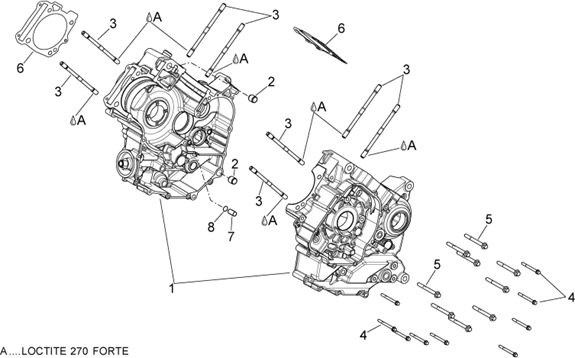

Moteur : 29.36 CARTERS I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/741/Shiver_750_2007-2009_29.36.PNG)
1 |
B0144955001-CASING More informationQuantity required : 1 |
||||||
|
1 |
B0144955002 - CARTER More informationQuantity required : 1 |
||||||
|
1 |
B0144955003 - CARTER More informationQuantity required : 1 |
||||||
|
1 |
B0144955004-CASING More informationQuantity required : 1 |
||||||
|
1 |
8498725004-CASING More informationQuantity required : 1 |
||||||
|
2 |
974051-STUD More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/2/6/img/109026.jpg)
3 |
STUD (10X1. 25X166) OEM PIAGGIO COMMON A LA RANGE-1A003631R More informationQuantity required : 8 |
||||||
|
4 |
874548-SCREW FLANGE More informationQuantity required : 8 |
||||||
|
5 |
848465-SCREW More informationQuantity required : 9 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/7/7/5/img/62775.jpg)
6 |
CYLINDER BASE GASKET DE CYLINDER (0. 4) OEM APRILIA 750 DORSODURO, SHIVER 2007 > 2016-CM154101 More informationQuantity required : 1 |
||||||
|
6 |
CM154102-GASKET More informationQuantity required : 1 |
||||||
|
6 |
CM154104-GASKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/6/img/72696.jpg)
7 |
BUSH DE CENTRAGE (9, 5X15) CASING OEM PIAGGIO COMMON ALA RANGE-B015956 More informationQuantity required : 1 |
||||||
|
8 |
834317-CIRCLIPS More informationQuantity required : 1 |
All the exploded views of this vehicle
-
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/741/Shiver_750_2007-2009.PNG)
-
28.01 Chassis I
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/741/Shiver_750_2007-2009_28.01.PNG)
-
28.02 Chassis II
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/741/Shiver_750_2007-2009_28.02.PNG)
-
28.03 Accroche-selle
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/741/Shiver_750_2007-2009_28.03.PNG)
-
28.04 Repose-Pieds
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/741/Shiver_750_2007-2009_28.04.PNG)
-
28.05 Béquille
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/741/Shiver_750_2007-2009_28.05.PNG)
-
28.06 Direction
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/741/Shiver_750_2007-2009_28.06.PNG)
-
28.07 Fourche AV
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/741/Shiver_750_2007-2009_28.07.PNG)
-
28.08 Fourche arriere
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/741/Shiver_750_2007-2009_28.08.PNG)
-
28.09 Suspension arriere
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/741/Shiver_750_2007-2009_28.09.PNG)
-
28.10 Carrosserie av. - Garde-boue AV
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/741/Shiver_750_2007-2009_28.10.PNG)
-
28.11 Carrosserie centrale
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/741/Shiver_750_2007-2009_28.11.PNG)
-
28.12 Réservoir essence
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/741/Shiver_750_2007-2009_28.12.PNG)
-
28.13 Pompe essence
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/741/Shiver_750_2007-2009_28.13.PNG)
-
28.14 Selle
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/741/Shiver_750_2007-2009_28.14.PNG)
-
28.15 Carrosserie posterieure I
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/741/Shiver_750_2007-2009_28.15.PNG)
-
28.16 Carrosserie posterieure II
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/741/Shiver_750_2007-2009_28.16.PNG)
-
28.17 Carrosserie posterieure III
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/741/Shiver_750_2007-2009_28.17.PNG)
-
28.18 Tableau de bord
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/741/Shiver_750_2007-2009_28.18.PNG)
-
28.19 Guidon - Commandes
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/741/Shiver_750_2007-2009_28.19.PNG)
-
28.20 Pompe embrayage
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/741/Shiver_750_2007-2009_28.20.PNG)
-
28.21 Maît. cyl. frein AV
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/741/Shiver_750_2007-2009_28.21.PNG)
-
28.22 Installation refroidissement
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/741/Shiver_750_2007-2009_28.22.PNG)
-
28.23 Corps filtre
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/741/Shiver_750_2007-2009_28.23.PNG)
-
28.25 Groupe echappement
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/741/Shiver_750_2007-2009_28.25.PNG)
-
28.26 Roue Av.
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/741/Shiver_750_2007-2009_28.26.PNG)
-
28.27 Pince frein avant
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/741/Shiver_750_2007-2009_28.27.PNG)
-
28.28 Roue arrière
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/741/Shiver_750_2007-2009_28.28.PNG)
-
28.29 Sys.frein arrière
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/741/Shiver_750_2007-2009_28.29.PNG)
-
28.30 Feux avant
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/741/Shiver_750_2007-2009_28.30.PNG)
-
28.31 Feux arriere
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/741/Shiver_750_2007-2009_28.31.PNG)
-
28.32 Circuit electrique I
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/741/Shiver_750_2007-2009_28.32.PNG)
-
28.33 Circuit electrique II
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/741/Shiver_750_2007-2009_28.33.PNG)
-
28.34 Kit serrure
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/741/Shiver_750_2007-2009_28.34.PNG)
-
28.35 Plaquettes-decal.
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/741/Shiver_750_2007-2009_28.35.PNG)
-
28.54 Support
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/741/Shiver_750_2007-2009_28.54.PNG)
-
28.55 Système frein ABS
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/741/Shiver_750_2007-2009_28.55.PNG)
-
28.56 Décalco USA
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/741/Shiver_750_2007-2009_28.56.PNG)
-
28.57 Front fork II
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/741/Shiver_750_2007-2009_28.57.PNG)
-
28.58 Front fork III
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/741/Shiver_750_2007-2009_28.58.PNG)
-
29.24 Moteur
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/741/Shiver_750_2007-2009_29.24.PNG)
-

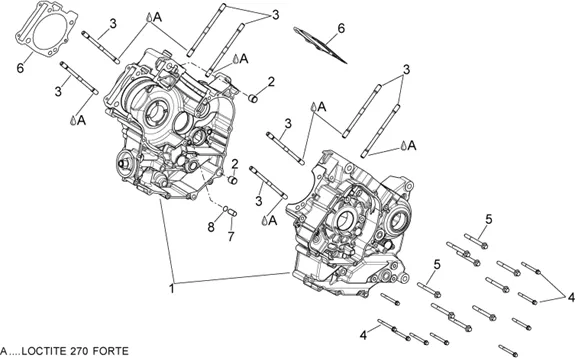

29.36 Carters I
