Vehicle Exploded View - APRILIA SHIVER 750 2007-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

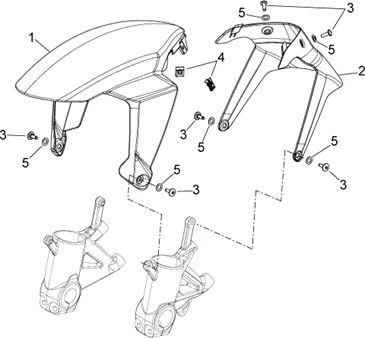

Chassis : 28.10 CARROSSERIE AV. - GARDE-BOUE AV
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/741/Shiver_750_2007-2009_28.10.PNG)
1 |
86054000EE - GARDE-BOUE AV.GRIS More informationQuantity required : 1 |
||||||
|
1 |
86054000XA1 - GARDE-BOUE AV More informationQuantity required : 1 |
||||||
|
1 |
86054000XB1 - GARDE-BOUE AVANT BLANC More informationQuantity required : 1 |
||||||
|
1 |
86054000XD1 - GARDE-BOUE AV BLEU More informationQuantity required : 1 |
||||||
|
1 |
Garde boue AV. |
||||||
|
1 |
86054000XG3 - G.-B. AV.P.JAUNE More informationQuantity required : 1 |
||||||
|
1 |
86054000XN2 - GARDE-B AV.NOIR More informationQuantity required : 1 |
||||||
|
1 |
86054000XR4-GUARD-MUD FRONT PEINT RED More informationQuantity required : 0 |
||||||
|
1 |
86054000XR5 - GARDE-BOUE AVANT PEINT ROUGE More informationQuantity required : 0 |
||||||
|
1 |
86054000XN7 - GARDE-B AV.NOIR More informationQuantity required : 0 |
||||||
|
2 |
85166600XE9-GUARD-MUD AV GREY More informationQuantity required : 0 |
||||||
|
2 |
85166600XN3-GUARD-B AV. BLACK More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/3/img/71973.jpg)
3 |
SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE MOTO-AP8152339 More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
4 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/0/img/71870.jpg)
5 |
WASHER ELASTIC COURBE (8. 5X15X0. 8) OEM PIAGGIO COMMON A LA RANGE-AP8150376 More informationQuantity required : 0 |
