Vehicle Exploded View - APRILIA SHIVER 750 2007-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

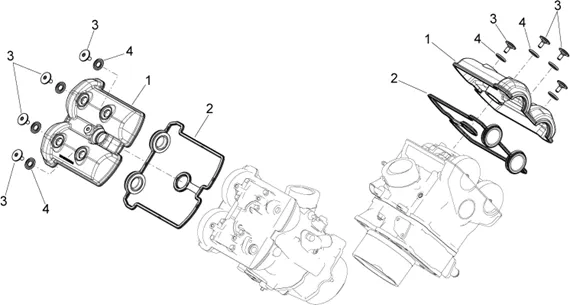

Moteur : 29.41 COUVERCLE SOUPAPES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/741/Shiver_750_2007-2009_29.41.PNG)
1 |
873541-COVER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/9/0/0/6/img/39006.jpg)
2 |
GASKET COVER DE CYLINDER HEAD (SPECIFICATION OLD) OEM APRILIA 750 DORSODURO 2008 >, 900 DORSODURO 2017 >, 750 SHIVER 2007 >, 900 SHIVER 2017 >-83013R More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/2/4/img/69224.jpg)
3 |
SCREW SPECIALE COVER DE CYLINDER HEAD OEM APRILIA 660 RS, TUAREG, TUONO/750-900 SHIVER, DORSODURO/1200 DORSODURO, CAPONORD-842291 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/0/2/img/68902.jpg)
4 |
GASKET OF SCREW COVER DE CYLINDER HEAD OEM PIAGGIO 125-400-500 MP3, BEVERLY, 125-350 X10/APRILIA 750 DORSODURO, SHIVER, 850 SRV/GILERA 250-300-500 ATLANTIC, NEXUS/MOTO-GUZZI 1200 SPORT, GRISO-830249 More informationQuantity required : 8 |
