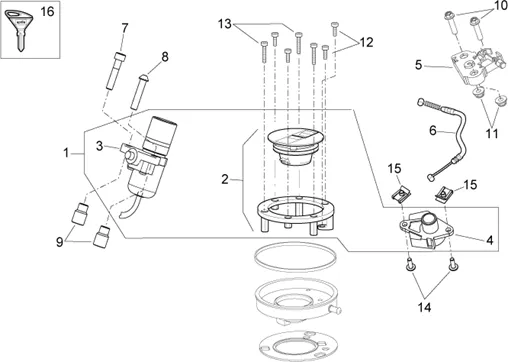

Chassis : 28.34 KIT SERRURE
Kit serrure
Search
IGNITION SWITCH/LOCK OEM PIAGGIO 750-900 SHIVER APRILIA-2B004342

1
P2R reference P2R reference 145792
Maker reference Maker reference 2B004342

IGNITION SWITCH/LOCK OEM PIAGGIO 750-900 SHIVER APRILIA-2B004342

More information

Quantity required : 1

B044454 - BOUCHON RESERVOIR ESSENCE

2
P2R reference P2R reference 62286
Maker reference Maker reference B044454

B044454 - BOUCHON RESERVOIR ESSENCE

More information

Quantity required : 1

860127 - COMMUTATEUR A CLEF

3
P2R reference P2R reference 40775
Maker reference Maker reference 860127

860127-SWITCH A CLEF

More information

Quantity required : 1

AP8104919 - SERRATURA SELLA

4
P2R reference P2R reference 45491
Maker reference Maker reference AP8104919

AP8104919-SERRATURA SELLA

More information

Quantity required : 1

AP8102913 - PL.FIX.SELLE PASS.

5
P2R reference P2R reference 71207
Maker reference Maker reference AP8102913

AP8102913-PL. FIX. SEAT PASS.

More information

Quantity required : 1

8516805 - GR. CABLES

6
P2R reference P2R reference 139217
Maker reference Maker reference 8516805

8516805-GR. CABLES

More information

Quantity required : 1

SCREW A ARRACHEMENT/AUTO-CASSANTE BTR (8X40) OEM PIAGGIO COMMON A LA RANGE-AP8150351

7
P2R reference P2R reference 71867
Maker reference Maker reference AP8150351

SCREW A ARRACHEMENT/AUTO-CASSANTE BTR (8X40) OEM PIAGGIO COMMON A LA RANGE-AP8150351

More information

Quantity required : 1

SCREW BTR (8X40) OEM PIAGGIO COMMON A LA RANGE-149104

8
P2R reference P2R reference 65747
Maker reference Maker reference 149104

SCREW BTR (8X40) OEM PIAGGIO COMMON A LA RANGE-149104

More information

Quantity required : 1

SPACER (8X12X26) OEM PIAGGIO COMMON A LA RANGE-AP8121773

9
P2R reference P2R reference 71484
Maker reference Maker reference AP8121773

SPACER (8X12X26) OEM PIAGGIO COMMON A LA RANGE-AP8121773

More information

Quantity required : 2

SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE-AP8152280

10
P2R reference P2R reference 71943
Maker reference Maker reference AP8152280

SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE-AP8152280

More information

Quantity required : 2

NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299

11
P2R reference P2R reference 71958
Maker reference Maker reference AP8152299

NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299

More information

Quantity required : 2

AP8150454 - VIS

12
P2R reference P2R reference 71890
Maker reference Maker reference AP8150454

AP8150454-SCREW

More information

Quantity required : 4

AP8150453 - VIS

13
P2R reference P2R reference 50880
Maker reference Maker reference AP8150453

SCREW BTR (5X30) OEM PIAGGIO COMMON A LA RANGE-AP8150453

More information

Quantity required : 3

SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298

14
P2R reference P2R reference 71957
Maker reference Maker reference AP8152298

SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298

More information

Quantity required : 2

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375

15
P2R reference P2R reference 71174
Maker reference Maker reference AP8102375

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375

More information

Quantity required : 2

EBAUCHE DE CLE OEM PIAGGIO APRILIA 750 SHIVER 2007 >, 900 SHIVER 2017 >, 750 DORSODURO 2008 >, 900 DORSODURO 2017 >, 1200 DORSODURO 2010 >, 1100 RSV-4 2019 >, 650 PEGASO, 850 MANA-B044413

16
P2R reference P2R reference 62274
Maker reference Maker reference B044413

EBAUCHE DE CLE OEM PIAGGIO APRILIA 750 SHIVER 2007 >, 900 SHIVER 2017 >, 750 DORSODURO 2008 >, 900 DORSODURO 2017 >, 1200 DORSODURO 2010 >, 1100 RSV-4 2019 >, 650 PEGASO, 850 MANA-B044413

More information

Quantity required : 1
