Vehicle Exploded View - APRILIA SHIVER 750 2007-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

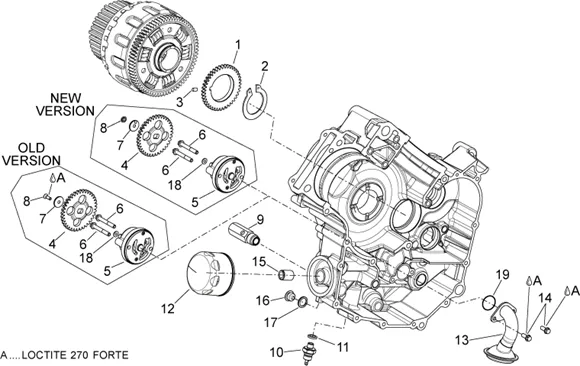

Moteur : 29.38 POMPE HUILE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/741/Shiver_750_2007-2009_29.38.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/3/1/9/img/43319.jpg)
1 |
GEAR MENANT PUMP OIL OEM PIAGGIO APRILIA CAPONORD 1200 2014 > 2017, DORSODURO 750-900-1200 2010 > 2017, SHIVER 750-900 2010 > 2018-974517 More informationQuantity required : 1 |
||||||
2 |
006450 CIRCLIPS S00645000 More informationQuantity required : 1 |
||||||
|
3 |
974157-ROLLER More informationQuantity required : 1 |
||||||
|
4 |
GEAR MENE PUMP OIL (NOUVELLE VERSION) OEM PIAGGIO APRILIA 1200 CAPONORD 2014 > 2017, 750-900-1200 DORSODURO 2010 > 2017, 750-900 SHIVER 2010 > 2018-873866 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/3/2/0/img/43320.jpg)
4 |
GEAR MENE PUMP OIL (ANCIENNE VERSION) OEM PIAGGIO APRILIA 750-900-1200 DORSODURO 2010 > 2017, 750-900 SHIVER 2010 > 2018-974518 More informationQuantity required : 1 |
||||||
|
5 |
873863-OIL PUMP COMPLETE More informationQuantity required : 1 |
||||||
|
6 |
878871-SCREW FLANGE More informationQuantity required : 2 |
||||||
|
7 |
873974-WASHER More informationQuantity required : 1 |
||||||
|
7 |
974335-WASHER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/1/6/img/68516.jpg)
8 |
SCREW BTR HEAD FRAISEE (5X16) OEM PIAGGIO COMMON A LA RANGE-825079 More informationQuantity required : 1 |
||||||
|
8 |
873906-NUT More informationQuantity required : 1 |
||||||
|
9 |
83016R-VALVE REGLAGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/3/3/img/67933.jpg)
10 |
SENSOR PRESSION D'HUILE OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER ET MOTO (PREVOIR ADAPTATEUR 99327 FOR 1200 GRISO, NORGE, STELVIO, SPORT)-1A024308R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/0/3/img/66703.jpg)
11 |
GASKET OF MANO OU DE VIDANGE OEM PIAGGIO COMMON A LA RANGE-486075 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/5/9/img/68859.jpg)
12 |
OIL FILTER MAXI SCOOTER OEM PIAGGIO 400-500 MP3, X8, X9, X10, BEVERLY/GILERA 500 NEXUS, FUOCO, GP800/APRILIA SCARABEO, ATLANTIC, 1200 CAPONORD, DORSODURO, SHIVER, SRV 850-1A024459R More informationQuantity required : 1 |
||||||
|
13 |
873612-BRACKET FILTER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/4/3/0/img/70430.jpg)
14 |
SCREW TH FLANGE (6X18) OEM PIAGGIO COMMON A LA RANGE-872432 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/1/7/img/68817.jpg)
15 |
FITTING/INSERT DE OIL FILTER OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 400-500 CC ET MOTO-GUZZI-829122 More informationQuantity required : 1 |
||||||
|
16 |
875358-CAP VID. OIL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/8/0/img/66180.jpg)
17 |
GASKET OF CAP DE VIDANGE (D24X16, 3X1, 5) OEM PIAGGIO 350 MP3, X10, BEVERLY/APRILIA 900 SHIVER, DORSODURO/MOTO-GUZZI V85/GASKET CANALISATION DE RADIATOR THREE-WHEELER APE DIESEL-287174 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/0/0/8/img/71008.jpg)
18 |
WASHER PLATE (12. 2X19X1) OEM PIAGGIO COMMON A LA RANGE-974290 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/6/2/img/70962.jpg)
19 |
O-RING OEM PIAGGIO COMMON A LA RANGE-969323 More informationQuantity required : 1 |
