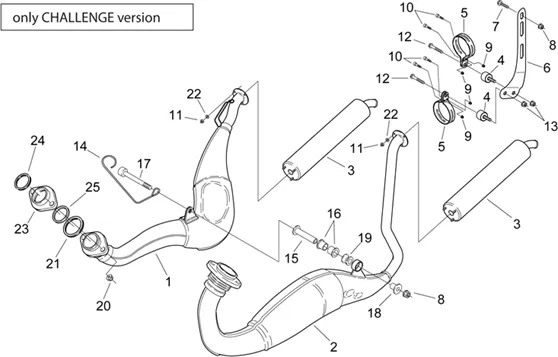

Chassis : 28.60 GROUPE ECHAPPEMENT - VERSION CHALLENGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/556/RS_250_1998-2003_28.60.PNG)
1 |
AP8119502 - POT DROITE, NOIR More informationQuantity required : 1 |
||||||
|
2 |
AP8119503 - POT GAUCHE, NOIR More informationQuantity required : 1 |
||||||
|
3 |
Silencieux |
||||||
|
4 |
AP8120335 - SILENTBLOC More informationQuantity required : 2 |
||||||
|
5 |
AP8119505 - COLLIER SILENCIEUX More informationQuantity required : 2 |
||||||
|
6 |
AP8134538 - PLAQ.SUP. SILENCIEUX; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/8/img/71948.jpg)
7 |
SCREW FLANGE TH (8X20) OEM PIAGGIO COMMON A LA RANGE-AP8152286 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/9/img/71959.jpg)
8 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M8) OEM PIAGGIO COMMON A LA RANGE-AP8152300 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/9/img/71839.jpg)
9 |
NUT AUTOBLOQUANT/NYLSTOP (M4) OEM PIAGGIO COMMON A LA RANGE-AP8150204 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/0/img/71910.jpg)
10 |
SCREW BTR (4X10) OEM PIAGGIO COMMON A LA RANGE-AP8152043 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/6/1/img/71861.JPG)
11 |
NUT HEXAGONAL AUTOFREINÉ M6-AP8150333 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
12 |
SCREW FLANGE TH (6X12) OEM PIAGGIO COMUUN A LA RANGE-AP8152277 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
13 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 2 |
||||||
|
14 |
Guide-câble renifl.; |
||||||
|
15 |
AP8134334 - SUPPORT POT D'ECHAPPEMENT; More informationQuantity required : 1 |
||||||
|
16 |
AP8120947-RUBBER SILENCER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/6/9/img/50869.jpg)
17 |
SCREW BTR (8X100) OEM PIAGGIO COMMON A LA RANGE-AP8150388 More informationQuantity required : 1 |
||||||
|
18 |
AP8221056-" BUSH EN " " T " " " More informationQuantity required : 1 |
||||||
|
19 |
AP8120948-RUBBER SILENCER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/5/8/2/2/img/145822.jpg)
20 |
NUT FLANGE M8 OEM PIAGGIO COMMON A LA RANGE-2B004511 More informationQuantity required : 4 |
||||||
|
20 |
NUT FLANGE M8 OEM PIAGGIO COMMON A LA RANGE-2B004511 More informationQuantity required : 4 |
||||||
|
21 |
AP8119356-GASKET FLANGE SILENCER D'ECHAPPEMENT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/3/img/71833.JPG)
22 |
WASHER PLATE (6. 4X12. 5) OEM PIAGGIO COMMON A LA RANGE-AP8150178 More informationQuantity required : 6 |
||||||
|
23 |
AP8106295 - BRIDE POT More informationQuantity required : 2 |
||||||
|
24 |
AP8119357 - JOINT BRIDE POT D'ECHAPPEMENT More informationQuantity required : 2 |
||||||
|
25 |
AP8119358 - JOINT BRIDE POT D'ECHAPPEMENT More informationQuantity required : 2 |
