Vehicle Exploded View - APRILIA RS 250 1998-2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

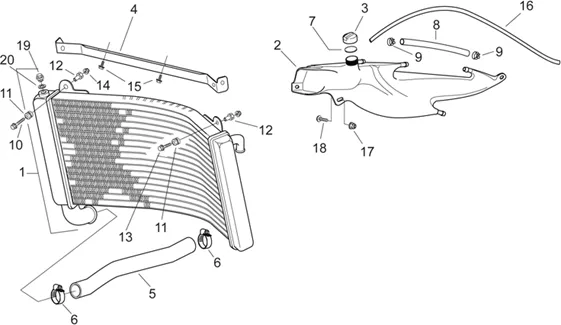

Chassis : 28.19 RADIATEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/556/RS_250_1998-2003_28.19.PNG)
1 |
AP8102634 - RADIATEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/2/1/9/img/45219.jpg)
2 |
EXPANSION TANK "PIAGGIO GENUINE PART" APRILIA 250 RS 1998>2003 -AP8102745- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/6/0/4/img/46604.jpg)
3 |
AP8120354 - BOUCHON More informationQuantity required : 1 |
||||||
|
4 |
AP8134461 - SUPPORT RADIATEUR SUPERIEUR; More informationQuantity required : 1 |
||||||
|
5 |
AP8120842 - TUBE POMPE RADIATEUR More informationQuantity required : 1 |
||||||
|
6 |
AP8101661 - COLLIER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/1/6/2/img/97162.jpg)
7 |
OIL TANK GASKET "PIAGGIO GENUINE PART" APRILIA 50 RX, SX, CLASSIC, CAPONORD, TUONO -AP8220191 More informationQuantity required : 1 |
||||||
|
8 |
Tuyau |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/7/img/71397.jpg)
9 |
CLAMP CLIC VERT (6. 6X11X1) OEM PIAGGIO COMMON A LA RANGE-AP8120446 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/3/img/71943.jpg)
10 |
SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE-AP8152280 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/4/img/71384.jpg)
11 |
RUBBER/SPACER OEM PIAGGIO COMMON A LA RANGE-AP8120030 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/3/0/img/46930.jpg)
12 |
BUSH EN T OEM APRILIA COMMON A LA RANGE-AP8121731 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
13 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
14 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
15 |
SCREW FLANGE TH (6X12) OEM PIAGGIO COMUUN A LA RANGE-AP8152277 More informationQuantity required : 2 |
||||||
|
16 |
AP8220402-HOSE More informationQuantity required : 1 |
||||||
|
17 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/3/img/71933.jpg)
18 |
SCREW FLANGE BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152246 More informationQuantity required : 1 |
||||||
|
19 |
AP8123929-CAP More informationQuantity required : 1 |
||||||
|
20 |
AP8123930 - RONDELLE; More informationQuantity required : 1 |
