Vehicle Exploded View - APRILIA RS 250 1998-2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

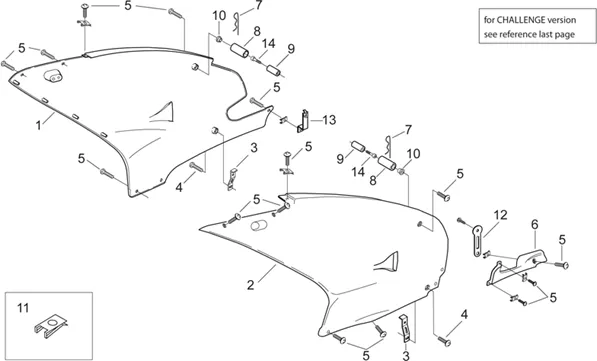

Chassis : 28.11 CARROSSERIE CENTRALE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/556/RS_250_1998-2003_28.11.PNG)
1 |
Flanc D, rouge t.; |
||||||
|
1 |
Flanc D, noir; |
||||||
|
1 |
AP8139780 - FLANC D, R/N; More informationQuantity required : 1 |
||||||
|
1 |
Flanc D, r/g; |
||||||
|
1 |
AP8149001 - FLANC D, R/N; More informationQuantity required : 1 |
||||||
|
1 |
Flanc D, jaune/gris; |
||||||
|
1 |
AP8149891 - FLANC D, NOIR D.; More informationQuantity required : 1 |
||||||
|
1 |
AP8168788 - FLANC D, NOIR; More informationQuantity required : 1 |
||||||
|
2 |
AP8138904 - FLANC G, ROUGE T.; More informationQuantity required : 1 |
||||||
|
2 |
AP8139383 - FLANC G, NOIR; More informationQuantity required : 1 |
||||||
|
2 |
AP8139781 - FLANC G, R/N; More informationQuantity required : 1 |
||||||
|
2 |
AP8139968 - FLANC G, R/G; More informationQuantity required : 1 |
||||||
|
2 |
Flanc G, r/n; |
||||||
|
2 |
Flanc G, jaune/gris; |
||||||
|
2 |
Flanc G, noir d.; |
||||||
|
2 |
Flanc G, noir; |
||||||
|
3 |
AP8134332 - PLAQUE INF. CAREN.; More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
4 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
5 |
SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298 More informationQuantity required : 14 |
||||||
|
6 |
Rall flanc gche rouge; |
||||||
|
6 |
Rall flanc gche noir; |
||||||
|
6 |
AP8139782 - RALL FLANC GCHE ROUGE; More informationQuantity required : 1 |
||||||
|
6 |
Rall.flanc gche grise; |
||||||
|
6 |
Rallo.flanc gche jaune; |
||||||
|
6 |
Rall flanc gche noir; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/3/4/8/img/55348.jpg)
7 |
GOUPILLE DE REAR WHEEL OEM APRILIA 50-125 RS 2005 <-AP8201287 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/6/2/7/img/46627.jpg)
8 |
AP8120699 - TUBE FIX. LAT. CAREN. More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/4/9/img/46949.jpg)
9 |
AP8121867 - DOUILLE SPECIALE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/1/img/71401.jpg)
10 |
NUT (M5) WITH INSERT RUBBER OEM PIAGGIO COMMON A LA RANGE DERBI, APRILIA ET MOTO-GUZZI-AP8120531 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
11 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 5 |
||||||
|
12 |
Plaq supp.inf.car gche; |
||||||
|
13 |
AP8134462 - PLAQ.SUP.INF.CAREN.D; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/8/img/71828.jpg)
14 |
SCREW BTR (6X25) OEM PIAGGIO COMMON A LA RANGE-AP8150165 More informationQuantity required : 2 |
