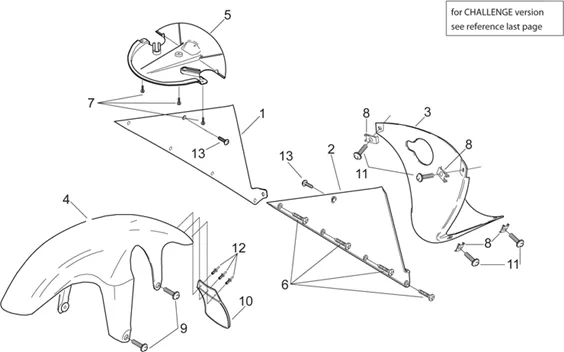

Vehicle Exploded View - APRILIA RS 250 1998-2003 APRILIA

Chassis : 28.09 CARROSSERIE AV. II
Carrosserie av. II
Search
AP8138898 - CARENAGE INT. D;

1
P2R reference P2R reference 49264
Maker reference Maker reference AP8138898

AP8138898 - CARENAGE INT. D;

More information

Quantity required : 1

AP8138899 - CARENAGE INT. G;

2
P2R reference P2R reference 49265
Maker reference Maker reference AP8138899

AP8138899 - CARENAGE INT. G;

More information

Quantity required : 1

Butée carénage;

3
P2R reference P2R reference
Maker reference Maker reference AP8131932

Butée carénage;

Garde-boue AV rouge t.;

4
P2R reference P2R reference
Maker reference Maker reference AP8126640

Garde-boue AV rouge t.;

Garde-boue AV noir;

4
P2R reference P2R reference
Maker reference Maker reference AP8126655

Garde-boue AV noir;

Garde-boue AV noir;

4
P2R reference P2R reference
Maker reference Maker reference AP8126731

Garde-boue AV noir;

Gard-b AV.ble.fum.;

4
P2R reference P2R reference
Maker reference Maker reference AP8126751

Gard-b AV.ble.fum.;

AP8126846 - G-BOUE AV.V.R. FLUO;

4
P2R reference P2R reference 47906
Maker reference Maker reference AP8126846

AP8126846 - G-BOUE AV.V.R. FLUO;

More information

Quantity required : 1

Gde-boue AV jaune citron;

4
P2R reference P2R reference
Maker reference Maker reference AP8126849

Gde-boue AV jaune citron;

AP8156068 - GARDE-BOUE AV NOIR;

4
P2R reference P2R reference 51174
Maker reference Maker reference AP8156068

AP8156068 - GARDE-BOUE AV NOIR;

More information

Quantity required : 1

AP8138941 - CONVOYEUR;

5
P2R reference P2R reference 49272
Maker reference Maker reference AP8138941

AP8138941 - CONVOYEUR;

More information

Quantity required : 1

SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413

6
P2R reference P2R reference 71876
Maker reference Maker reference AP8150413

SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413

More information

Quantity required : 8

SCREW FLANGE TH (6X12) OEM PIAGGIO COMUUN A LA RANGE-AP8152277

7
P2R reference P2R reference 71941
Maker reference Maker reference AP8152277

SCREW FLANGE TH (6X12) OEM PIAGGIO COMUUN A LA RANGE-AP8152277

More information

Quantity required : 3

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375

8
P2R reference P2R reference 71174
Maker reference Maker reference AP8102375

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375

More information

Quantity required : 6

SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298

9
P2R reference P2R reference 71957
Maker reference Maker reference AP8152298

SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298

More information

Quantity required : 4

Rallonge g-boue AV;

10
P2R reference P2R reference
Maker reference Maker reference AP8126631

Rallonge g-boue AV;

SCREW BTR DE FAIRING (5X12) OEM PIAGGIO COMMON A LA RANGE-2B014101

11
P2R reference P2R reference 214483
Maker reference Maker reference 2B014101

SCREW BTR DE FAIRING (5X12) OEM PIAGGIO COMMON A LA RANGE-2B014101

More information

Quantity required : 6

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302-

11
P2R reference P2R reference 71961
Maker reference Maker reference AP8152302
Replaced by référence Replaced by référence 214483

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302

More information

Quantity required : 6

AP8202058 - RIVET EN PLASTIQUE NOIR

12
P2R reference P2R reference 97161
Maker reference Maker reference AP8202058

AP8202058-RIVET EN PLASTIC BLACK

More information

Quantity required : 3

SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE MOTO-AP8152339

13
P2R reference P2R reference 71973
Maker reference Maker reference AP8152339

SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE MOTO-AP8152339

More information

Quantity required : 2
