Vehicle Exploded View - APRILIA RS 250 1998-2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

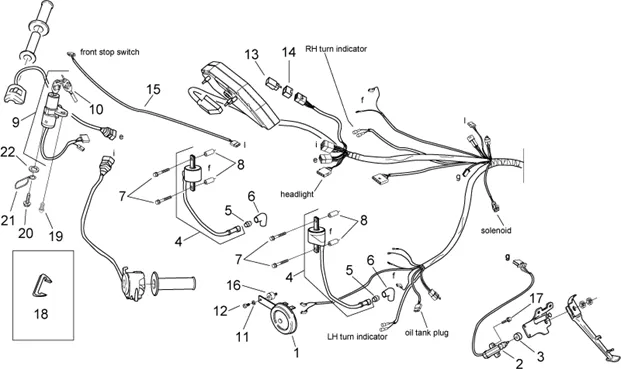

Chassis : 28.31 CIRCUIT ELECTRIQUE I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/556/RS_250_1998-2003_28.31.PNG)
1 |
Klaxon; |
||||||
|
2 |
AP8124054 - INTERRUPTEUR BEQUILLE; More informationQuantity required : 1 |
||||||
|
3 |
Guide interr béquille |
||||||
|
4 |
BOBINE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/1/4/4/9/img/61449.jpg)
5 |
AP8600384 - CAOUTCHOUC CACHE-FIL; More informationQuantity required : 2 |
||||||
|
6 |
AP8600383 - PIPE BOUGIE; More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/6/img/71946.jpg)
7 |
SCREW FLANGE TH (6X45) OEM PIAGGIO COMMON A LA RANGE-AP8152284 More informationQuantity required : 4 |
||||||
|
8 |
AP8121020-SPACER More informationQuantity required : 4 |
||||||
|
9 |
AP8124495 - BLOC DEMARREUR-BLOC; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/4/2/3/img/45423.jpg)
10 |
EBAUCHE DE CLE FRAISEE WITHOUT TRANSPONDEUR OEM APRILIA COMMON A LA RANGE-AP8104613 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/9/img/71809.jpg)
11 |
WASHER PLATE (8. 4X16X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150017 More informationQuantity required : 1 |
||||||
|
12 |
Vis |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/2/9/img/72329.jpg)
13 |
RELAIS 12V/30A OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA/MOTO-GUZZI-AP8224462 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/7/7/img/72277.jpg)
14 |
SANGLE RUBBER DE BLOC OEM PIAGGIO COMMON A LA RANGE-AP8220283 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/4/6/2/img/47462.jpg)
15 |
CONTACTEUR/INTERRUPTEUR DE STOP OEM APRILIA 750 DORSODURO 2010 > 2013, DORSODURO 1200 2010 > 2016, 1000-1100 TUONO 2002 > 2016-AP8124288 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/6/8/5/img/46685.jpg)
16 |
SILENTBLOC FOR EXHAUST "PIAGGIO GENUINE PART" APRILIA 50-125 RS, TUONO -AP8120910- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/0/img/71940.jpg)
17 |
SCREW FLANGE TH (5X20) OEM PIAGGIO COMMON A LA RANGE-AP8152274 More informationQuantity required : 2 |
||||||
|
18 |
AP8121309-SPRING CONNECTEURS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/6/6/img/71866.jpg)
19 |
SCREW A ARRACHEMENT/AUTO-CASSANTE BTR (8X15) OEM PIAGGIO COMMON A LA RANGE-AP8150349 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/9/img/71949.jpg)
20 |
SCREW FLANGE TH (8X25) OEM PIAGGIO COMMON A LA RANGE-AP8152287 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/6/img/71396.jpg)
21 |
GUIDE CABLE OEM PIAGGIO COMMON A LA RANGE-AP8120428 More informationQuantity required : 1 |
||||||
|
22 |
WASHER PLATE (8. 4X16X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150017 More informationQuantity required : 1 |
