Vehicle Exploded View - APRILIA RS 250 1998-2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

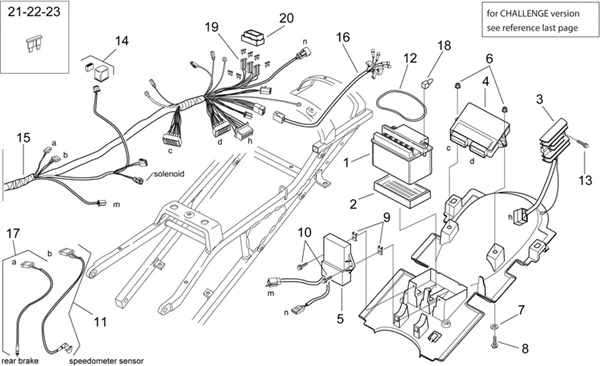

Chassis : 28.32 CIRCUIT ELECTRIQUE II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/556/RS_250_1998-2003_28.32.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/7/0/img/65970.jpg)
1 |
BATTERY 12V 4AH YB4L-B OEM PIAGGIO COMMON A LA RANGE-234390 More informationQuantity required : 1 |
||||||
2 |
AP8230535-BO? TIER BATTERY More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/8/9/4/img/45894.jpg)
3 |
VOLTAGE REGULATOR- "PIAGGIO GENUINE PART" APRILIA 125 RS, SX, RX, MX, CLASSIC, 650 PEGASO, 125 LEONARDO ROTAX, 125 SCARABEO ROTAX -AP8112906- More informationQuantity required : 1 |
||||||
|
4 |
AP8124347 - CENTRALE More informationQuantity required : 1 |
||||||
|
4 |
AP8124349 - CENTRALE More informationQuantity required : 1 |
||||||
|
5 |
AP8124050 - UNITE CDI; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
6 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/8/img/71808.jpg)
7 |
WASHER PLATE (6. 6X18X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150015 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
8 |
SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152279 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
9 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
10 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/6/7/img/71567.jpg)
11 |
SENSOR OF INSTRUMENT CLUSTER OEM PIAGGIO MOTO-GUZZI 750 V7 RACER 2009 >, NEVADA, BREVA/APRILIA 500 SCARABEO 2003 > 2006, 500 ATLANTIC 2001 > 2004, 250 RS, 1000 RSV-2, RSV-4, TUONO, FALCO-AP8124528 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/6/9/9/img/46699.jpg)
12 |
ELASTIC OEM APRILIA 250 RS 1998 > 2003-AP8120951 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/3/img/71943.jpg)
13 |
SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE-AP8152280 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/6/3/img/71563.jpg)
14 |
CENTRE CLIGNOTANTE OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER APRILIA ET MOTO 125 CC-AP8124235 More informationQuantity required : 1 |
||||||
|
15 |
AP8124633 - CABLAGE PRINCIPAL More informationQuantity required : 1 |
||||||
|
16 |
Câblage feu AR |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/1/img/71281.jpg)
17 |
CONTACTEUR LAMP STOP REAR OEM PIAGGIO 1000 CAPONORD, FUTURA, 1000 RSV-2, RSV-4, 750 SHIVER/MOTO-GUZZI 1100-1200 BREVA, GRISO, 1200 SPORT, STELVIO, 850-1200 NORGE, 940 BELLAGIO-AP8112996 More informationQuantity required : 1 |
||||||
|
18 |
Capuchon borne; |
||||||
|
19 |
AP8120754-RUBBER P-FUSIBLES More informationQuantity required : 3 |
||||||
|
20 |
AP8112942 - CAOUTCHOUC P-FUSIBLES More informationQuantity required : 1 |
||||||
|
21 |
CM225607-FUSIBLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/9/9/img/73399.jpg)
22 |
BLADE FUSE STANDARD 15A OEM PIAGGIO COMMON A LA RANGE-CM225715 More informationQuantity required : 1 |
||||||
|
23 |
495357 - FUSIBLE More informationQuantity required : 1 |
