Vehicle Exploded View - APRILIA RS 250 1998-2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

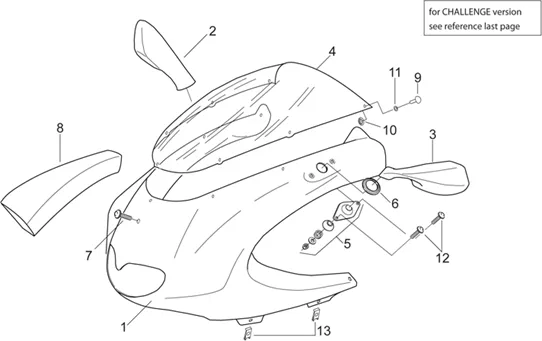

Chassis : 28.08 CARROSSERIE AV. I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/556/RS_250_1998-2003_28.08.PNG)
1 |
Avant carénage, bleu c.; |
||||||
|
1 |
Avant carénage, noir; |
||||||
|
1 |
Avant carénage, noir; |
||||||
|
1 |
Front carène bl.fum.; |
||||||
|
1 |
Avant carénage, noir; |
||||||
|
1 |
AP8149015 - AVANT CARENAGE, GRIS N; More informationQuantity required : 1 |
||||||
|
1 |
Devant carène noir/grise; |
||||||
|
1 |
Avant carénage, noir; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/1/9/7/img/45197.jpg)
2 |
RIGHT MIRROR OEM PIAGGIO 50-125-250 RS 1999 > 2010, 1000 RSV-2 2000 > 2003, FALCO 2000 > 2003-AP8102632 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/1/9/8/img/45198.jpg)
3 |
LEFT MIRROR OEM PIAGGIO 50-125-250 RS 1999 > 2010, 1000 RSV-2 2000 > 2003, FALCO 2000 > 2003-AP8102633 More informationQuantity required : 1 |
||||||
|
4 |
WINDSHIELD "PIAGGIO GENUINE PART" APRILIA 50-125-250 RS -AP8138916- More informationQuantity required : 1 |
||||||
|
4 |
AP8148663 - VITRE COUPOLE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/2/5/2/img/45252.jpg)
5 |
KIT MONTAGE MIRROR OEM PIAGGIO 50-125-250 RS 2000 >-AP8102909 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/1/5/1/img/45151.jpg)
6 |
CUVETTE ARTICULATION MIRROR OEM PIAGGIO 50-125-250 RS APRILIA 1999 >-AP8102341 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
7 |
SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298 More informationQuantity required : 1 |
||||||
|
8 |
AP8138942 - PRISE D'AIR More informationQuantity required : 1 |
||||||
|
9 |
Rivet anodisé nat. |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/8/img/71888.jpg)
10 |
WASHER ELASTIC (5) OEM PIAGGIO COMMON A TOUTE LA RANGE-AP8150450 More informationQuantity required : 7 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/4/img/71424.jpg)
11 |
O RING OF CANALISATION FUEL OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-AP8120965 More informationQuantity required : 7 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/3/img/71933.jpg)
12 |
SCREW FLANGE BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152246 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
13 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 4 |
