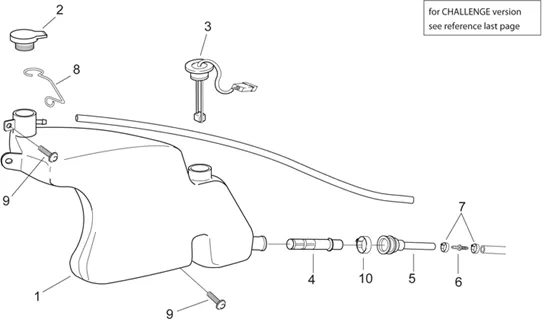

Chassis : 28.22 RÉSERVOIR HUILE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/556/RS_250_1998-2003_28.22.PNG)
1 |
AP8139670 - RESERVOIR HUILE, BLANC; More informationQuantity required : 1 |
||||||
|
2 |
AP8220154-CAP TANK OIL More informationQuantity required : 1 |
||||||
|
3 |
Indicateur réserve huile; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/0/img/71170.jpg)
4 |
OIL TANK FILTER "PIAGGIO GENUINE PART" COMMON TO THE RANGE APRILIA 50-125 CC -AP8102224 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/1/4/2/img/45142.jpg)
5 |
RUBBER/FITTING CANALISATION OIL OEM PIAGGIO COMMON A LA RANGE APRILIA 50-125-AP8102223 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/6/6/img/71166.jpg)
6 |
FITTING FUEL A DEUX VOIES OEM PIAGGIO COMMON A LA RANGE-AP8101944 More informationQuantity required : 1 |
||||||
|
7 |
AP8101770-CLAMP CLIC More informationQuantity required : 2 |
||||||
|
8 |
AP8102815-CROCHET CAP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/3/img/71933.jpg)
9 |
SCREW FLANGE BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152246 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/1/0/7/img/45107.jpg)
10 |
CLAMP CLIC (23, 5X8) OEM PIAGGIO COMMON A LA RANGE-AP8101743 More informationQuantity required : 1 |
