Vehicle Exploded View - APRILIA RS 250 1998-2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

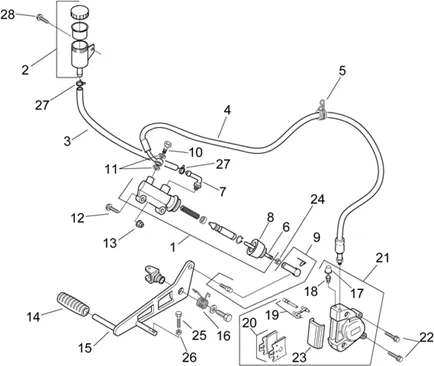

Chassis : 28.29 POMPE FREIN ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/556/RS_250_1998-2003_28.29.PNG)
1 |
AP8113359 - MA?T.CYL. FREIN AR More informationQuantity required : 1 |
||||||
|
2 |
AP8133873-TANK OIL FRENI More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/7/2/6/img/41726.jpg)
3 |
HOSE OIL DE BOCAL OF BRAKE OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA-890509 More informationQuantity required : 1 |
||||||
|
4 |
AP8113503 - TUYAU FREIN ARRIERE More informationQuantity required : 1 |
||||||
|
5 |
AP8121856-GUIDE-CABLE More informationQuantity required : 1 |
||||||
|
6 |
AP8121842-POUSSOIR CDE MAI-CYL. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/9/7/img/72197.jpg)
7 |
FITTING OF PUMP BRAKE REAR OEM APRILIA/MOTO-GUZZI COMMON A LA RANGE-AP8213057 More informationQuantity required : 1 |
||||||
|
8 |
SOUFFLET EN RUBBER ROD OF PUMP BRAKE REAR APRILIA/MOTO GUZZI-AP8113288 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/8/5/img/72185.jpg)
9 |
ROTULE DE GEAR LEVER (FILETAGE A RIGHT) OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI ET APRILIA-AP8210007 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/2/img/71282.jpg)
10 |
SCREW HOSE OIL (10MM) OEM PIAGGIO COMMON A LA RANGE-AP8113003 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
11 |
WASHER (10X14X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8113004 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/4/img/71944.jpg)
12 |
SCREW FLANGE TH (6X30) OEM PIAGGIO COMMON A LA RANGE-AP8152281 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
13 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/2/img/71422.jpg)
14 |
RUBBER BRAKE LEVER REAR OU SELECTEUR OEM PIAGGIO FOR MOTORCYCLE-GUZZI/APRILIA-AP8120912 More informationQuantity required : 1 |
||||||
|
15 |
AP8135516 - LEVIER DE FREIN AR; More informationQuantity required : 1 |
||||||
|
16 |
AP8121942-RES. RAP. LEVER BRAKE More informationQuantity required : 1 |
||||||
|
17 |
AP8113070-CAPUCHON RENIFLARD More informationQuantity required : 1 |
||||||
|
18 |
AP8133518-PURGE AIR More informationQuantity required : 1 |
||||||
|
19 |
AP8213198-STUD PINCE More informationQuantity required : 1 |
||||||
|
20 |
AP8213197 - PLAQUETTES-PAIRE More informationQuantity required : 1 |
||||||
|
21 |
Pince frein |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/9/img/71949.jpg)
22 |
SCREW FLANGE TH (8X25) OEM PIAGGIO COMMON A LA RANGE-AP8152287 More informationQuantity required : 2 |
||||||
|
23 |
AP8213199 - COUVERCLE PINCE FREIN More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/2/img/71912.jpg)
24 |
WASHER (6, 4X10X, 7) OEM PIAGGIO COMMON A LA RANGE-AP8152105 More informationQuantity required : 1 |
||||||
|
25 |
AP8150072-SCREW More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/2/img/71882.jpg)
26 |
NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8150430 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/2/3/0/img/45230.jpg)
27 |
CLAMP HOSE (D 9. 6) OEM PIAGGIO COMMON A LA RANGE-AP8102811 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/9/img/71939.jpg)
28 |
SCREW FLANGE TH (5X15) OEM PIAGGIO COMMON A LA RANGE-AP8152273 More informationQuantity required : 1 |
