Vehicle Exploded View - APRILIA RS 250 1998-2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

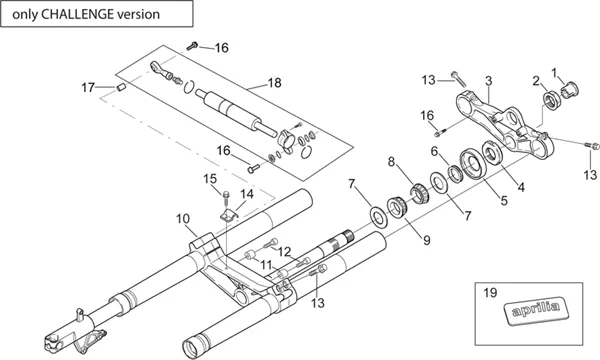

Chassis : 28.57 FOURCHE AV. - VERSION CHALLENGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/556/RS_250_1998-2003_28.57.PNG)
1 |
Couv. bouchon fourr.; |
||||||
|
2 |
AP8123243-CAP TUBE More informationQuantity required : 1 |
||||||
|
3 |
PIASTRA SUPERIORE STERZO |
||||||
|
4 |
AP8123734-BUSH More informationQuantity required : 1 |
||||||
|
5 |
AP8120542 - PARE-POUSSIERE More informationQuantity required : 1 |
||||||
|
6 |
AP8101272-ANNEAU BRACKET PROTECTOR-POUSSIERE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/3/1/img/71231.jpg)
7 |
BUSH ETANCHEITE COLONNE STEERING OEM PIAGGIO APRILIA 50-125 RX, SX, RS, TUONO, 750 DORSODURO, 600-650 PEGASO-AP8104597 More informationQuantity required : 2 |
||||||
|
8 |
AP8110010 - ROULEMENT ROUL.CON. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/6/6/img/71266.jpg)
9 |
BEARING DE STEERING OEM PIAGGIO APRILIA 50-125-250 RS 1995 >, 50-125 RX, SX 1995 >, 50-125 CLASSIC, 50-125 MX 2004 >, 125 PEGASO 1991 > 1994, 650 PEGASO 1992 > 2004-AP8110024 More informationQuantity required : 1 |
||||||
|
10 |
Base avec tube; |
||||||
|
11 |
AP8121338-BUSH BLOC. STEERING More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/3/5/img/66335.jpg)
12 |
SCREW BTR (8X16) OEM PIAGGIO COMMON A LA RANGE-319165 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/1/img/71951.jpg)
13 |
SCREW FLANGE TH (8X35) OEM PIAGGIO COMMON A LA RANGE-AP8152289 More informationQuantity required : 6 |
||||||
|
14 |
AP8134438 - PLA. FIX. TUBE FREIN; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/8/img/71938.jpg)
15 |
SCREW FLANGE TH (5X12) OEM PIAGGIO COMMON A LA RANGE-AP8152272 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/4/img/71944.jpg)
16 |
SCREW FLANGE TH (6X30) OEM PIAGGIO COMMON A LA RANGE-AP8152281 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/0/img/71430.jpg)
17 |
SPACER OEM PIAGGIO COMMON A LA RANGE-AP8121041 More informationQuantity required : 1 |
||||||
|
18 |
AP8705009 - AMORTISSEUR DE DIRECTION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/1/4/4/2/img/51442.jpg)
19 |
STICKER/STICKER/GRAPHIC " APRILIA " OEM PIAGGIO APRILIA 125-250 RS, TUONO, CAPONORD, RSV-2-AP8157770 More informationQuantity required : 1 |
