Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTANE STANDARD 1000 Porter Multitech E6 Entry Level 2017-2019
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

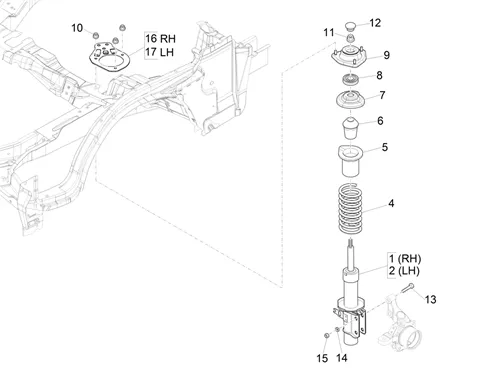

Suspensions - roues : 04.03 SUSPENSION AVANT - AMORTISSEUR/S
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/848/Porter_Multitech_E6_Entry_Level_2017-2019_04.03.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/1/6/0/2/img/121602.jpg)
1 |
SHOCK ABSORBER FRONT RIGHT OEM PIAGGIO PORTER MULTITECH 2010 > 2020-1E000767R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/1/6/0/3/img/121603.jpg)
2 |
SHOCK ABSORBER FRONT LEFT OEM PIAGGIO PORTER MULTIECH 2010 > 2020-1E000768R More informationQuantity required : 1 |
||||||
4 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/9/0/0/img/111900.jpg)
5 |
PROTECTOR-POUSSIERE SHOCK ABSORBER OEM PIAGGIO PORTER 2020 <-4855987Z01000 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/1/0/3/img/114103.jpg)
6 |
BUFFER DE FIN DE COURSE SHOCK ABSORBER OEM PIAGGIO PORTER < 2020-658155 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/0/2/8/img/115028.jpg)
7 |
LOGEMENT UPPER SHOCK ABSORBER FRONT OEM PIAGGIO PORTER 2020 <-D4847087Z02 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/4/2/1/img/158421.jpg)
8 |
BUSH BEARING SHOCK ABSORBER FRONT OEM PIAGGIO PORTER 2020 <-9004386101 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/3/2/6/img/117326.jpg)
9 |
RUBBER MOUNT UPPER SHOCK ABSORBER FRONT OEM PIAGGIO PORTER 1998 > 2020-B004342 More informationQuantity required : 2 |
||||||
|
10 |
9004179075000 - ECROU More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/4/7/5/img/110475.jpg)
11 |
NUT FLANGE (12X1, 25) OEM PIAGGIO COMMON A LA RANGE-264878 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/4/2/2/img/158422.jpg)
12 |
PROTECTOR POUSSIERE SHOCK ABSORBER FRONT OEM PIAGGIO PORTER 2020 <-4868487502 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/1/6/7/img/112167.jpg)
13 |
SCREW TH (12X55) OEM PIAGGIO COMMON A LA RANGE-1E003312 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/9/6/9/2/img/199692.JPG)
14 |
WASHER ELASTIC (12, 2X3, 6) OEM PIAGGIO PORTER COMMON A LA RANGE-CM289012 More informationQuantity required : 4 |
||||||
|
14 |
WASHER ELASTIC (12, 2X3, 6) OEM PIAGGIO PORTER COMMON A LA RANGE-CM289012 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/0/4/7/img/110047.jpg)
15 |
NUT (M12) OEM PIAGGIO COMMON A LA RANGE-D9411551200 More informationQuantity required : 4 |
||||||
|
16 |
B000044 PLATE RIGHT More informationQuantity required : 1 |
||||||
|
17 |
B000045 PLATE LEFT More informationQuantity required : 1 |
