Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTANE STANDARD 1000 Porter Multitech E6 Entry Level 2017-2019
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

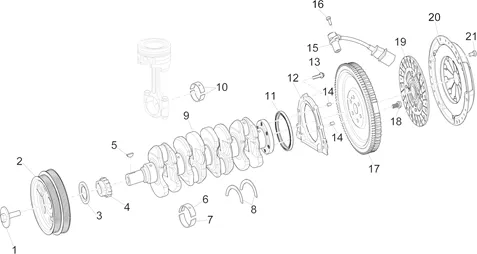

Moteur : 01.04 VILEBREQUIN
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/848/Porter_Multitech_E6_Entry_Level_2017-2019_01.04.png)
1 |
1A005655 BOLT More informationQuantity required : 1 |
||||||
|
2 |
PULLEY DE VILEBREQUIN OEM PIAGGIO PORTER MULTITECH E6 2015 > 2020-1A005654 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/4/7/1/3/img/134713.jpg)
3 |
OIL SEAL EMBIELLAGE COTE PULLEY OEM PIAGGIO PORTER MULTITECH E6 2015 > 2020, NP6 2021-1A005656 More informationQuantity required : 1 |
||||||
|
4 |
1A005657 SPROCKET More informationQuantity required : 1 |
||||||
|
5 |
1A005555 CLAVETTE More informationQuantity required : 1 |
||||||
|
6 |
1A005553 BANK OF PAROI MOITIE More informationQuantity required : 5 |
||||||
|
7 |
1A005552 BANK OF PAROI MOITIE More informationQuantity required : 5 |
||||||
|
8 |
1A005554 WASHER VILEBREQUIN More informationQuantity required : 2 |
||||||
|
9 |
1A005556 VILEBREQUIN More informationQuantity required : 1 |
||||||
|
10 |
1A005160 COUSSINET More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/4/7/8/4/img/134784.jpg)
11 |
OIL SEAL VILEBREQUIN (COTE CLUTCH) OEM PIAGGIO PORTER E6 2015 > 2020, NP6 2021 >-1A005484 More informationQuantity required : 1 |
||||||
|
12 |
1A005485 BRACKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/9/4/4/img/110944.JPG)
13 |
SCREW FLANGE TH (M6X25) OEM PIAGGIO COMMON A LA RANGE-B010073 More informationQuantity required : 6 |
||||||
|
14 |
1A005479 STUD More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/5/0/1/2/img/135012.jpg)
15 |
SENSOR IGNITION/PHASE (PMH) OEM PIAGGIO PORTER E6 2015 > 2020-1A005633 More informationQuantity required : 1 |
||||||
|
16 |
1A005569 SCREW FIX. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/5/0/6/7/img/135067.jpg)
17 |
VOLANT ENGINE OEM PIAGGIO PORTER 2015 > 2020-1A005159 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/4/5/9/4/img/134594.JPG)
18 |
SCREW OF VOLANT ENGINE OEM PIAGGIO PORTER E6 2015 > 2020/NP6 2021 >-1A005559 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/5/1/0/9/img/135109.jpg)
19 |
DISC CLUTCH OEM PIAGGIO PORTER E6 2015 > 2020-1A005148 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/5/1/1/1/img/135111.jpg)
20 |
MECANISME CLUTCH OEM PIAGGIO PORTER E6 2015 >-1A005149 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/4/5/3/6/img/134536.jpg)
21 |
SCREW MOUNTING CLUTCH OEM PIAGGIO PORTER MULTITECH 2015 > 2020-1A005560 More informationQuantity required : 6 |
All the exploded views of this vehicle
-
