Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTANE STANDARD 1000 Porter Multitech E6 Entry Level 2017-2019
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

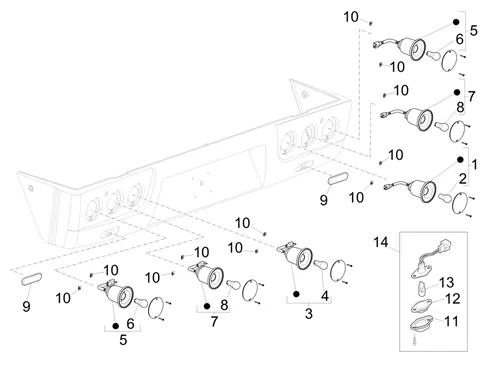

Circuit électrique : 06.03 ECLAIRAGES ARRIÈRE - CLIGNOTANTS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/848/Porter_Multitech_E6_Entry_Level_2017-2019_06.03.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/2/7/6/img/115276.jpg)
1 |
LAMP DE RECUL OEM PIAGGIO PORTER PICK-UP-613820 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/5/8/img/65758.jpg)
2 |
AMPOULE/LAMPE 12V 21W BA15S/R10 OEM PIAGGIO COMMON A LA RANGE-160654 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/1/0/0/img/117100.jpg)
3 |
LAMP UNIT/HEADLAMP/HEADLAMP ANTIBROUILLARD OEM PIAGGIO PORTER PICK-UP-B000970 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/5/3/0/img/111530.jpg)
4 |
AMPOULE/LAMPE 12V 21W BAW15S/PR21W OEM PIAGGIO COMMON A LA RANGE-B004243 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/4/7/5/img/116475.jpg)
5 |
LAMP STOP REAR OEM PIAGGIO PORTER E4-E6 2010 >-B000968 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/9/7/img/67897.jpg)
6 |
AMPOULE/LAMPE 12V 21/5W BAY15D/P21/5 RED OEM PIAGGIO COMMON A LA RANGE-640753 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/2/3/0/img/115230.jpg)
7 |
REAR RIGHT INDICATOR OU LEFT OEM PIAGGIO PORTER PICK-UP-B000969 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/3/6/9/img/113369.jpg)
8 |
AMPOULE/LAMPE 12V 21W BA15S ORANGE OEM PIAGGIO COMMON A LA RANGE-584004 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/5/3/img/67253.jpg)
9 |
CATADIOPTRE REAR OEM PIAGGIO COMMON A TOUTE LA RANGE-58233R5 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/3/5/0/img/111350.jpg)
10 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017401 More informationQuantity required : 12 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/0/7/2/img/112072.jpg)
11 |
COVER ECLAIRAGE DE PLATE OEM PIAGGIO PORTER 1992 > 2018, CARGO 2007 > 2017-8127887Z01000 More informationQuantity required : 1 |
||||||
12 |
8127187Z01000 TRANSPARENT More informationQuantity required : 1 |
||||||
|
13 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/0/3/img/73403.jpg)
14 |
LAMP ECLAIRAGE DE PLATE DE POLICE OEM PIAGGIO 250-300-400-500 MP3, PORTER, CARGO-D8127087Z01 More informationQuantity required : 2 |
