Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTANE STANDARD 1000 Porter Multitech E6 Entry Level 2017-2019
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

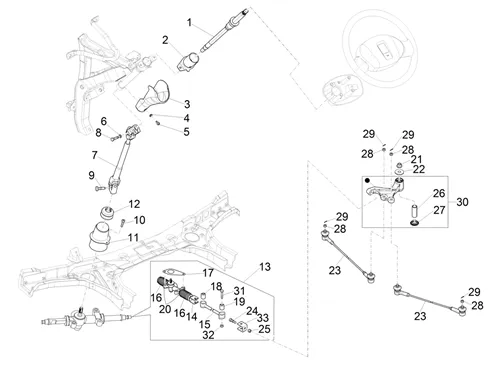

Guidon/direction : 03.06 ARTICULATION DE DIRECTION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/848/Porter_Multitech_E6_Entry_Level_2017-2019_03.06.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/2/8/5/img/110285.jpg)
4 |
WASHER NYLON STEERING OEM PIAGGIO PORTER 2020 <-D9004202038 More informationQuantity required : 1 |
||||||
5 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/6/7/0/img/73670.jpg)
6 |
WASHER PLATE (8. 4X20X1. 5) OEM PIAGGIO COMMON A LA RANGE-006032 More informationQuantity required : 1 |
||||||
|
7 |
B023437 ACCOUPLEMENT More informationQuantity required : 1 |
||||||
|
8 |
B000504 BOLT More informationQuantity required : 1 |
||||||
|
9 |
B000505 BOLT More informationQuantity required : 1 |
||||||
|
10 |
D9327056012 - VIS More informationQuantity required : 1 |
||||||
|
11 |
B000466 COIFFE More informationQuantity required : 1 |
||||||
|
12 |
B007654 CIRCLIPS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/2/7/7/3/img/122773.jpg)
13 |
CREMAILLERE DE STEERING OEM PIAGGIO PORTER 2020 <-B0041486 More informationQuantity required : 1 |
||||||
|
14 |
B004827 PLATE UNION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/1/8/3/img/116183.jpg)
15 |
BIELLETTE DE STEERING ENTRE CREMAILLERE ET HOUSING (LIVREE WITHOUT SILENT-BLOC B004680-B004679) OEM PIAGGIO PORTER 2020 <-B004678 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/0/8/3/img/116083.jpg)
16 |
SOUFFLET/COIFFE DE STEERING OEM PIAGGIO PORTER 2010 > 2020-B004820 More informationQuantity required : 2 |
||||||
|
17 |
B004694 COVER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/1/2/4/img/117124.jpg)
18 |
KIT RUBBER MOUNT BIELETTE STEERING (FOR B004678) OEM PIAGGIO PORTER 2020 <-1R000272 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/6/5/0/img/113650.jpg)
18 |
RUBBER MOUNT DE BIELETTE DE STEERING OEM PIAGGIO PORTER 2020 <-B004679 More informationQuantity required : 1 |
||||||
|
19 |
KIT RUBBER MOUNT BIELETTE STEERING (FOR B004678) OEM PIAGGIO PORTER 2020 <-1R000272 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/1/6/9/img/113169.jpg)
19 |
RUBBER MOUNT DE BIELETTE DE STEERING OEM PIAGGIO PORTER 2020 <-B004680 More informationQuantity required : 1 |
||||||
|
20 |
B004821 PISTON RING More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/2/6/8/img/112268.jpg)
21 |
NUT OEM PIAGGIO PORTER-9004178043000 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/3/8/9/img/111389.jpg)
22 |
WASHER DE ARM DE STEERING OEM PIAGGIO PORTER 2020 <-9004201638000 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/8/6/4/7/img/118647.jpg)
23 |
BIELLETTE DE STEERING WITH ROTULE OEM PIAGGIO PORTER 2020 <-652234 More informationQuantity required : 2 |
||||||
|
24 |
B004826 BOLT More informationQuantity required : 1 |
||||||
|
25 |
B004825 NUT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/1/0/0/4/img/121004.jpg)
26 |
BUSH HOUSING DE STEERING OEM PIAGGIO PORTER 1992 > 2020 9004389104000 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/4/0/9/img/113409.jpg)
27 |
9004210027000 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/2/0/8/img/151208.jpg)
28 |
NUT BIELLETTE STEERING OEM PIAGGIO PORTER 2020 <-D9004171003 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/4/4/8/img/110448.jpg)
29 |
GOUPILLE OEM PIAGGIO PORTER 1998 > 2020-261336 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/2/4/7/9/img/122479.jpg)
30 |
STEERING ARM "PIAGGIO GENUINE PART" PORTER -2624805 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/5/2/3/img/114523.jpg)
31 |
SCREW OF BIELETTE STEERING OEM PIAGGIO PORTER-B004823 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/1/0/2/img/112102.jpg)
32 |
NUT AUTOBLOQUANT/NYLSTOP (M14X1. 5) OEM PIAGGIO COMMON A LA RANGE-B004824 More informationQuantity required : 2 |
||||||
|
33 |
B004822 PLATE UNION More informationQuantity required : 1 |
All the exploded views of this vehicle
-
