Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTANE STANDARD 1000 Porter Multitech E6 Entry Level 2017-2019
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

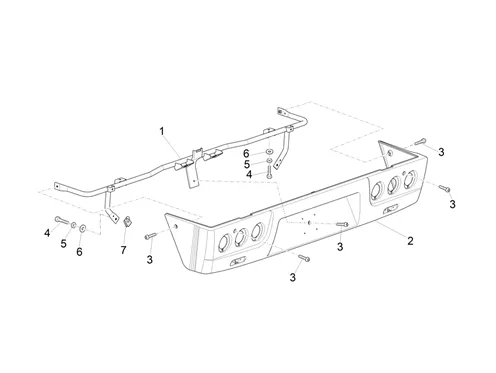

Châssis - parties plastiques - carrosseries : 02.31 COUVERCLE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/848/Porter_Multitech_E6_Entry_Level_2017-2019_02.31.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/0/8/4/7/img/120847.jpg)
1 |
BRACKET PROTECTOR CHOC REAR OEM PIAGGIO PORTER, CARGO-615191 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/0/5/6/4/img/120564.jpg)
2 |
PROTECTOR CHOC REAR OEM PIAGGIO PORTER 2010 > 2020-614833 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/7/img/73367.jpg)
3 |
SCREW TORX (6X22) HEAD BOMBEE OEM PIAGGIO COMMON A LA RANGE-CM179302 More informationQuantity required : 5 |
||||||
|
3 |
SCREW TORX (6X22) HEAD BOMBEE OEM PIAGGIO COMMON A LA RANGE-CM179302 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/0/img/65640.jpg)
4 |
SCREW TH (6X18) OEM PIAGGIO COMMUNA LA RANGE-031089 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
5 |
WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/2/img/65362.jpg)
6 |
WASHER PLATE (6. 4X13X1. 5) OEM PIAGGIO COMMON A LA RANGE-013777 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
7 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 2 |
