Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTANE STANDARD 1000 Porter Multitech E6 Entry Level 2017-2019
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

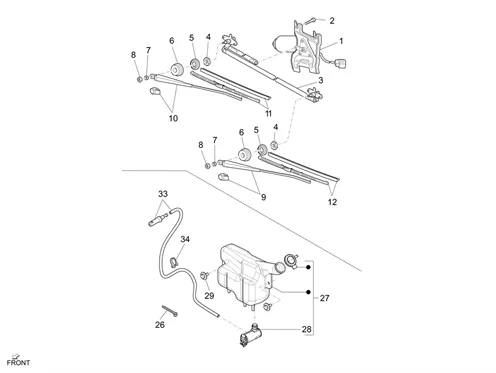

Circuit électrique : 06.12 ESSUIE-GLACES AVANT ET ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/848/Porter_Multitech_E6_Entry_Level_2017-2019_06.12.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/1/5/6/3/img/121563.jpg)
1 |
ENGINE ESSUIE GLACE OEM PIAGGIO PORTER 2010 > 2020-B006169 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/1/img/71821.jpg)
2 |
SCREW TH (6X30) OEM PIAGGIO COMMON A LA RANGE-AP8150073 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/0/2/2/6/img/120226.jpg)
3 |
MECANISME ESSUIE GLACE FRONT OEM PIAGGIO PORTER 2010 > 2020-615895 More informationQuantity required : 1 |
||||||
4 |
645436 NUT More informationQuantity required : 2 |
||||||
|
5 |
645435 GASKET More informationQuantity required : 2 |
||||||
|
6 |
645434 WASHER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/3/9/img/63839.jpg)
7 |
WASHER ELASTIC (8. 4X15X0. 5) OEM PIAGGIO COMMON A LA RANGE-006968 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/0/3/5/img/114035.jpg)
8 |
NUT BORGNE (M8) OEM PIAGGIO COMMON A LA RANGE-658842 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/7/5/9/img/117759.jpg)
9 |
ARM ESSUIE GLACE LEFT (417) OEM PIAGGIO PORTER 1998 > 2020-660704 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/9/4/4/img/117944.jpg)
10 |
ARM ESSUIE GLACE RIGHT (441, 5) OEM PIAGGIO PORTER 2020 <-660705 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/4/1/6/img/116416.jpg)
11 |
BALAI ESSUIE GLACE LEFT OEM PIAGGIO PORTER 2010 > 2020-615897 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/4/0/2/img/116402.jpg)
12 |
BALAI ESSUIE GLACE RIGHT OEM PIAGGIO PORTER 2010 >-615902 More informationQuantity required : 1 |
||||||
|
26 |
9004464484000 CLAMP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/2/9/0/7/img/142907.jpg)
28 |
B023318 - POMPE A EAU More informationQuantity required : 2 |
||||||
|
29 |
9004119260000 BOLT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/1/9/9/img/113199.jpg)
33 |
GICLEUR LAVE GLACE OEM PIAGGIO PORTER 2010 > 2020-B004936 More informationQuantity required : 1 |
||||||
|
34 |
D9004464072 CLAMP More informationQuantity required : 3 |
